Marathon Electric General Purpose Motor, 450 HP, 3 Ph, 60 Hz, 460 V, 1800 & 1800 RPM, 447/449T Frame, TEFC
Regular price
$75,731.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

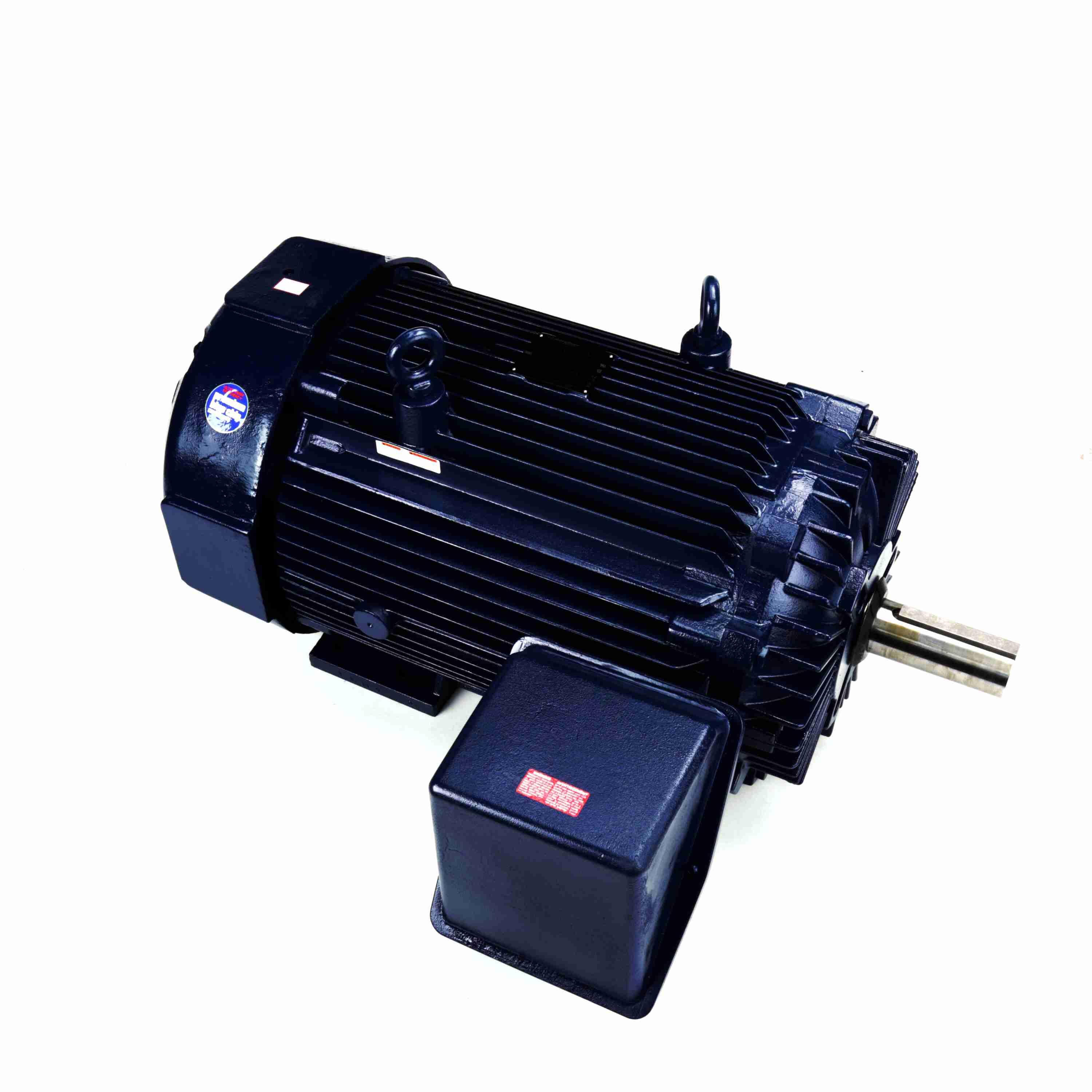

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 450 HP, 3 Ph, 60 Hz, 460 V, 1800 & 1800 RPM, 447/449T Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- C-Face Footed models are rated 60/50 Hz, same HP
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- F1 conduit box on Rigid Base, F3 on C-Face Footed (Rigid Base) motors
- Motor will accept a C-face kit
- Shaft slinger, Class H insulation
Specifications
| Performance & Electrical | |
| Power | 450 HP |
| Power (dual rating) | 450 HP |
| Power | 340.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1785 RPM |
| Speed (dual) | 1785 RPM |
| Full-load current | 515.0 A |
| Current (dual) | 515.0 A |
| Nominal efficiency | 96.5% |
| Power factor | 85% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | .0056 Ω |
| Frame & Mechanical | |
| Frame | 447/449T |
| Frame size | 449 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Frame length | 28.75 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | H |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 3.375 in |
| Shaft extension | 8.75 in |
| Shaft type | T |
| C dimension | 56.71 in |
| Drive-end bearing | 6319 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6318 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7300 |
| Outline drawing | SS517520A-2875 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 66.00 × 46.00 × 29.40 in |
| Weight | 3,645.00 lb |
| Identification | |
| Manufacturer part / model | 449TTFS6065 |
| Catalog number | E292 |
| UPC | 722856018618 |
| Product line | XRI® |
| Country of origin | United States of America |
| HTS / tariff code | 8501.53.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
