Marathon Electric Crusher Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1200 & 1000 RPM, 447T Frame, TEFC
Regular price
$38,635.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

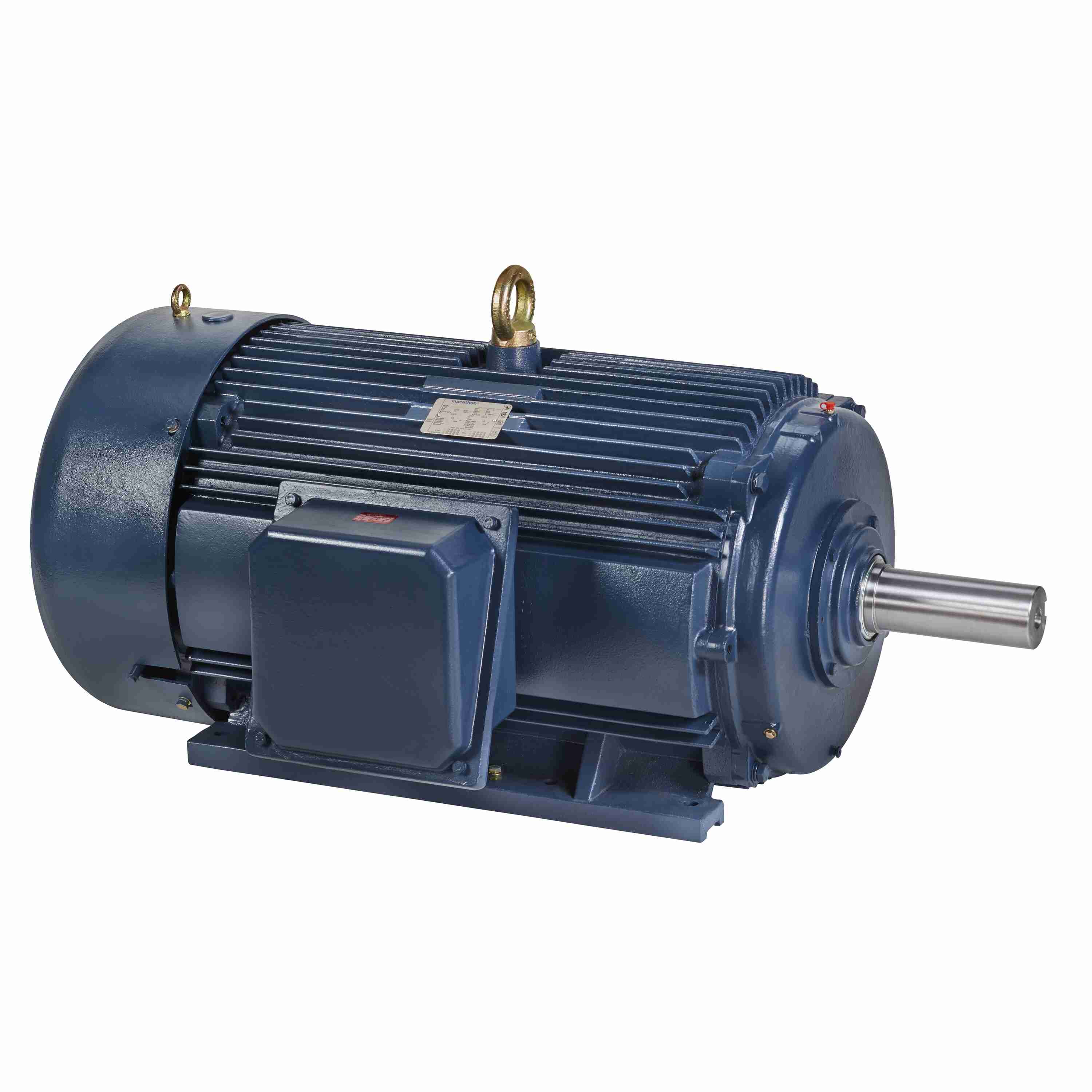

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crusher Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1200 & 1000 RPM, 447T Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Cast iron frame and brackets
- Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specifications
| Performance & Electrical | |
| Power | 150 HP |
| Power (dual rating) | 150 & 125 HP |
| Power | 112.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1190 RPM |
| Speed (dual) | 1190 & 990 RPM |
| Full-load current | 170.0 A |
| Current (dual) | 170 & 172 A |
| Nominal efficiency | 95.8% |
| Power factor | 87% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | C |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Part Wdg Start & Wye Start Delta Run Or Inverter |
| Main winding resistance | .022 Ω |
| Frame & Mechanical | |
| Frame | 447T |
| Frame size | 447 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 3.375 in |
| Shaft extension | 8.5 in |
| Shaft type | T |
| C dimension | 50.78 in |
| Drive-end bearing | NU319 |
| Drive-end bearing type | Roller |
| Opp. drive-end bearing | 6317 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7300BH |
| Outline drawing | SS620287-447T |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 59.00 × 35.00 × 31.00 in |
| Weight | 2,569.00 lb |
| Identification | |
| Manufacturer part / model | 447TTFC6683 |
| Catalog number | Y854A |
| UPC | 722856055170 |
| Product line | Blue Chip® XRI® |
| Country of origin | China |
| HTS / tariff code | 8501.53.4080 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
