Marathon Electric Crusher Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 445T Frame, TEFC
Regular price
$32,610.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

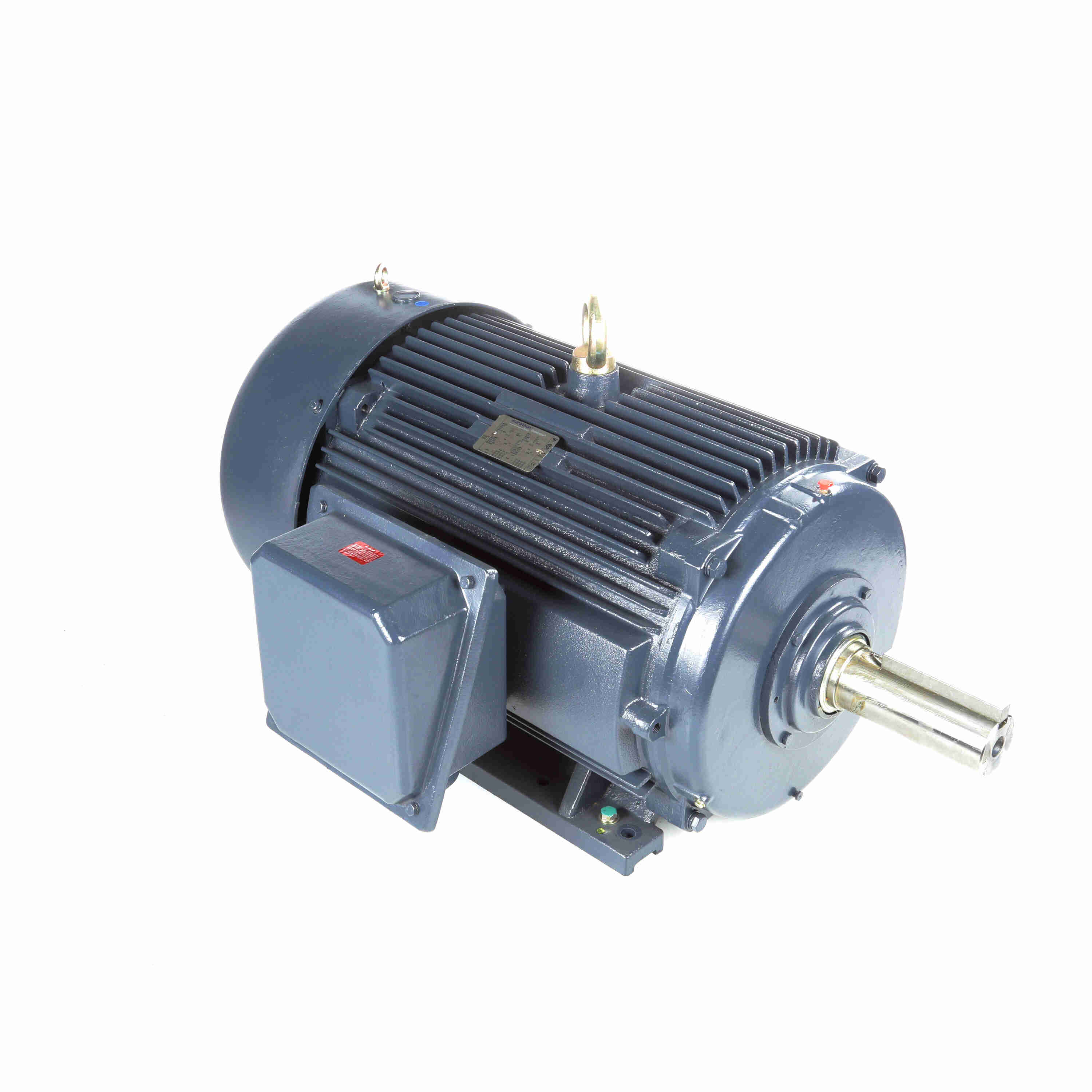

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crusher Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 445T Frame, TEFC
Features
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- NEMA Design C 4140 Shaft Material
- Roller Bearing on Drive End for belted loads
- 80C rise at rated load
- Class F insulation
- Inpro® Smart Ring, rotating shaft seals on each end of shaft
- Internal and external epoxy finish
- Brass drain and breatherϴ Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specifications
| Performance & Electrical | |
| Power | 150 HP |
| Power (dual rating) | 150 & 125 HP |
| Power | 112.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1786 RPM |
| Speed (dual) | 1786 & 1486 RPM |
| Full-load current | 165.0 A |
| Current (dual) | 165 & 168 A |
| Nominal efficiency | 95.8% |
| Power factor | 88% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | C |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Part Wdg Start & Wye Start Delta Run Or Inverter |
| Main winding resistance | .03 Ω |
| Frame & Mechanical | |
| Frame | 445T |
| Frame size | 445 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 3.375 in |
| Shaft extension | 8.5 in |
| Shaft type | T |
| C dimension | 50.78 in |
| Drive-end bearing | NU319 |
| Drive-end bearing type | Roller |
| Opp. drive-end bearing | 6317 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7300BH |
| Outline drawing | SS620677-445T |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 54.00 × 35.00 × 31.00 in |
| Weight | 2,200.00 lb |
| Identification | |
| Manufacturer part / model | 445TTFC6633 |
| Catalog number | Y826B |
| UPC | 722856055101 |
| Product line | Blue Chip® XRI® |
| Country of origin | China |
| HTS / tariff code | 8501.53.4080 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
