Marathon Electric Fire Pump Motor, 200 HP, 3 Ph, 50 Hz, 415 V, 3000 RPM, 444TS Frame, DP
Regular price
$21,337.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

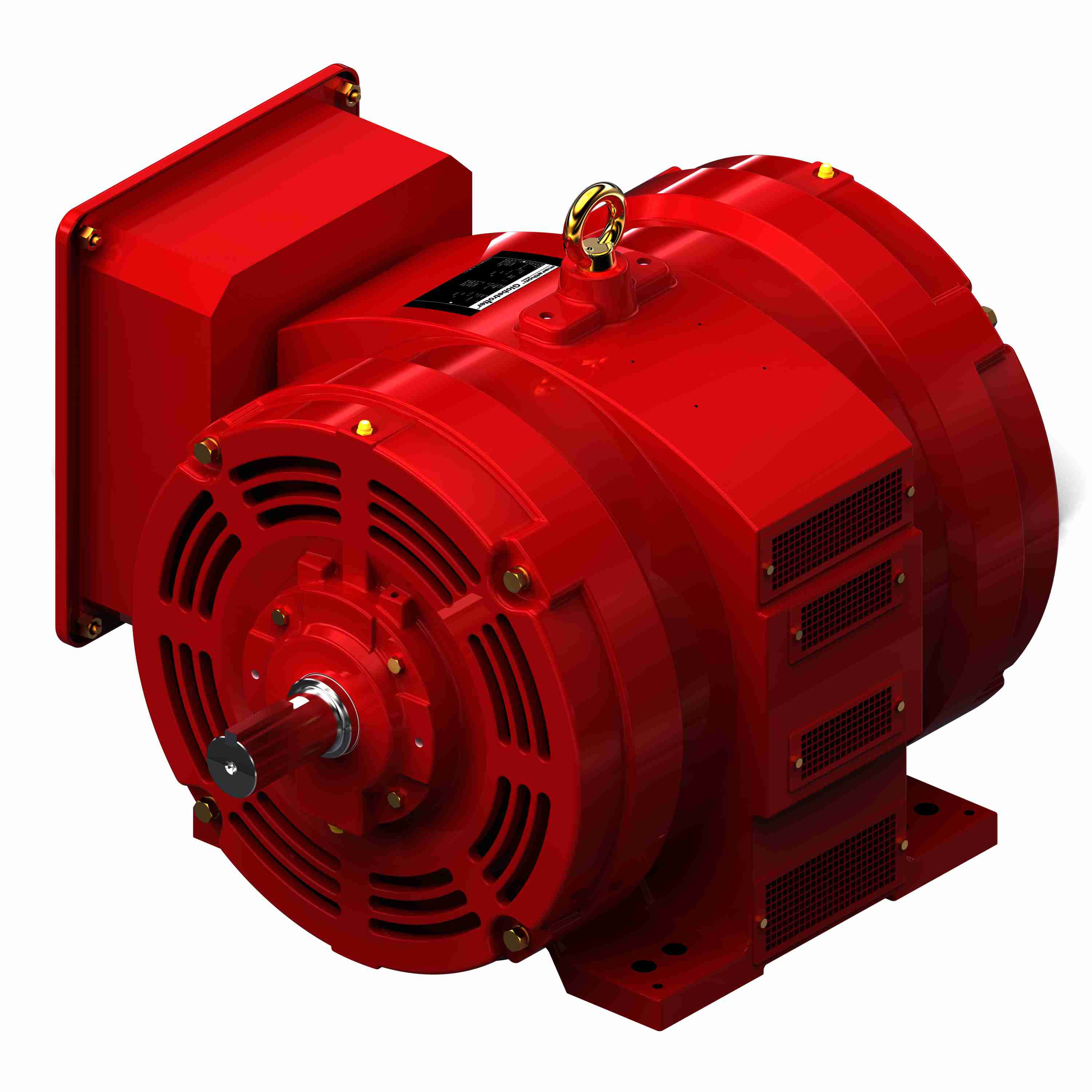

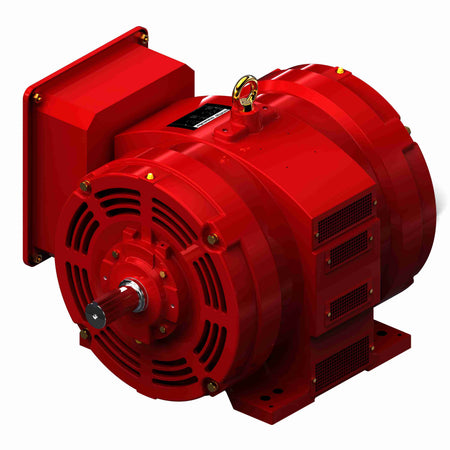

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Fire Pump Motor, 200 HP, 3 Ph, 50 Hz, 415 V, 3000 RPM, 444TS Frame, DP
Features
- IP-22 cast iron, Meets or exceeds NEMA Premium®* efficiencies, NEMA Premium models are in compliance with EISA2007
- Class F Insulation System, NEMA® design B, code G or less
- Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
- Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start
- Red paint, Bearing Caps both ends, Grease Fittings with pipe plugs, Modifications and Kits are available
- 50°C Ambient, 1.15SF Sine Wave Power Only
- UL file EX5190, CSA file LR2025 and CE mark
Specifications
| Performance & Electrical | |
| Power | 200 HP |
| Power (dual rating) | 200 HP |
| Power | 149.0 kW |
| Voltage | 415 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 2974 RPM |
| Speed (dual) | 2974 RPM |
| Full-load current | 242.0 A |
| Current (dual) | 242.0 A |
| Nominal efficiency | 94.2% |
| Power factor | 90.9% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | F |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Part Wdg Start & Wye Start Delta Run |
| Main winding resistance | .038 Ω |
| Frame & Mechanical | |
| Frame | 444TS |
| Frame size | 444 |
| Frame suffix | TS |
| Frame material | Cast Iron |
| Enclosure | Drip Proof |
| IP rating | IP23 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 50°C |
| Shaft & Bearings | |
| Shaft diameter | 2.375 in |
| Shaft type | TS |
| Drive-end bearing | 6314 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6314 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Listed |
| Connection drawing | EE7300BH |
| Outline drawing | SS620991 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 56.00 × 46.00 × 34.00 in |
| Weight | 1,425.00 lb |
| Identification | |
| Manufacturer part / model | 444TSTDCD4005 |
| Catalog number | U1436 |
| UPC | 722856212900 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
