Marathon Electric General Purpose Motor, 125 HP, 3 Ph, 60 Hz, 575 V, 1800 & 1800 RPM, 405T Frame, DP
Regular price
$12,733.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

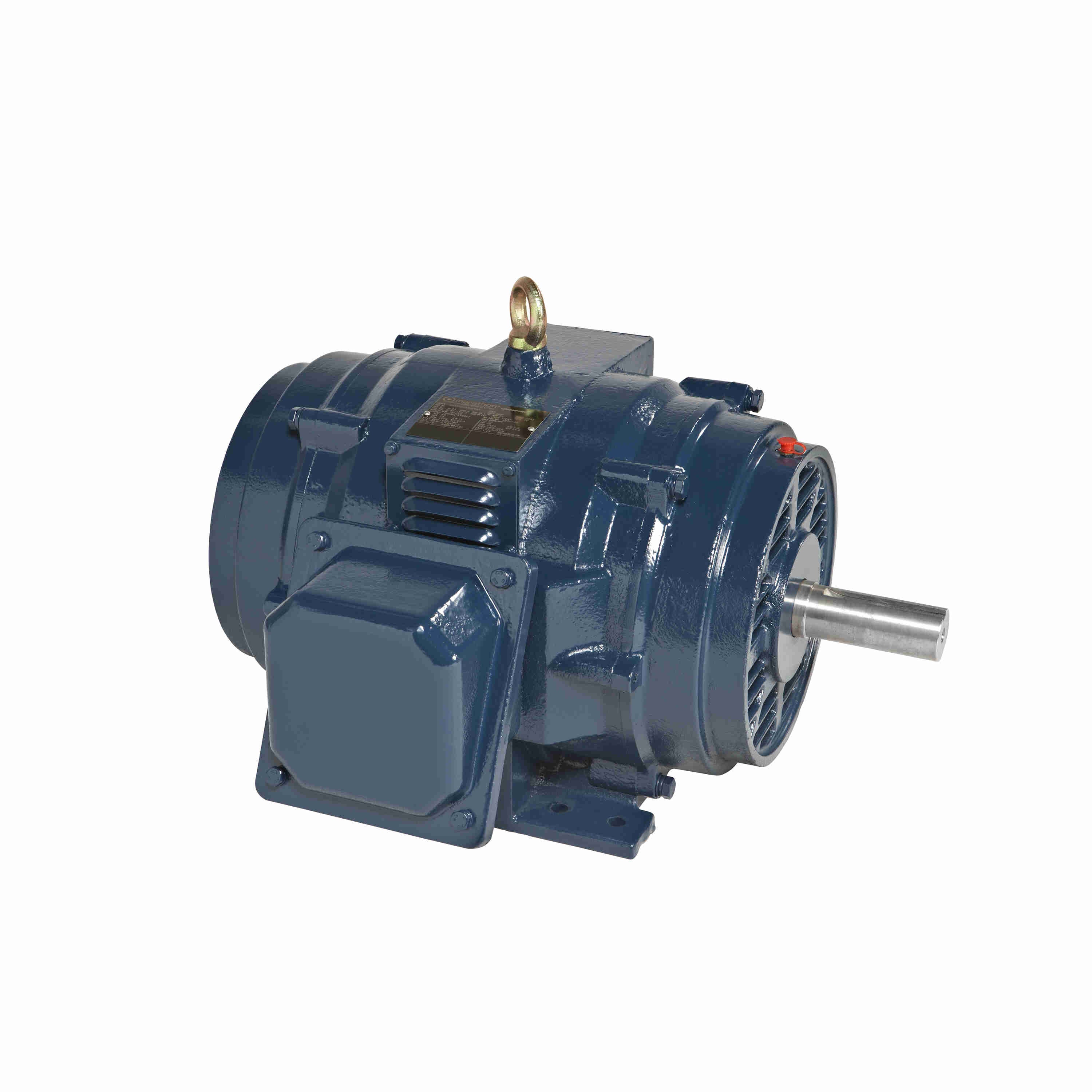

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 125 HP, 3 Ph, 60 Hz, 575 V, 1800 & 1800 RPM, 405T Frame, DP
Features
- Meets or exceeds NEMA Premium® efficiencies
- Inverter duty 10:1 variable torque and 2:1 constant torque
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- Class F insulation
- Standard assembly F1, reversible to F2 assembly
- Dual frame mounting holes
Specifications
| Performance & Electrical | |
| Power | 125 HP |
| Power (dual rating) | 125 HP |
| Power | 93.0 kW |
| Voltage | 575 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1785 RPM |
| Speed (dual) | 1785 RPM |
| Full-load current | 113.0 A |
| Current (dual) | 113.0 A |
| Nominal efficiency | 95.4% |
| Power factor | 86.5% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Y START D RUN OR INV |
| Main winding resistance | .044 Ω |
| Frame & Mechanical | |
| Frame | 405T |
| Frame size | 405 |
| Frame suffix | T |
| Frame material | CAST IRON |
| Frame length | 54 in |
| Enclosure | DP |
| IP rating | IP22 |
| Insulation class | F2 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 2.875 in |
| Shaft extension | 7.25 in |
| Shaft type | T |
| C dimension | 38.78 in |
| Drive-end bearing | 6316 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6315 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | V - LI,ME-INS,CONST UL REC |
| Connection drawing | EE7340 |
| Outline drawing | SS620754-200 |
| Dimensions & Weight | |
| Weight | 591.00 kg |
| Identification | |
| Manufacturer part / model | 405TTDCD6030 |
| Catalog number | GT0149 |
| UPC | 722856181244 |
| Product line | Globetrotter® |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
