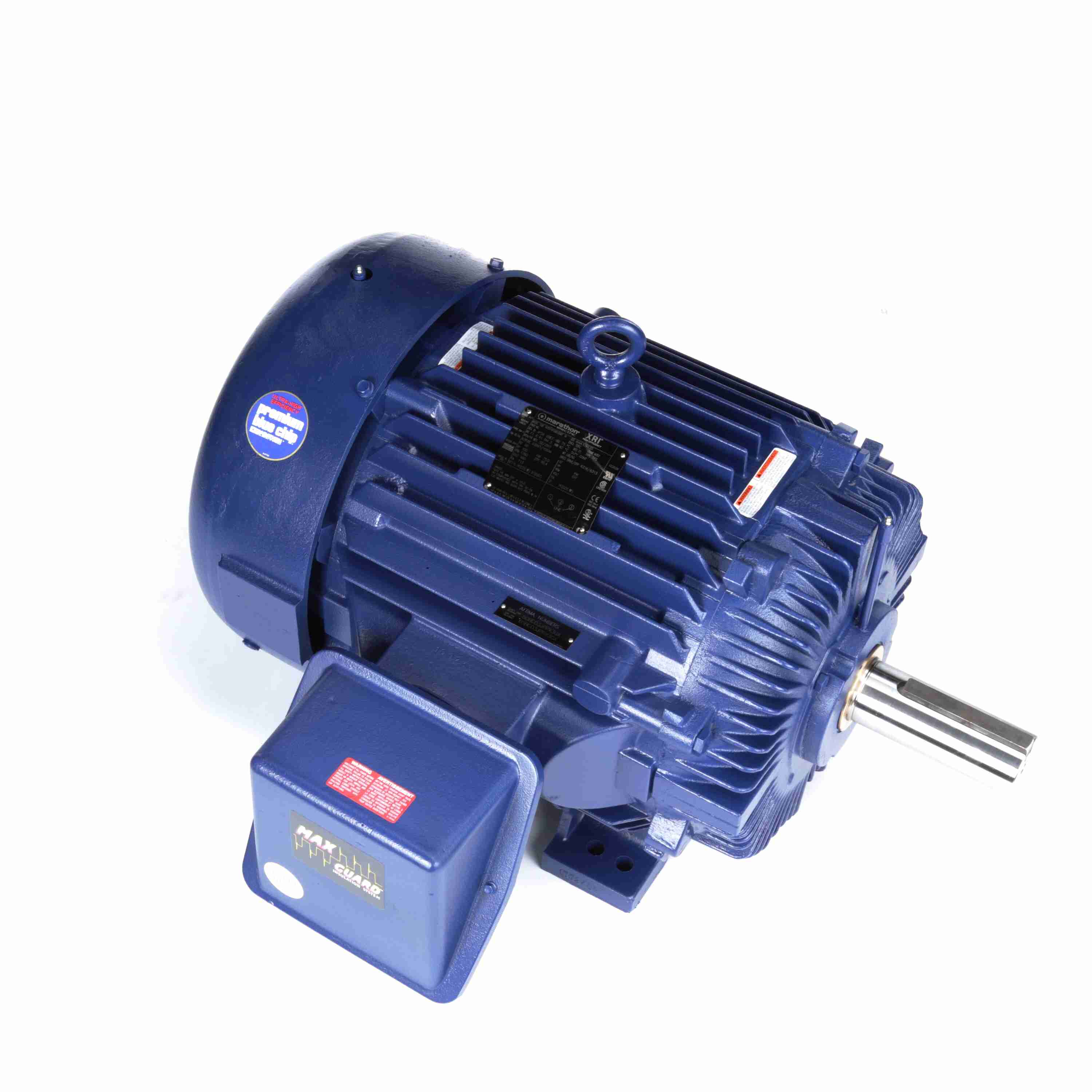

Marathon Electric Severe Duty Motor, 60 HP, 3 Ph, 60 Hz, 460 V, 900 RPM, 405T Frame, TEFC
Regular price
$31,567.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Severe Duty Motor, 60 HP, 3 Ph, 60 Hz, 460 V, 900 RPM, 405T Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Meets IEEE-841 standard for severe duty applications
- Constant Torque speed range is listed in CT SPEED RANGE column
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Inpro/Seal® VBX® bearing isolators on drive end shaft extension TENV and on both ends of TEFC
- Provisions to add stub shaft for an encoder (182T-449T, TEFC only)
- Internal and external epoxy finish
- MAX GUARD® Class F insulation system
Specifications
| Performance & Electrical | |
| Power | 60 HP |
| Power (dual rating) | 60 HP |
| Power | 45.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 890 RPM |
| Speed (dual) | 890 RPM |
| Full-load current | 82.0 A |
| Current (dual) | 82.0 A |
| Nominal efficiency | 93% |
| Power factor | 74% |
| Service factor | 1.15 |
| Number of poles | 8 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | .113 Ω |
| Frame & Mechanical | |
| Frame | 405T |
| Frame size | 405 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Frame length | 16.75 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP56 |
| Insulation class | F |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 2.875 in |
| Shaft extension | 7.25 in |
| Shaft type | T |
| C dimension | 37.14 in |
| Drive-end bearing | 6316 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6313 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Hazardous location | DIVISION 2 T2B |
| Connection drawing | A-EE7300 |
| Outline drawing | B-SS508591-1675 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 44.88 × 39.25 × 28.59 in |
| Weight | 1,328.00 lb |
| Identification | |
| Manufacturer part / model | 405THFS19101 |
| Catalog number | W590 |
| UPC | 722856021649 |
| Product line | XRI®-841 |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.8040 |
| Substitute part | 405THFCD19101 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
