Marathon Electric Fire Pump Motor, 125 & 100 HP, 3 Ph, 60 & 50 Hz, 460 & 380-400 V, 3600 & 3000 RPM, 404TS Frame, DP
Regular price
$11,466.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

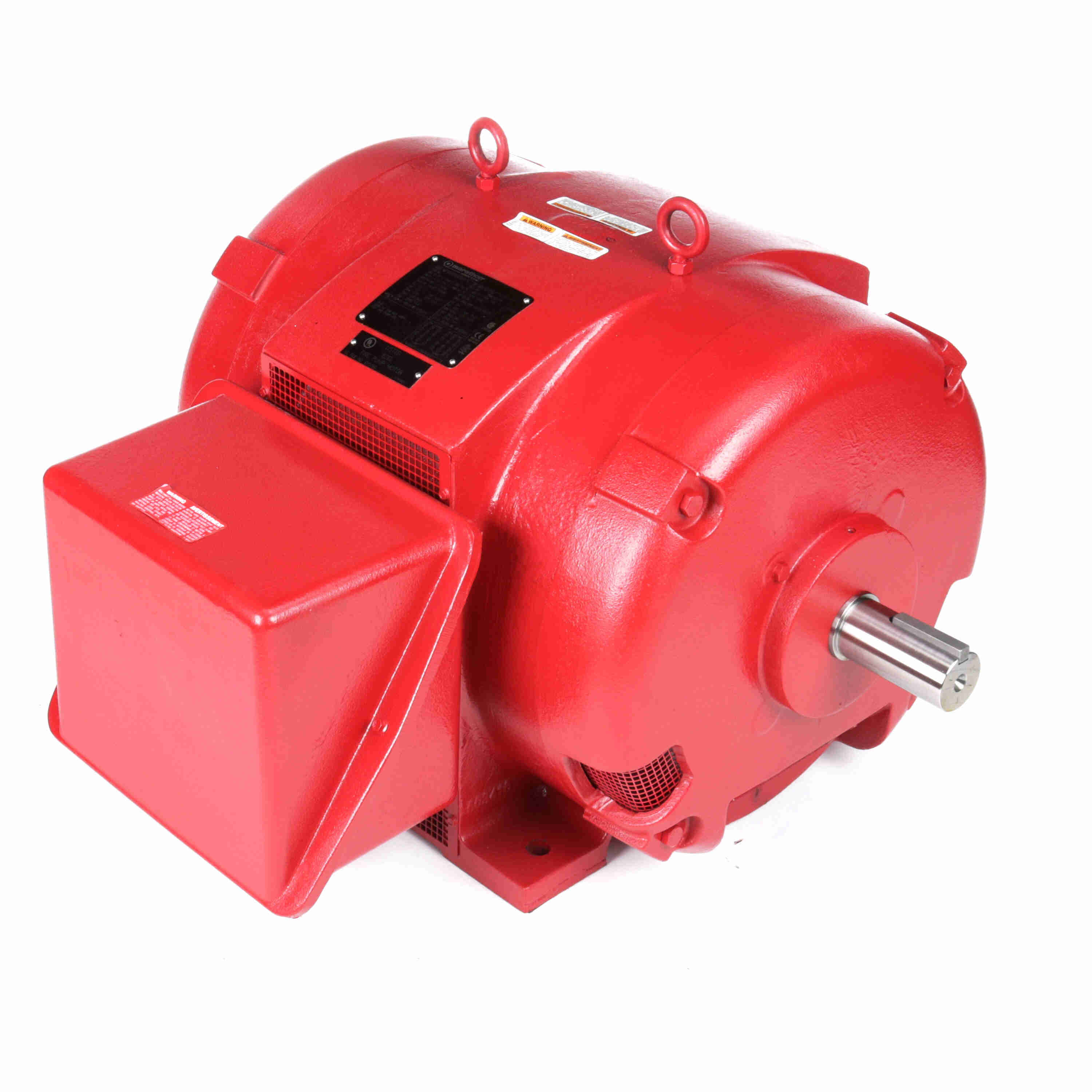

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Fire Pump Motor, 125 & 100 HP, 3 Ph, 60 & 50 Hz, 460 & 380-400 V, 3600 & 3000 RPM, 404TS Frame, DP
Features
- Designed for use on pumps for fire pump duty
- UL file EX5190, CSA file LR2025 and CE mark
- 50°C ambient
- Red paint on 25 HP through 200 HP
- NEMA Design B, Code G or less
- Will accept C-Face kits.
- Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start
- Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Specifications
| Performance & Electrical | |
| Power | 125 HP |
| Power (dual rating) | 125 & 100 HP |
| Power | 93.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3575 RPM |
| Speed (dual) | 3575 & 2975 RPM |
| Full-load current | 139.0 A |
| Current (dual) | 139 & 135-130 A |
| Nominal efficiency | 93.6% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | F |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Part Wdg Start & Wye Start Delta Run |
| Main winding resistance | .07 Ω |
| Frame & Mechanical | |
| Frame | 404TS |
| Frame size | 404 |
| Frame suffix | TS |
| Frame material | Cast Iron |
| Frame length | 19.68 in |
| Enclosure | Drip Proof |
| IP rating | IP23 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 50°C |
| Shaft & Bearings | |
| Shaft diameter | 2.125 in |
| Shaft extension | 4.25 in |
| Shaft type | TS |
| C dimension | 33.86 in |
| Drive-end bearing | 6313 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6313 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Listed |
| Connection drawing | EE7300BH |
| Outline drawing | SS620752-404TS |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 42.12 × 35.03 × 32.67 in |
| Weight | 1,165.00 lb |
| Identification | |
| Manufacturer part / model | 404TSTDCD4017 |
| Catalog number | U530A |
| UPC | 722856067838 |
| Country of origin | China |
| Substitute part | 404TSTDCD4018 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
