469099 - Dodge - 3B5V70-B SHEAVE
Regular price
$146.77 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

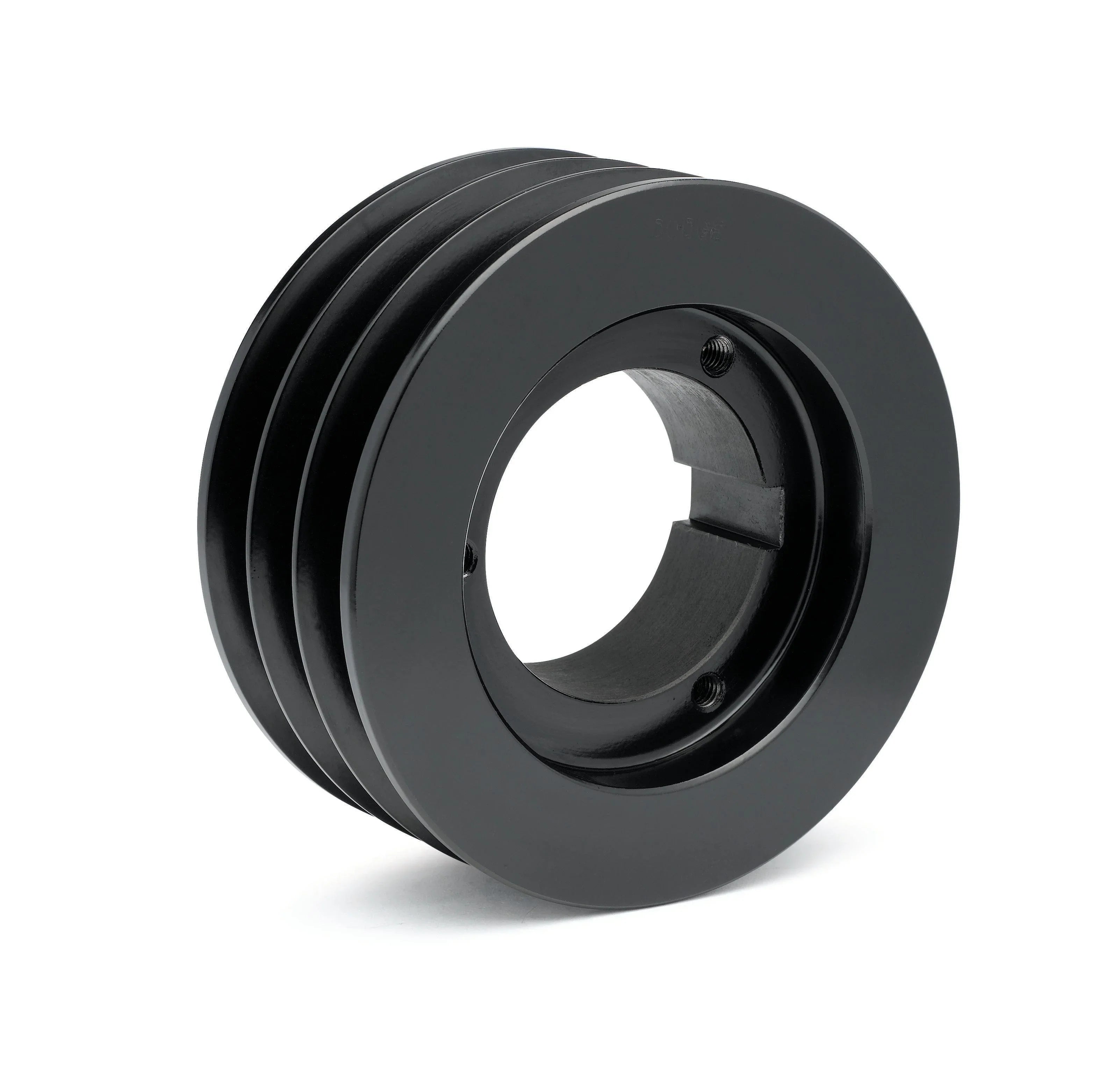

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469099 - Dodge - 3B5V70-B SHEAVE
3B5V70-B SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469099},{CR=3B5V70},{OUTS=7.28},{DATUMA=6.60},{DATUMB=7.00},{PITCH=7.10},{H=0.156250},{TYPE=3B},{B=B},{WT=11.5},{F=2.43750},{L=1.9375},{E=0.531250} |
| Construction Type | Block |
| Datum Diameter | 7.2800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 3.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 7.2800 |
