469087 - Dodge - 3B5V46-B SHEAVE
Regular price
$98.13 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

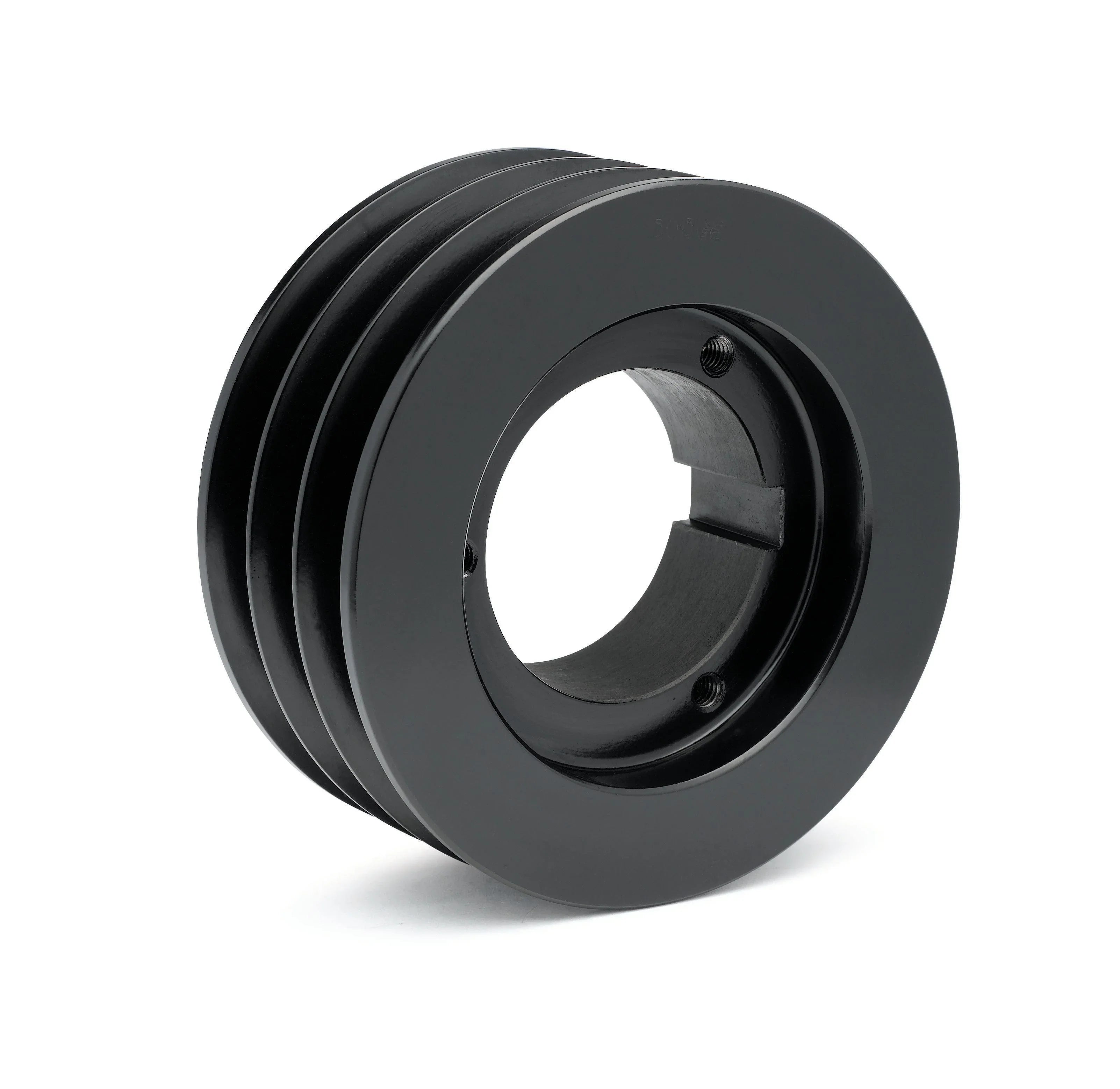

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469087 - Dodge - 3B5V46-B SHEAVE
3B5V46-B SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469087},{CR=3B5V46},{OUTS=4.88},{DATUMA=4.20},{DATUMB=4.60},{PITCH=4.70},{H=0.750000},{TYPE=5B},{B=B},{WT=4.9},{F=2.43750},{L=1.9375},{E=1.187500} |
| Construction Type | Block |
| Datum Diameter | 4.8800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 3.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 4.8800 |
