Marathon Electric Severe Duty Motor, 50 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 365T Frame, TEFC
Regular price
$14,336.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

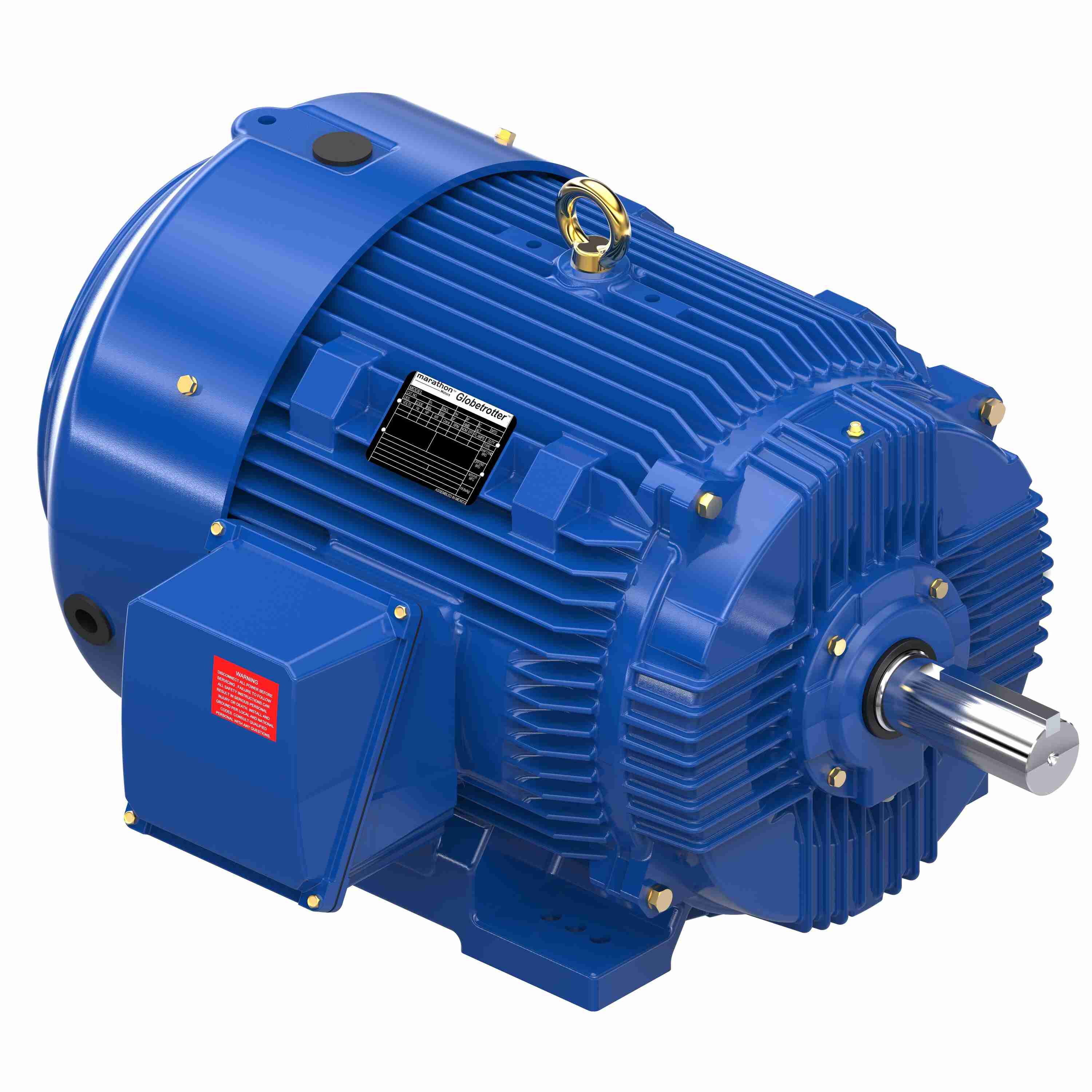

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Severe Duty Motor, 50 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 365T Frame, TEFC
Features
- Meets IEEE-841 standard for severe duty motor applications; Bearing current protection (BCP); Meets General Motors® GM® 7E-TA automotive duty specification and Meets IEEE45 USCG marine duty, API RPI4F for offshore platforms
- IP-56 cast iron, Meets or exceeds NEMA Premium® efficiencies, NEMA Premium models are in compliance with EISA2007; Actual test and vibration data supplied with each motor
- MAX GUARD® Class F Insulation System, Inverter duty 10:1 variable torque and 10:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
- F1/F2 capable, Precision balanced to .08”/sec, Steel conduit box
- Inpro/Seal® VBX® bearing isolators on drive end shaft extension TENV and on both ends of TEFC
- Modifications and Kits are available
- 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power; NOTE: BCP (-P) models are not Hazardous Duty® motors certified for Division 2 locations
- Provisions to add stub shaft for an encoder (182-449T, TEFC only, Modifications and Kits are available
- UL® Recognized & CSA certified and CE® Mark
Specifications
| Performance & Electrical | |
| Power | 50 HP |
| Power (dual rating) | 50 HP |
| Power | 37.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1188 RPM |
| Speed (dual) | 1188 RPM |
| Full-load current | 60.5 A |
| Current (dual) | 60.5 A |
| Nominal efficiency | 94.1% |
| Power factor | 82% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | .1329 Ω |
| Frame & Mechanical | |
| Frame | 365T |
| Frame size | 365 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP56 |
| Insulation class | H |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 2.375 in |
| Shaft type | T |
| Drive-end bearing | 6313 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6213 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7300U |
| Outline drawing | SS557662-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 38.00 × 35.00 × 28.00 in |
| Weight | 1,001.00 lb |
| Identification | |
| Manufacturer part / model | 365THFCD9077 |
| Catalog number | W582B-P |
| UPC | 722856191076 |
| Product line | Blue Chip® XRI®-841 / Automotive |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
