Marathon Electric Inverter (Vector) Duty Motor
Regular price
$18,383.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

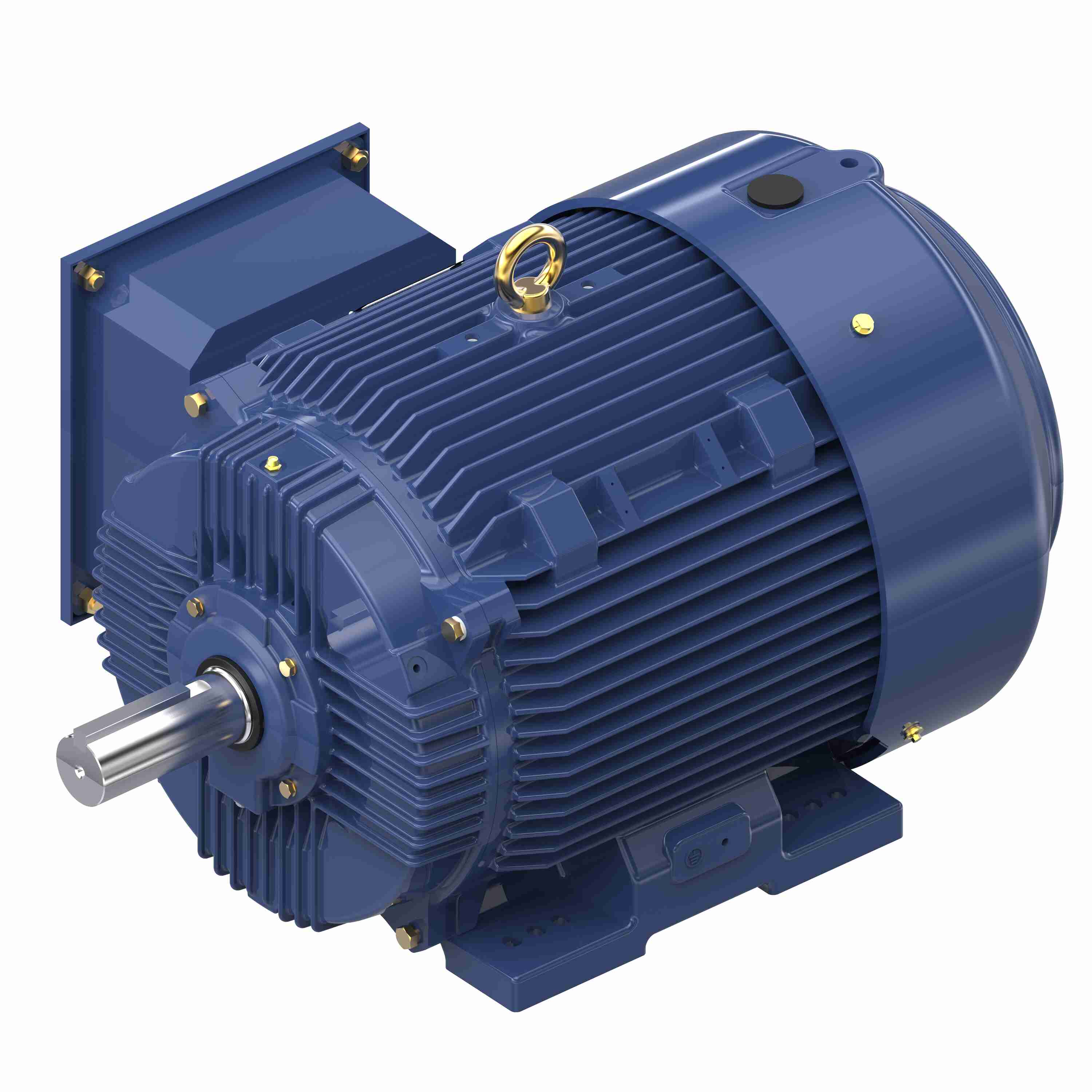

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- IP-55 Cast Iron, MaxGuard® inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted)
- BCP™ Bearing Current Protection with SGR Shaft Grounding Ring Inside Motor
- 2000:1 Constant torque operation from 0 to base speed on vector drive
- Constant Horsepower operation up to 2 times base RPM
- MAX GUARD® Class H insulation system
- Normally closed thermostats (one per phase, Class F), Modifications and Kits are available
- Double-shielded ball bearings
- 40°C Ambient 1.0SF inverter power
- Provisions Only for Encoder
- UL Recognized, CSA Certified, and CE Mark
Specifications
| Compliance & Certifications | |
| Connection drawing | EE7308AD |
| Outline drawing | SS621053-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 39.00 × 32.25 × 28.00 in |
| Weight | 980.00 lb |
| Identification | |
| Manufacturer part / model | 365THFCD8036 |
| Catalog number | Y574A |
| UPC | 722856206954 |
| Product line | Blue Max® |
| Country of origin | Mexico |
| Substitute part | 365THFS8036 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
