Marathon Electric Cooling Tower Motor, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 364TV Frame, TEAO
Regular price
$11,845.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

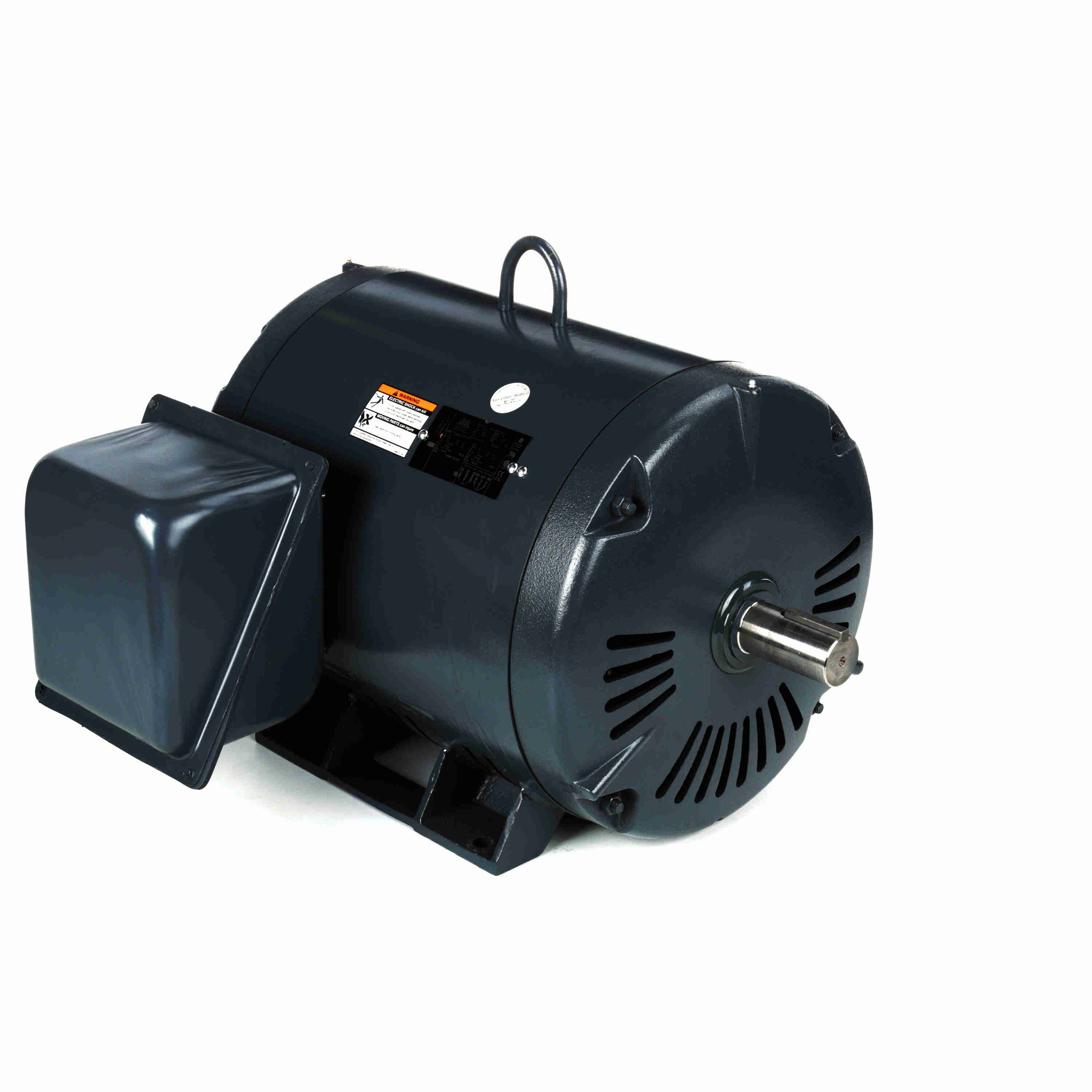

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cooling Tower Motor, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 364TV Frame, TEAO
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- IP56, Severe Duty, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint
- Suitable for 20:1 VT and 20:1 CT on VFD, MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on Inverter Power
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
- Extended grease tubes, regreasable in service T-drains provided for effective drainage (Installed in both endshields)
- Suitable for all angle mounting,
- Bearing Current Protection (BCP), Shaft grounding ring (SGRs) installed
- Inpro/Seal® quality VBX® bearing isolators, Ball bearings
- UL® Recognized & CSA certified and CE® Mark
Specifications
| Performance & Electrical | |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Nominal efficiency | 95% |
| Power factor | 87.2% |
| Service factor | 1.15 |
| Number of poles | 4 |
| NEMA design | B |
| KVA code | G |
| Duty | CONTINUOUS |
| Starting method | LINE OR INVERTER |
| Main winding resistance | .104 Ω |
| Frame & Mechanical | |
| Frame | 364TV |
| Frame material | CAST IRON |
| Enclosure | TEAO |
| IP rating | IP56 |
| Insulation class | H4 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL OR UP OR DOWN |
| Rotation | REV |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 2.375 in |
| Shaft type | T |
| Drive-end bearing | 6313 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6213 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | V - LI,ME-INS,CONST UL REC |
| Connection drawing | EE7308K |
| Outline drawing | SS620960-100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 38.00 × 32.00 × 28.00 in |
| Weight | 850.00 lb |
| Identification | |
| Manufacturer part / model | 364TTTCD16534 |
| Catalog number | U1877A |
| UPC | 722856214379 |
| Product line | XRI®-SD |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
