35A05H14 TIGEAR-2 REDUCER - Dodge
Regular price
$3,059.65 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

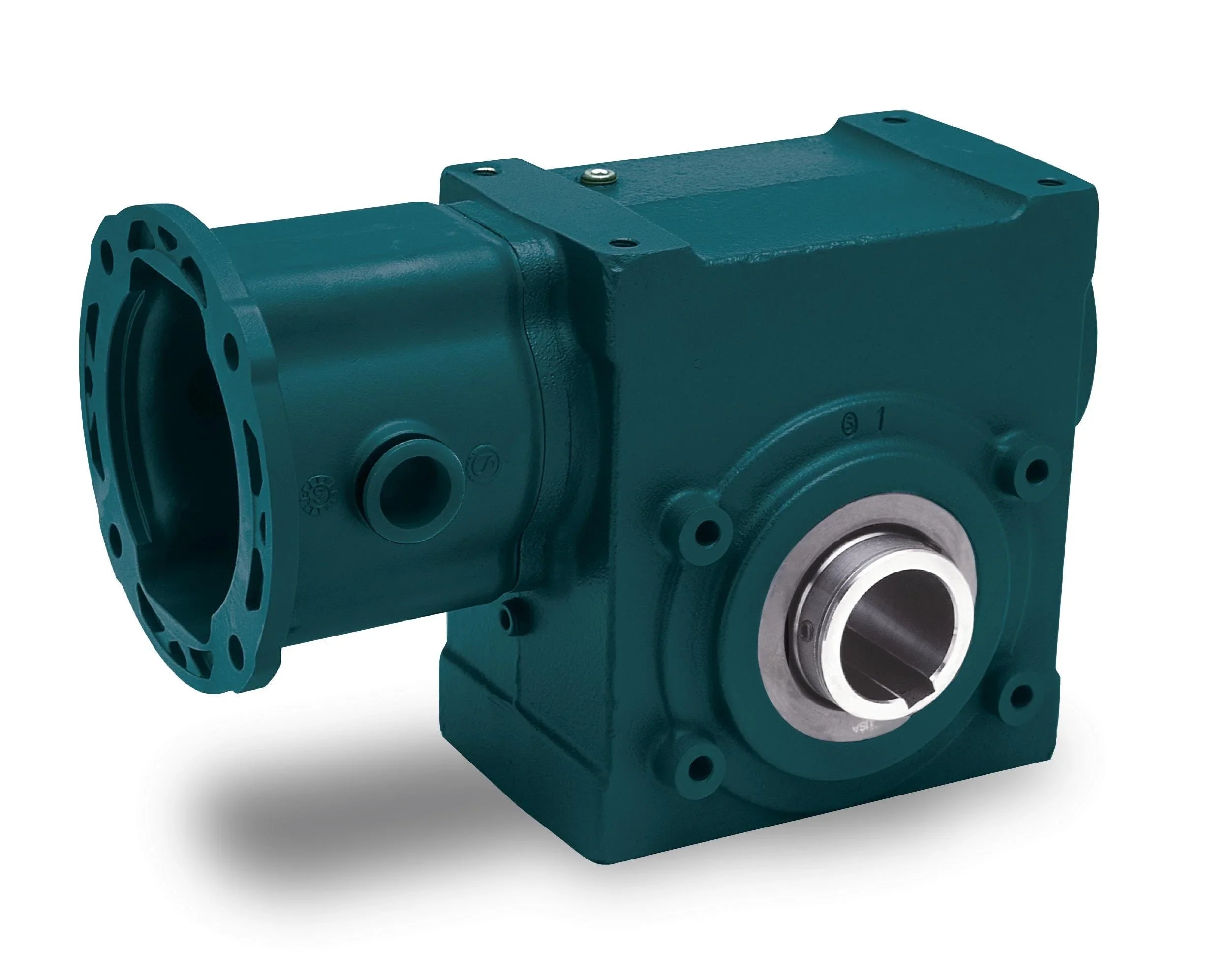

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
35A05H14 TIGEAR-2 REDUCER
| Specifications | |
|---|---|
| Base to Output Center Height | 3.99 in |
| Bore Diameter (Output) | 1.9375 in |
| Bore Length | 8.74 in |
| Bushing Required | Optional |
| Case Size | 35 |
| Center Distance | 3.5 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 16.31 HP |
| Horsepower Rating Output | 15.48 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 7.5 in |
| Mounting Bolt Pattern Width | 4 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 10.26 in |
| Output Style | Hollow |
| Overhung Load | 2120 lbf |
| Paint Type | Standard |
| Rated Torque Output | 2787 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 19.86 HP |
| Actual Ratio | 5 |
| Nominal Ratio | 5 |
