Marathon Electric Close-Coupled Pump Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324JP Frame, DP
Regular price
$4,549.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

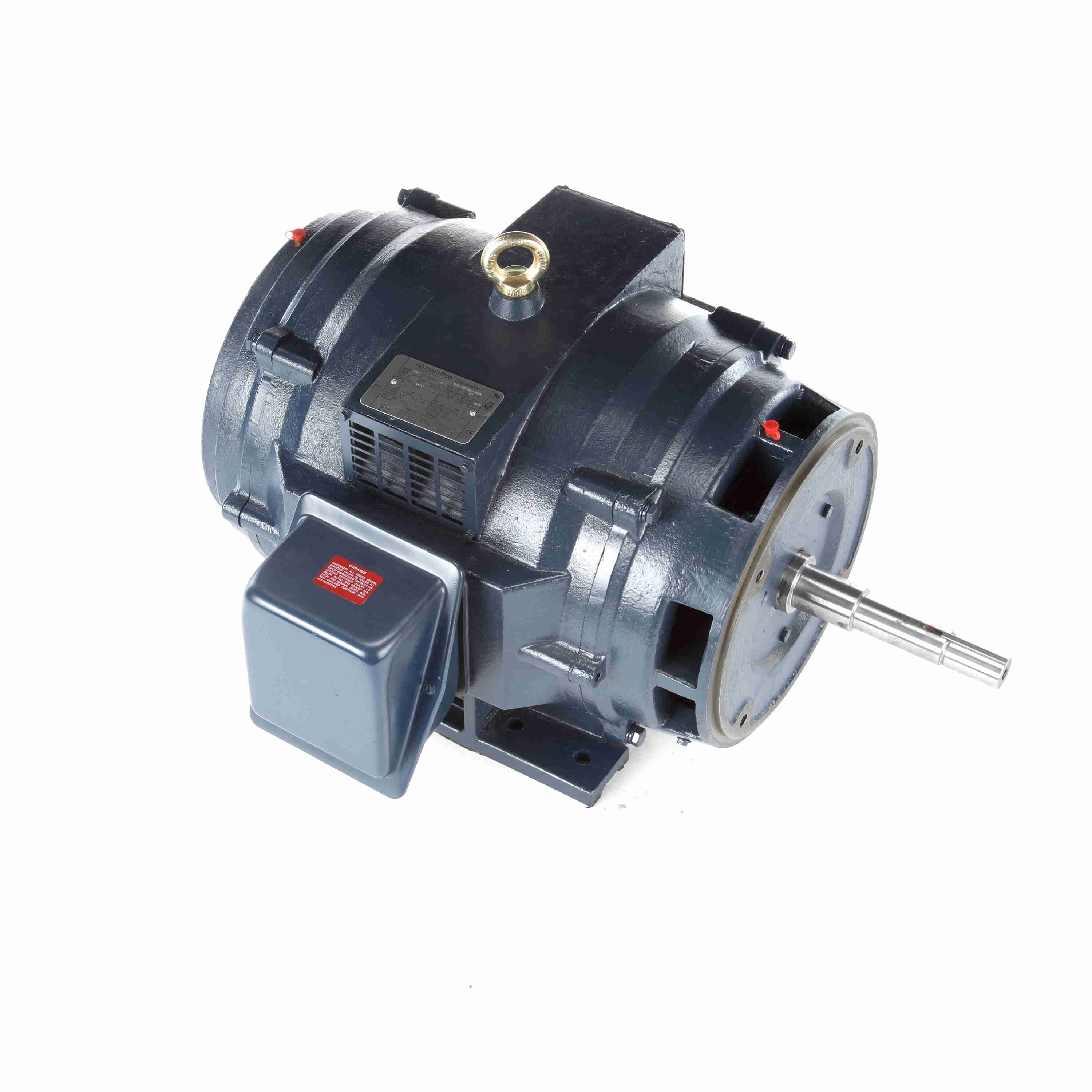

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324JP Frame, DP
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Inverter Duty 20:1 Variable Torque and 4:1 Constant Torque
- Nameplated 60/50 hertz, 190/380 volts at next lower HP
- Steel frame with Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
Specifications
| Performance & Electrical | |
| Power | 40 HP |
| Power (dual rating) | 40 & 30 HP |
| Power | 30.0 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1780 RPM |
| Speed (dual) | 1780 & 1482 RPM |
| Full-load current | 95.5/47.5 A |
| Current (dual) | 95.5/47.5 & 87.5/43.5 A |
| Nominal efficiency | 94.1% |
| Power factor | 83.5% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter |
| Main winding resistance | .209 Ω |
| Frame & Mechanical | |
| Frame | 324JP |
| Frame size | 324 |
| Frame suffix | JP |
| Frame material | Rolled Steel |
| Frame length | 14.56 in |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.249 in |
| Shaft extension | 8.37 in |
| Shaft type | JP |
| C dimension | 31.82 in |
| Drive-end bearing | 6312 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6311 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308AA |
| Outline drawing | SS620812-100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 35.00 × 35.00 × 21.00 in |
| Weight | 539.00 lb |
| Identification | |
| Manufacturer part / model | 324TTDBD6037 |
| Catalog number | GT2473 |
| UPC | 722856063052 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
