Marathon Electric Inverter (Vector) Duty Motor
Regular price
$13,124.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

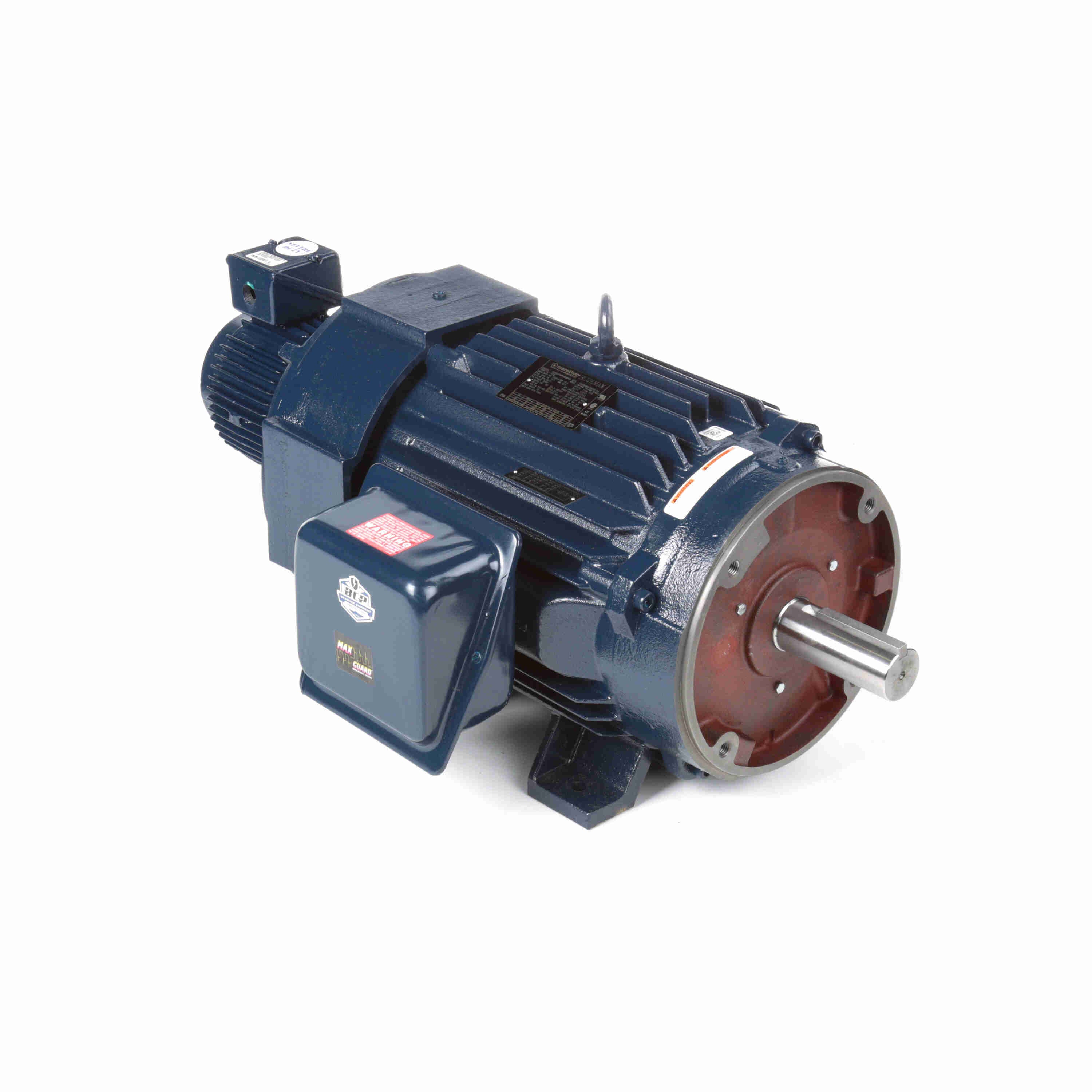

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- MAX GUARD® Class H insulation system
- Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque
- Constant HP operation to twice base speed (143-256 frame);1.5 times base (all others)
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, class F)
- Blue Chip quality, cast iron frame and brackets
- Patented “fracket” design (TEBC enclosure)
- Separate power supply required for blower motor
- Separate 230/460 volt power supply required for 1 HP blower motor
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 44.88 × 26.00 × 23.75 in |
| Weight | 608.00 lb |
| Identification | |
| Manufacturer part / model | 324THFPA8038 |
| Catalog number | Y513 |
| UPC | 722856025128 |
| Product line | Blue Max® |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
