469059 - Dodge - 2B5V88-Q1 SHEAVE
Regular price
$139.09 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

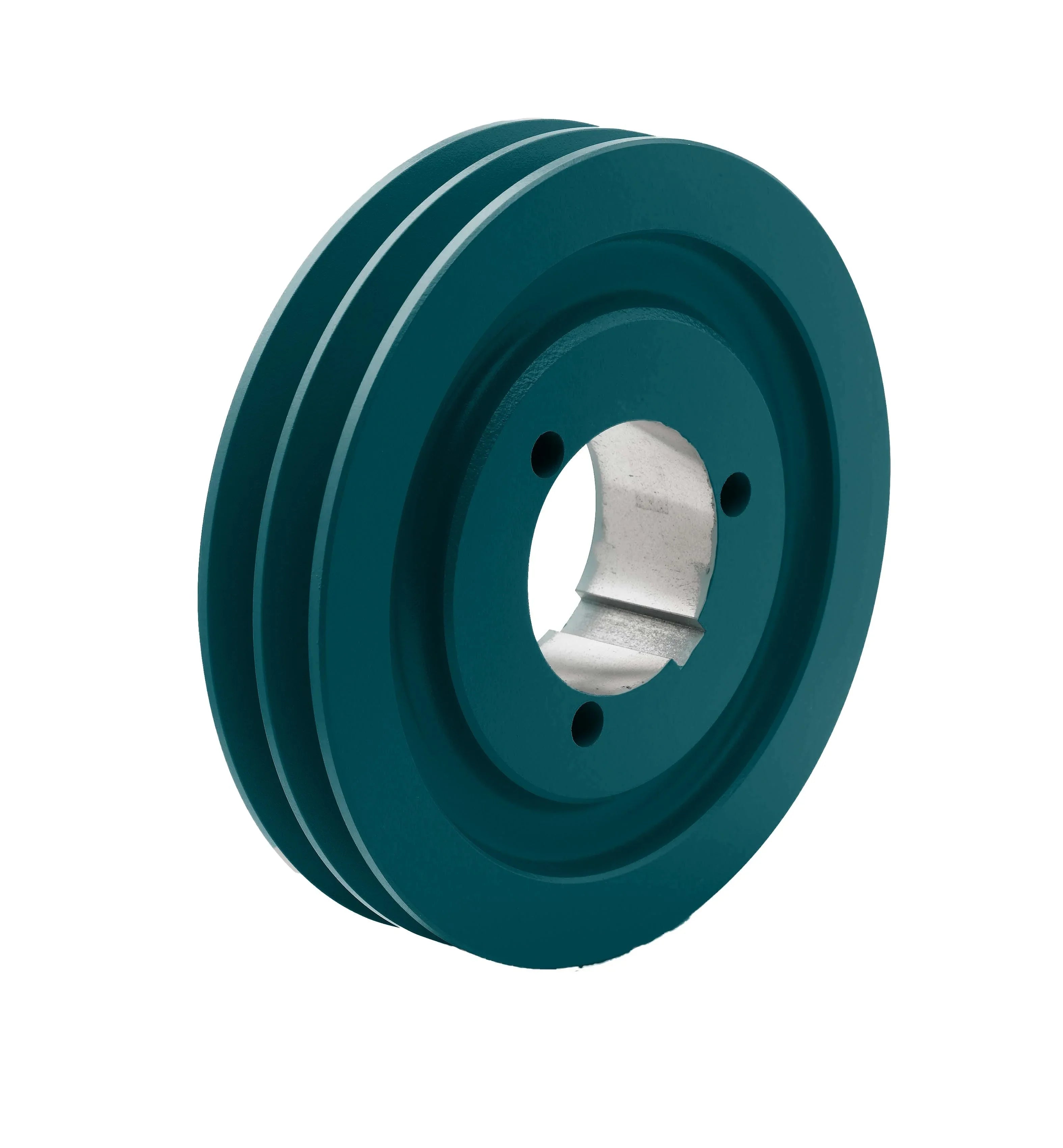

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469059 - Dodge - 2B5V88-Q1 SHEAVE
2B5V88-Q1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469059},{CR=2B5V88-Q1},{OUTS=9.00},{DATUMA=8.32},{DATUMB=8.72},{PITCH=8.82},{H=0.750000},{TYPE=4W},{B=Q1},{WT=15.3},{F=1.72000},{L=2.5000},{E=0.000000} |
| Construction Type | Block |
| Datum Diameter | 9.0000 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 2.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 9.0000 |
