469071 - Dodge - 2B5V154-B SHEAVE
Regular price
$278.19 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

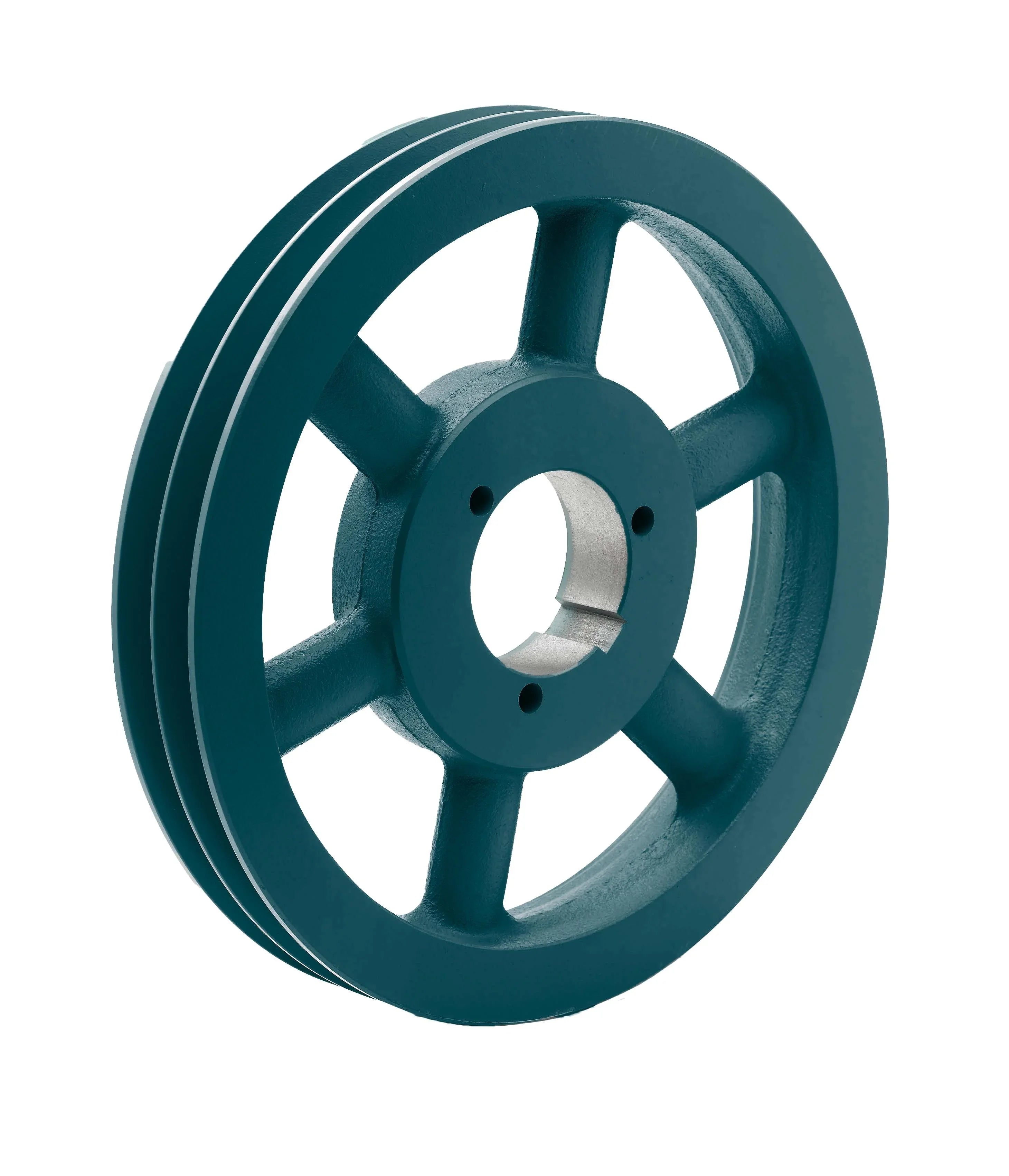

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469071 - Dodge - 2B5V154-B SHEAVE
2B5V154-B SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469071},{CR=2B5V154},{OUTS=15.68},{DATUMA=15.00},{DATUMB=15.40},{PITCH=15.50},{H=0.515625},{TYPE=4A},{B=B},{WT=23.2},{F=1.71875},{L=1.9375},{E=0.171875} |
| Construction Type | Block |
| Datum Diameter | 15.6800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 2.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 15.6800 |
