469037 - Dodge - 2B38-P1 SHEAVE
Regular price
$71.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

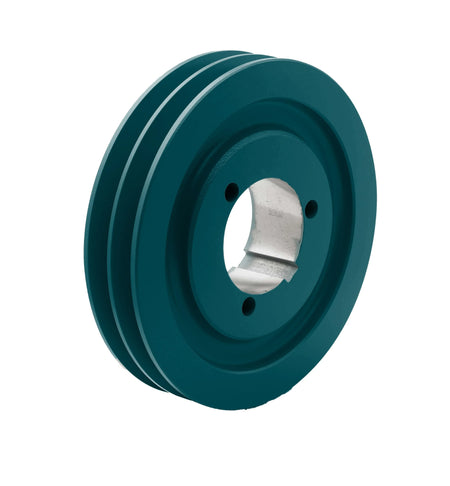

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469037 - Dodge - 2B38-P1 SHEAVE
2B38-P1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469037},{CR=2B38-P1},{OUTS=4.15},{DATUMA=3.40},{DATUMB=3.80},{PITCH=0.00},{H=0.625000},{TYPE=5B},{B=P1},{WT=3.0},{F=1.75000},{L=1.9375},{E=0.437500} |
| Construction Type | Block |
| Datum Diameter | 4.1500 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 2.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 4.1500 |
