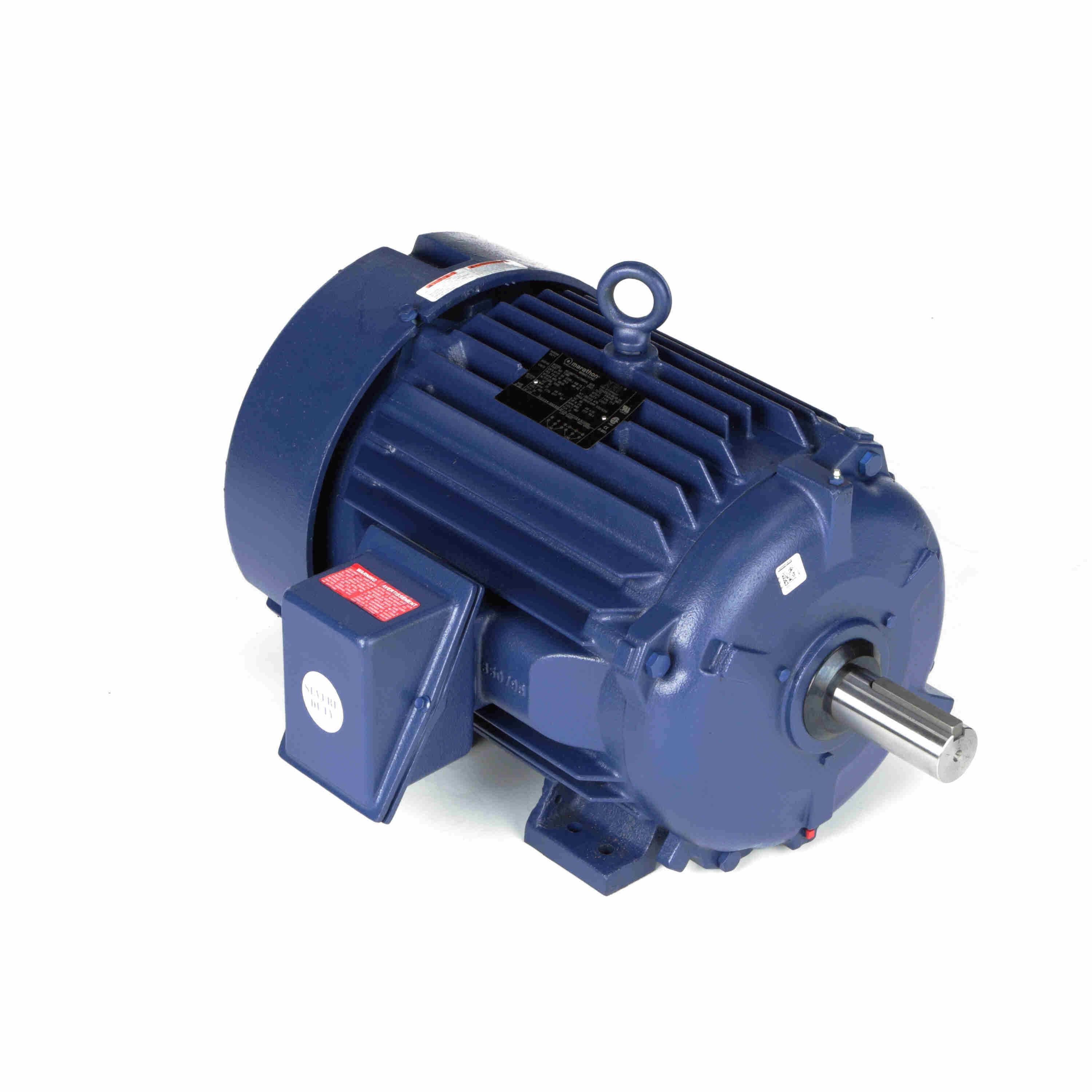

Marathon Electric Cooling Tower Motor, 3 Ph, 60 Hz, 460 & 460 V, 286T Frame, TEFC
Regular price
$6,446.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cooling Tower Motor, 3 Ph, 60 Hz, 460 & 460 V, 286T Frame, TEFC
Features
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Internal and external epoxy paint
- Class F insulation
- Extended grease tubes, Regreasable in service
- T-drains provided for effective drainage
- Shaft Slinger, Forsheda seals on both ends
- Actual test and vibration data supplied with each motor
Specifications
| Performance & Electrical | |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Nominal efficiency | 91.7% |
| Power factor | 83% |
| Service factor | 1.15 |
| Number of poles | 4/8 |
| NEMA design | 1VT |
| KVA code | J |
| Duty | CONTINUOUS |
| Starting method | ACROSS THE LINE |
| Main winding resistance | .365 Ω |
| Frame & Mechanical | |
| Frame | 286T |
| Frame material | CAST IRON |
| Frame length | 14.25 in |
| Enclosure | TEFC |
| IP rating | IP55 |
| Insulation class | F3 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 1 7/8 in |
| Shaft extension | 4.82 in |
| Shaft type | T |
| C dimension | 27.71 in |
| Drive-end bearing | 6311 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6210 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | A-EE7322 |
| Outline drawing | B-SS311057-1425 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 35.00 × 26.00 × 24.51 in |
| Weight | 468.00 lb |
| Identification | |
| Manufacturer part / model | 286TTFNA7260 |
| Catalog number | Y386 |
| UPC | 722856042279 |
| Product line | XRI®-SD |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
