Marathon Electric General Purpose Motor, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286TS Frame, DP
Regular price
$3,322.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

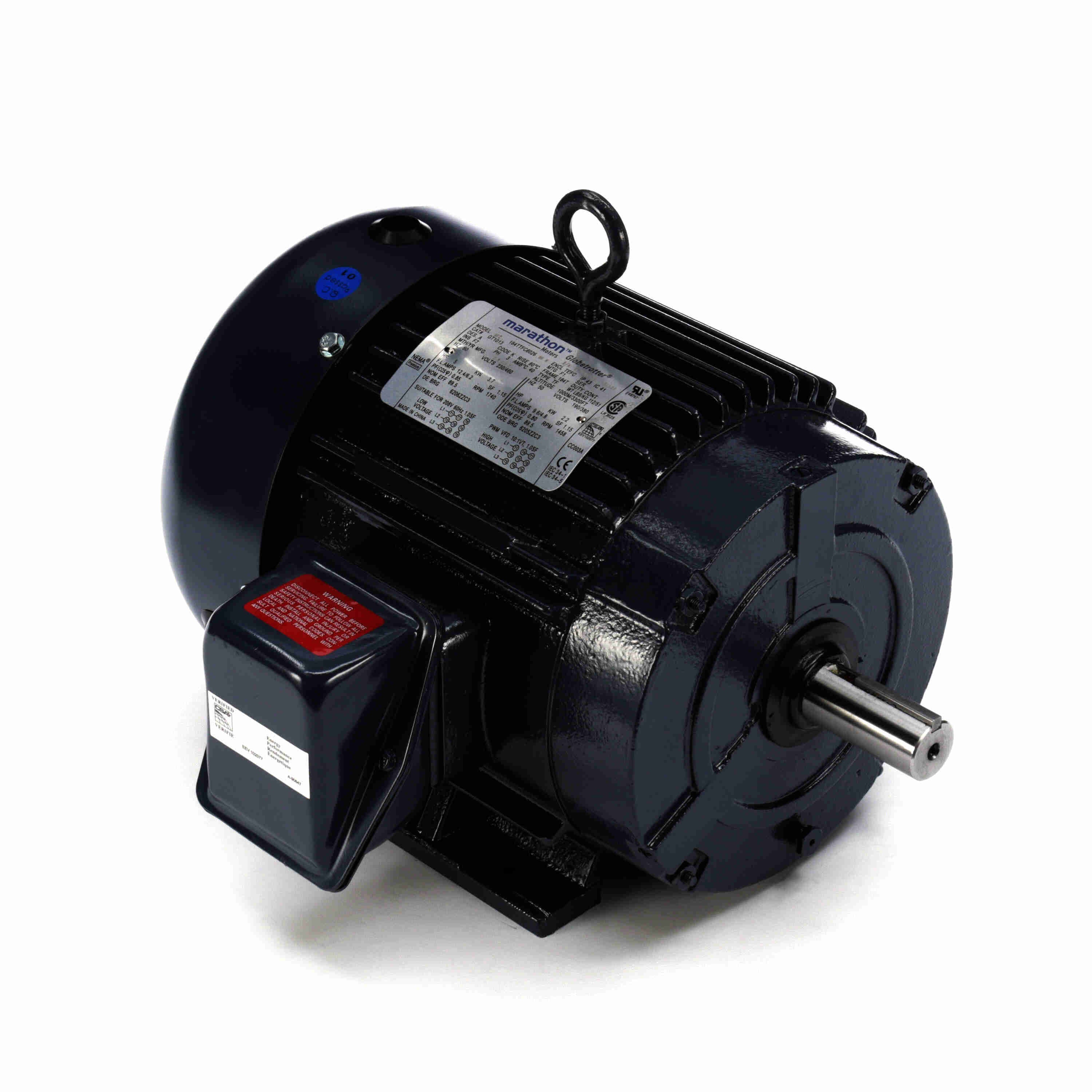

General Purpose Motor, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286TS Frame, DP
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- Inverter Duty 20:1 Variable Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
Specifications
| Performance & Electrical | |
| Power | 30 HP |
| Power (dual rating) | 30 & 25 HP |
| Power | 22.4 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1775 RPM |
| Speed (dual) | 1775 & 1475 RPM |
| Full-load current | 73.0/36.5 A |
| Current (dual) | 73/36.5 & 73/36.5 A |
| Nominal efficiency | 94.1% |
| Power factor | 82% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | PWS (LV ONLY) & YDRUN OR INV |
| Main winding resistance | .289 Ω |
| Frame & Mechanical | |
| Frame | 286TS |
| Frame size | 286 |
| Frame suffix | TS |
| Frame material | ROLLED STEEL |
| Frame length | 13.97 in |
| Enclosure | DP |
| IP rating | IP22 |
| Insulation class | F3 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.625 in |
| Shaft extension | 3.25 in |
| Shaft type | TS |
| C dimension | 25.72 in |
| Drive-end bearing | 6311 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6210 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | V - LI,ME-INS,CONST UL REC |
| Connection drawing | EE7308AA |
| Outline drawing | SS620709-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 28.72 × 20.00 × 18.00 in |
| Weight | 366.03 lb |
| Identification | |
| Manufacturer part / model | 286TSTDBD6026 |
| Catalog number | GT0070 |
| UPC | 722856062574 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
