Marathon Electric Inverter (Vector) Duty Motor
Regular price
$17,262.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

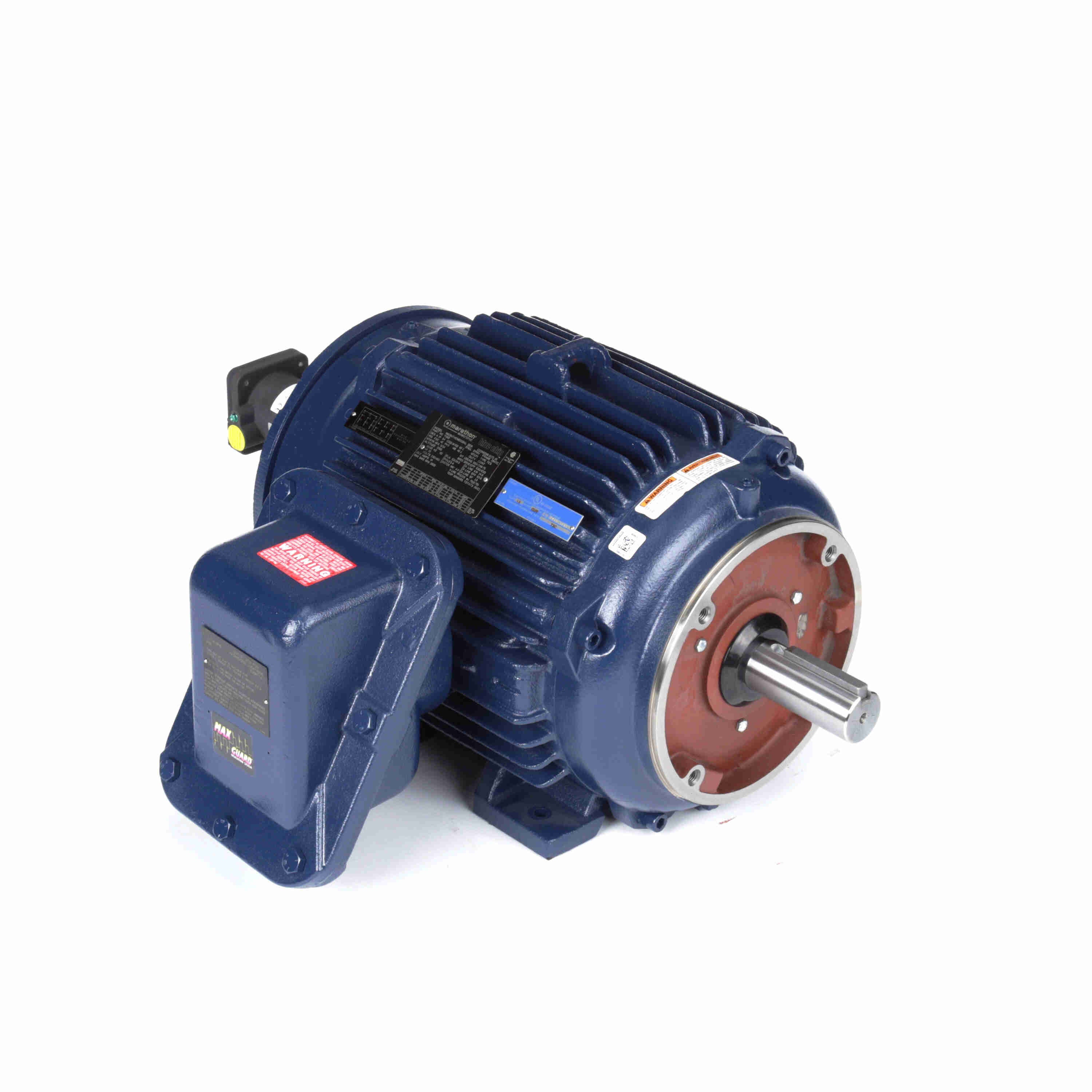

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- BEI H38 explosion proof encoder 1024 ppr, Class I Groups C & D,Class II Groups E, F, G included
- MAX GUARD® Class F insulation system
- Constant torque operation from 0 to base speed on vector drive
- Constant Horsepower operation up to twice base RPM
- Continuous duty at 40°C ambient
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, Class F)
- Cast iron frame and brackets
- F1 standard, NOT field reversible to F2, Meets temperature code T3B
- Suitable for Group C
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 37.88 × 31.88 × 20.01 in |
| Weight | 555.00 lb |
| Identification | |
| Manufacturer part / model | 284THEN8032 |
| Catalog number | Y985 |
| UPC | 722856025616 |
| Product line | Blue Max® Hazardous Duty® |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
