Marathon Electric Severe Duty Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256TV Frame, TEAO
Regular price
$4,618.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

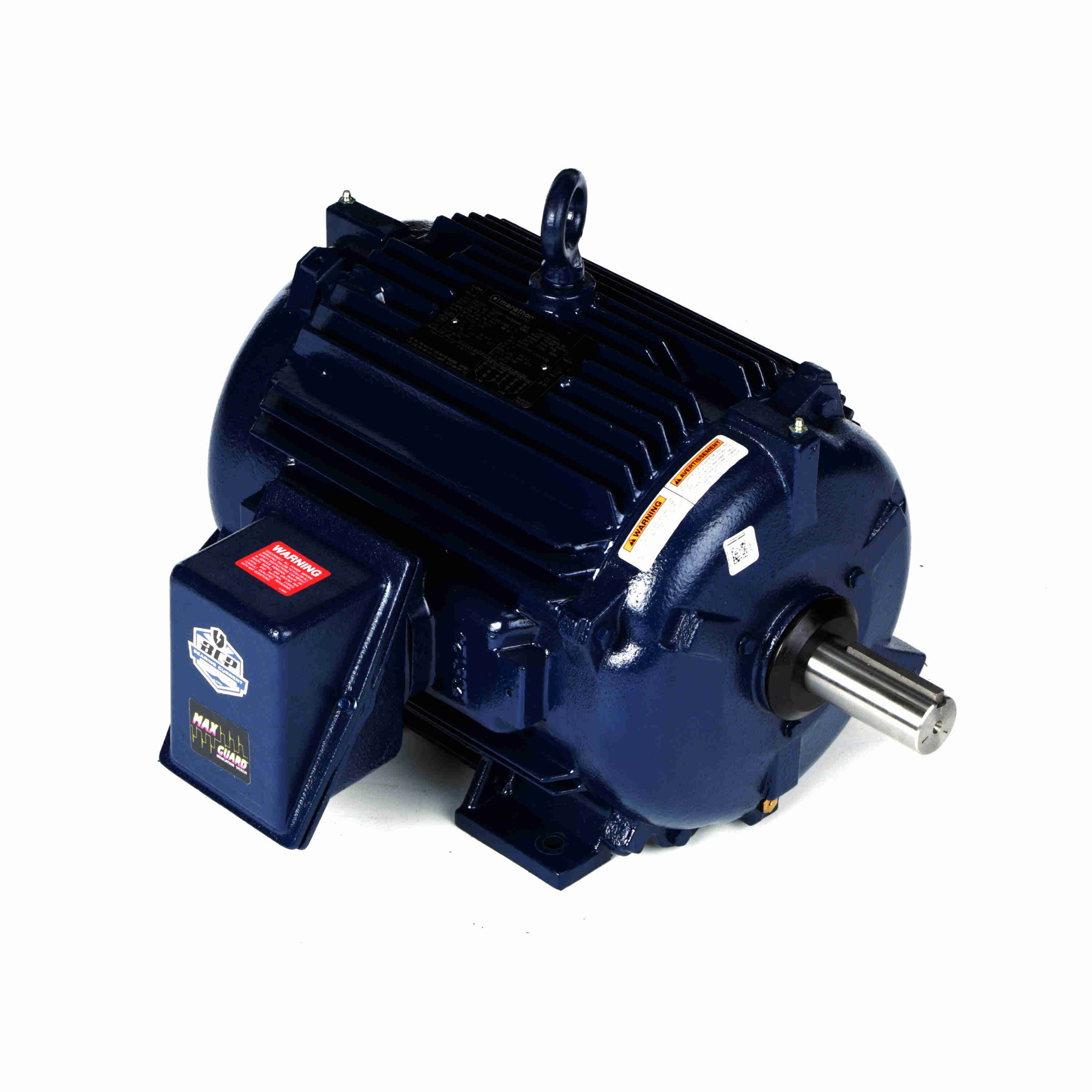

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Severe Duty Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256TV Frame, TEAO
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Internal and external epoxy paint
- MAX GUARD® Class F insulation system
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
- Extended grease tubes, regreasable in service
- T-drains provided for effective drainage (Installed in both endshields)
- Suitable for all angle mounting
- Suitable for 20:1 VT and 20:1 CT on VFD
Specifications
| Performance & Electrical | |
| Power | 20 HP |
| Power (dual rating) | 20 & 15 HP |
| Power | 14.9 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1775 RPM |
| Speed (dual) | 1775 & 1475 RPM |
| Full-load current | 48.0/24.1 A |
| Current (dual) | 48/24.1 & 44/22 A |
| Nominal efficiency | 93% |
| Power factor | 84% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | .475 Ω |
| Frame & Mechanical | |
| Frame | 256TV |
| Frame size | 256 |
| Frame suffix | TV |
| Frame material | Cast Iron |
| Frame length | 12.25 in |
| Enclosure | Totally Enclosed Air Over |
| IP rating | IP56 |
| Insulation class | F |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal Or Up Or Down |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.625 in |
| Shaft extension | 4.25 in |
| Shaft type | T |
| C dimension | 22.35 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6210 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7308 |
| Outline drawing | B-SS203092-1225 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.75 × 21.75 × 18.00 in |
| Weight | 363.00 lb |
| Identification | |
| Manufacturer part / model | 256TTTNA16544 |
| Catalog number | U1872 |
| UPC | 722856132246 |
| Product line | XRI®-SD |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
