Marathon Electric Explosion Proof Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256TC Frame, EPFC
Regular price
$4,382.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

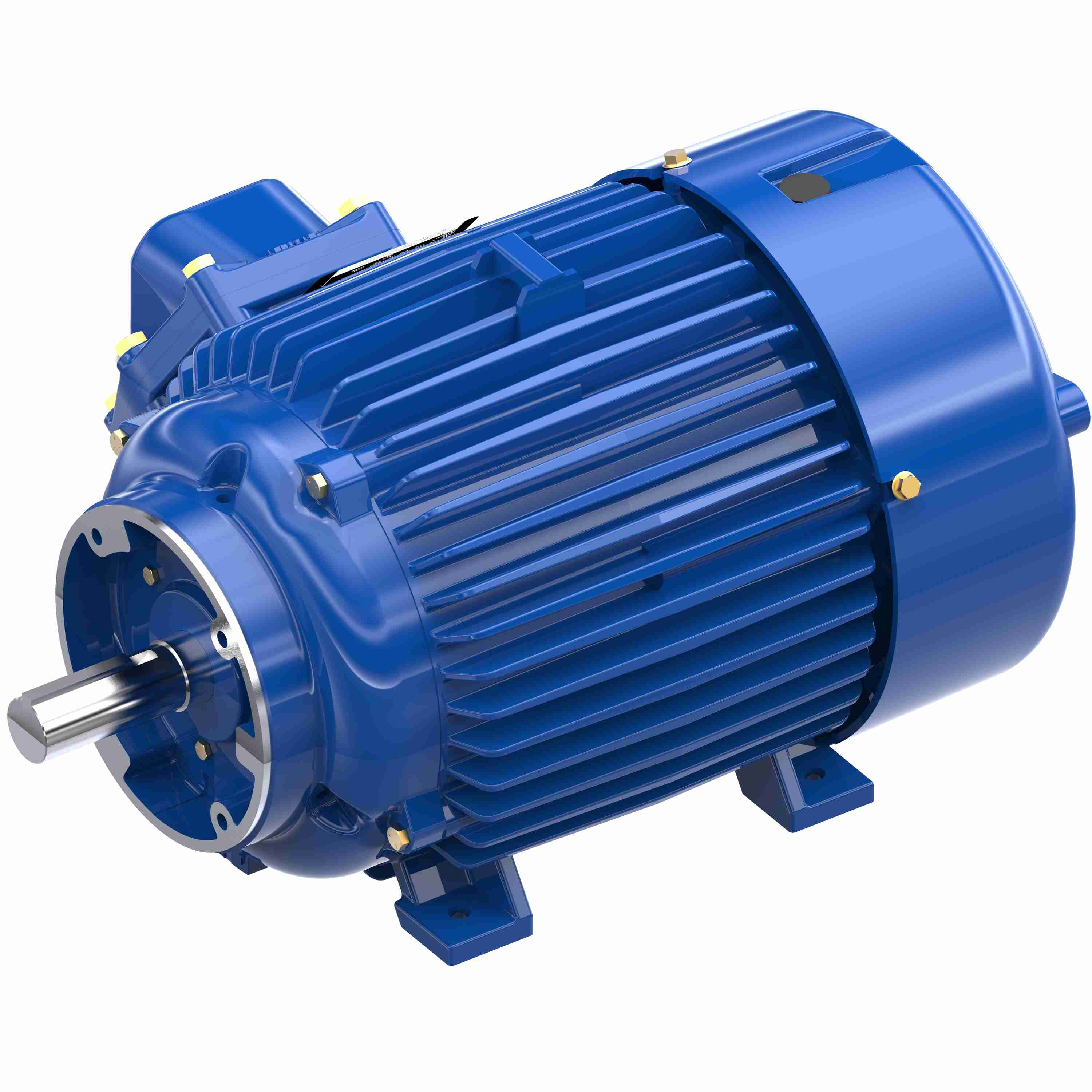

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Explosion Proof Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256TC Frame, EPFC
Features
- IP-54, Meets NEMA Premium® efficiency, Blue Chip Hazadous Duty® XRI® Motor
- Class F Insulation System, 10:1 Constant torque, 10:1 Variable torque, MAX GUARD® Class F insulation system, Internal and external epoxy paint
- Explosion Proof Division 1 Class I, Groups C & D, Class II, Groups F & G Meets temperature code T3B,
- Blue Chip Series® quality, 100% cast iron construction for rigidity and reduced vibration
- 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power
- Precision balanced to .08”/sec, Extended grease tubes
- Normally closed thermostats (must be connected to control circuit)
- Brass Breather Drains both ends, Pipe Plugs both ends
- UL Recognized, CSA Certified, and CE Mark
Specifications
| Performance & Electrical | |
| Power | 20 HP |
| Power (dual rating) | 20 & 15 HP |
| Power | 14.9 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1768 RPM |
| Speed (dual) | 1768 & 1472 RPM |
| Full-load current | 48.5/24.2 A |
| Current (dual) | 48.5/24.2 & 44.5/22.3 A |
| Nominal efficiency | 93% |
| Power factor | 83.5% |
| Service factor | 1 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Part Wdg Start Or Inverter |
| Main winding resistance | .513 Ω |
| Frame & Mechanical | |
| Frame | 256TC |
| Frame size | 256 |
| Frame suffix | TC |
| Frame material | Cast Iron |
| Enclosure | Explosion Proof Fan cooled |
| IP rating | IP54 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 50°C |
| Shaft & Bearings | |
| Shaft diameter | 1.625 in |
| Shaft type | T |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6210 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | UL Listed And CSA Certified |
| Hazardous location | DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C |
| Connection drawing | EE7308T |
| Outline drawing | SS203036-1225 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.19 × 16.50 × 14.00 in |
| Weight | 455.00 lb |
| Identification | |
| Manufacturer part / model | 256TTGCD6528 |
| Catalog number | C501 |
| UPC | 722856212443 |
| Product line | Hazardous Duty® |
| Country of origin | Mexico |
| Substitute part | 825079.00 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
