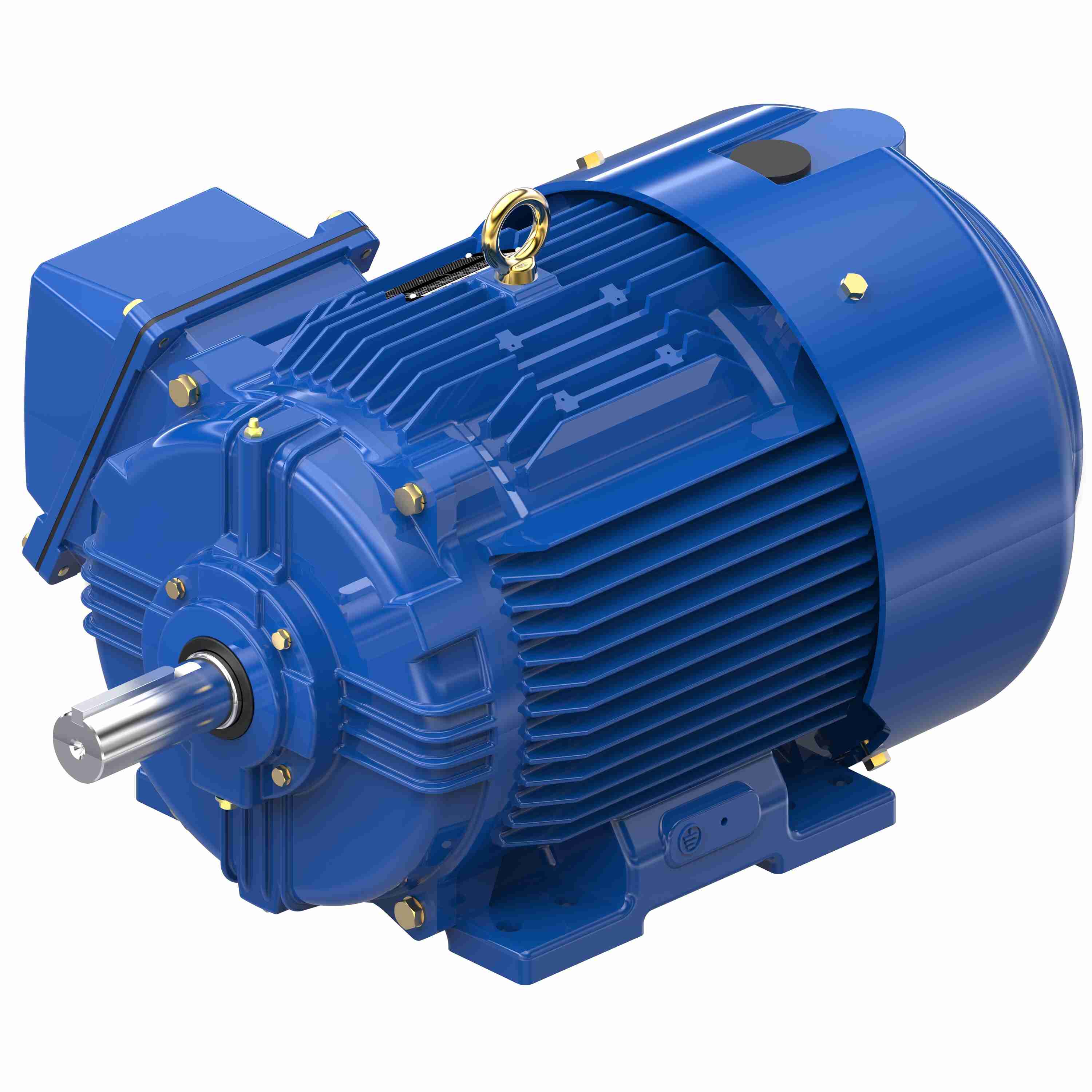

Marathon Electric Cooling Tower Motor, 3 Ph, 60 Hz, 460 & 460 V, 256T Frame, TEFC
Regular price
$5,670.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cooling Tower Motor, 3 Ph, 60 Hz, 460 & 460 V, 256T Frame, TEFC
Features
- IP-55 cast iron, Severe Duty, Meets or exceeds NEMA Premium®* efficiencies, NEMA Premium models are in compliance with EISA2008
- Class F Insulation System
- F1/F2 capable, Dynamically balanced rotors, Cast Iron conduit box
- Dual Frame Mounting
- Modifications and Kits are available
- 40°C Ambient, 1.15SF
- UL®* listed, UL certified for Canada and CE®* mark
Specifications
| Performance & Electrical | |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Nominal efficiency | 91% |
| Power factor | 81.8% |
| Service factor | 1.15 |
| Number of poles | 4/8 |
| NEMA design | 1VT |
| KVA code | J |
| Duty | CONTINUOUS |
| Starting method | ACROSS THE LINE |
| Main winding resistance | .7042 Ω |
| Frame & Mechanical | |
| Frame | 256T |
| Frame material | CAST IRON |
| Enclosure | TEFC |
| IP rating | IP55 |
| Insulation class | H4 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 1.626 in |
| Shaft type | T |
| Drive-end bearing | 6309 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6209 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | V - LI,ME-INS,CONST UL REC |
| Connection drawing | EE7322 |
| Outline drawing | SS208560-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.19 × 16.50 × 14.00 in |
| Weight | 303.00 lb |
| Identification | |
| Manufacturer part / model | 256TTFCD7250 |
| Catalog number | Y384A |
| UPC | 722856212429 |
| Product line | XRI®-SD |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
