Marathon Electric Inverter (Vector) Duty Motor
Regular price
$16,702.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

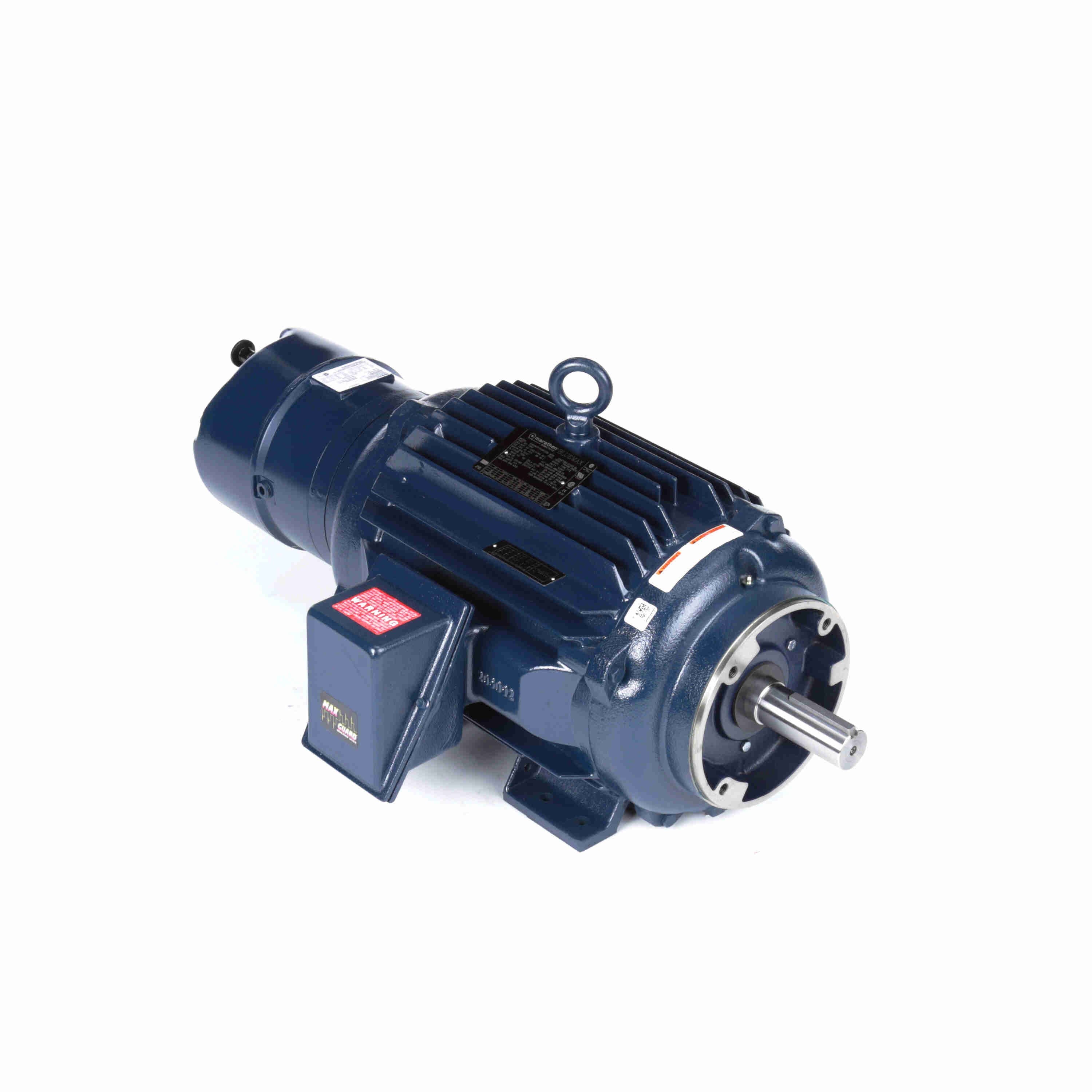

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- IP43, Cast Iron Construction
- MAX GUARD® Class F insulation system
- Constant torque operation from 0 to base speed on vector drive Constant Horsepower operation up to twice base RPM
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, Class F)
- Stearns brakes, 87,000 series, 105 Lb-Ft, Includes 140% rated spring-set self-adjusting NEMA 2 disk brake (Brake coil voltage matches motor)
- Universal mounting up to 15 Lb-Ft, (see comment below and Mod Central for vertical mounting); Horizontal mounting (see comment below and Mod Central for vertical mounting)
- Will accept encoder through Mod Central (see Mod Central for encoder mounting)
- UL® Recognized & CSA certified and CE® Mark
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 50.00 × 25.00 × 20.00 in |
| Weight | 485.00 lb |
| Identification | |
| Manufacturer part / model | 256THTNA8071 |
| Catalog number | Y993 |
| UPC | 722856025692 |
| Product line | Blue Max® Brake |
| Country of origin | United States of America |
| Substitute part | 256THTCD8071 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
