Marathon Electric Vertical Pump Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254TPV Frame, WPI
Regular price
$5,198.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

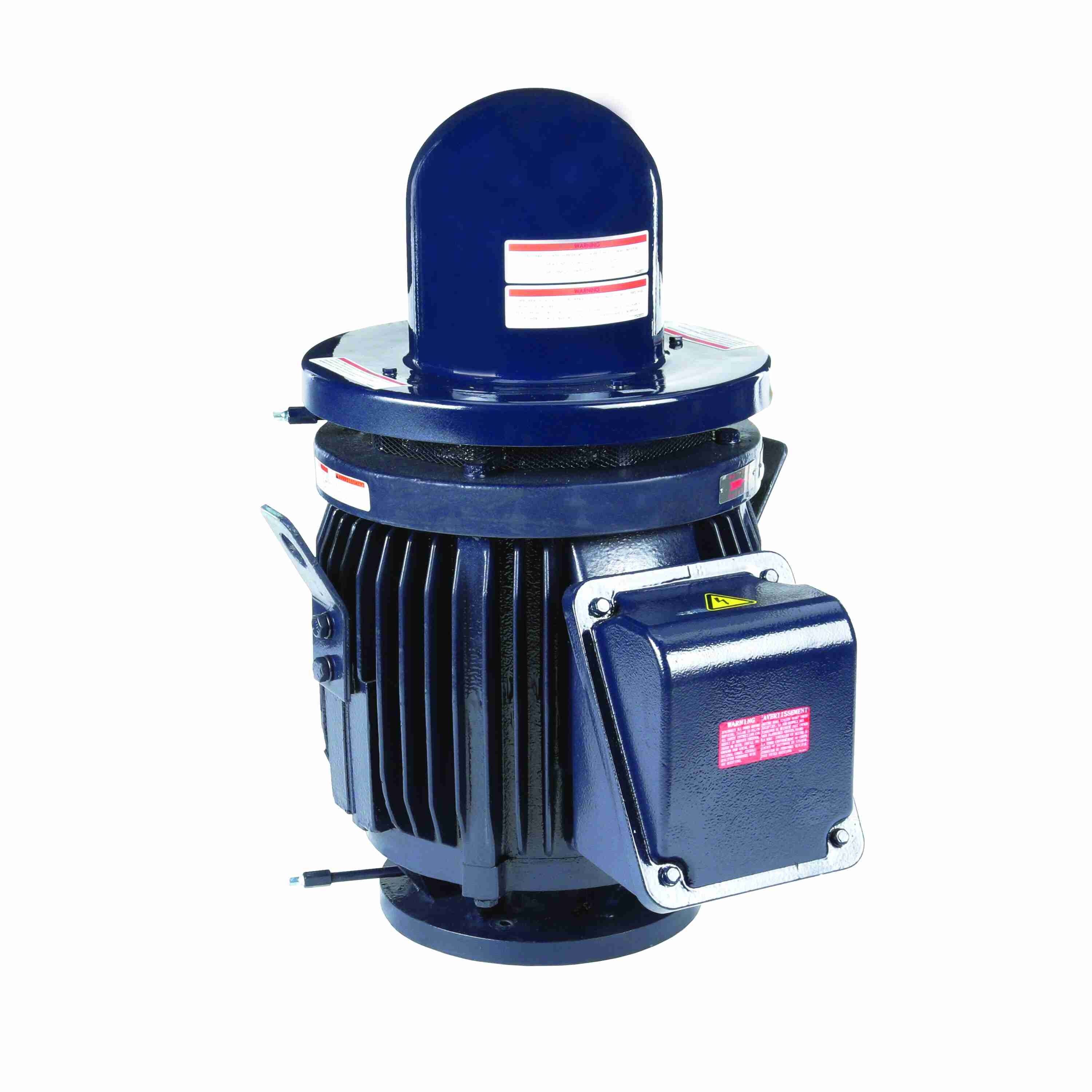

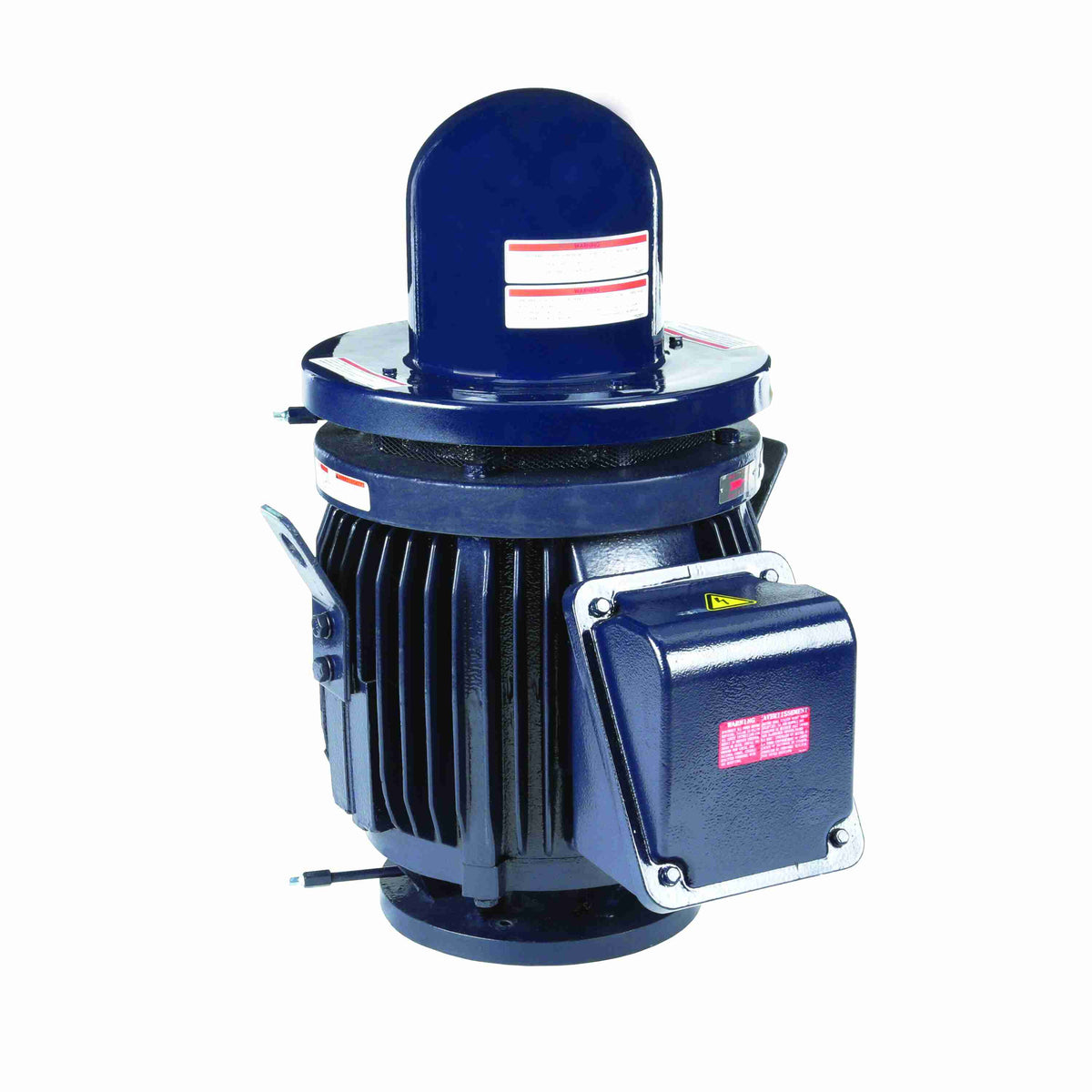

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Vertical Pump Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254TPV Frame, WPI
Features
- Meets or exceeds NEMA Premium efficiencies
- High Thrust
- Weather Protected Type 1 (WP1) enclosure
- Top angular contact bearings
- Non-reverse ratchet is standard
- Couplings of alternative sizes are available through Modification Center
- Inverter duty 3:1 variable torque with non-reverse ratchet
- UL Recognized, C-US, and CE Mark
Specifications
| Performance & Electrical | |
| Power | 15 HP |
| Power (dual rating) | 15 & 10 HP |
| Power | 11.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1760 RPM |
| Speed (dual) | 1760 & 1465 RPM |
| Full-load current | 37.0/18.4 A |
| Current (dual) | 37/18.4 & 30.5/15.3 A |
| Nominal efficiency | 93% |
| Power factor | 82% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter |
| Frame & Mechanical | |
| Frame | 254TPV |
| Frame size | 254 |
| Frame suffix | TPV |
| Frame material | Cast Iron |
| Enclosure | Weather Protected 1 |
| IP rating | IP23 |
| Insulation class | F |
| Mounting | Round |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Shaft Down |
| Rotation | Counterclockwise Rotation, Reversible without Non-Reversible Ratchet |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 0.12 in |
| Shaft type | TP |
| C dimension | 27.85 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 7311B |
| Opp. drive-end bearing type | Single Angular Contact |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308DX |
| Outline drawing | SS620834 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 20.72 × 20.72 × 30.85 in |
| Weight | 300.00 lb |
| Identification | |
| Manufacturer part / model | 254VTDC6026 |
| Catalog number | V113A |
| UPC | 722856069375 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
