Marathon Electric General Purpose Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254TC Frame, TEFC
Regular price
$2,499.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

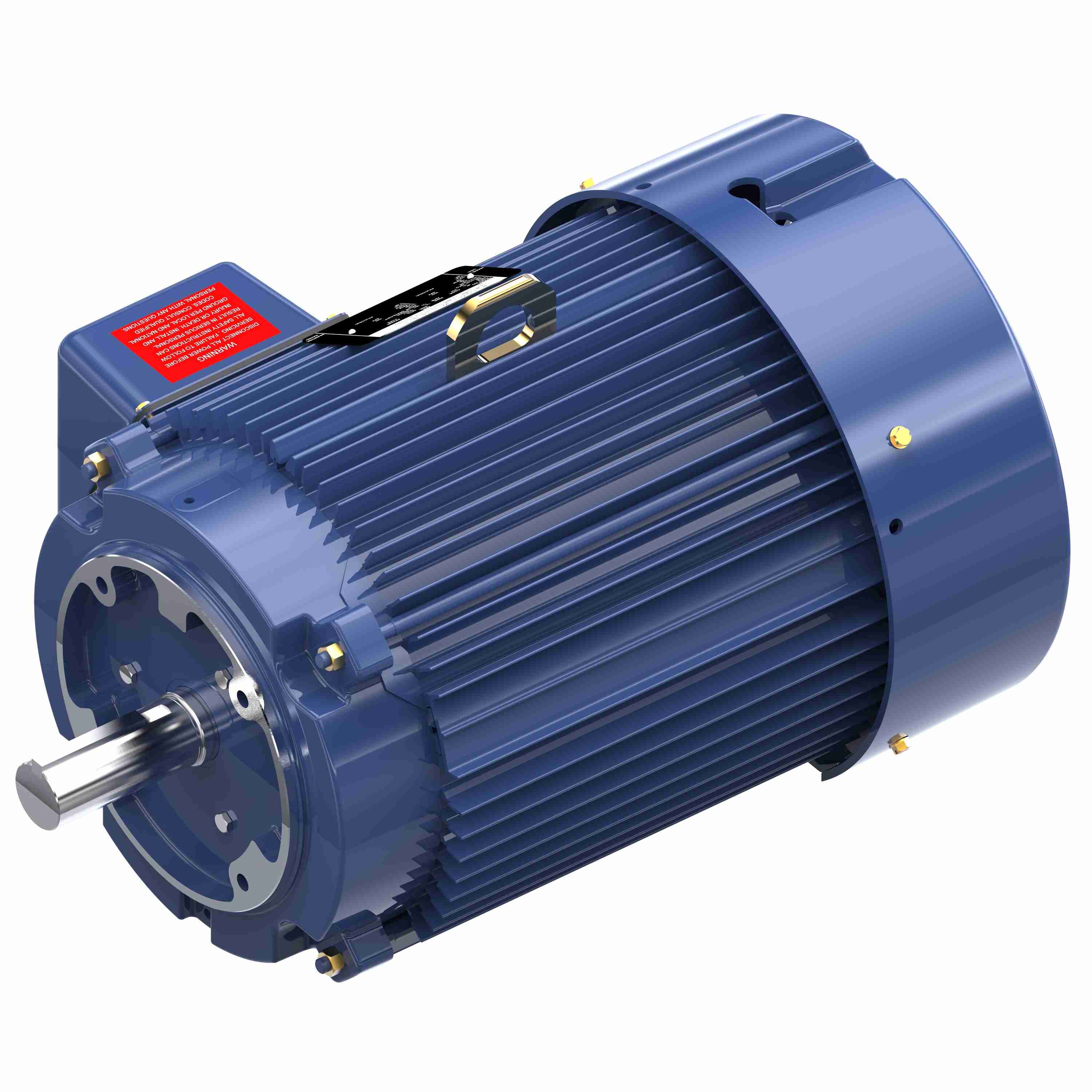

General Purpose Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254TC Frame, TEFC
Features
- Ball bearings, mechanically locked on shaft end
- Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
- Motor will not accept a brake kit
- Aluminum frame construction
Specifications
| Performance & Electrical | |
| Power | 15 HP |
| Power (dual rating) | 15 & 10 HP |
| Power | 11.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1775 RPM |
| Speed (dual) | 1775 & 1478 RPM |
| Full-load current | 37.5/18.8 A |
| Current (dual) | 37.5/18.8 & 31/15.5 A |
| Nominal efficiency | 92.4% |
| Power factor | 81% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | ACROSS THE LINE |
| Main winding resistance | .649 Ω |
| Frame & Mechanical | |
| Frame | 254TC |
| Frame size | 254 |
| Frame suffix | TC |
| Frame material | ALUMINUM |
| Frame length | 12 in |
| Enclosure | TEFC |
| IP rating | IP43 |
| Insulation class | F3 |
| Mounting | ROUND |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1 5/8 in |
| Shaft extension | 3.75 in |
| Shaft type | T |
| C dimension | 24.02 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6208 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | A-EE7308 |
| Outline drawing | B-SS321108-1200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 39.00 × 32.25 × 19.61 in |
| Weight | 261.00 lb |
| Identification | |
| Manufacturer part / model | 254TTFL16039 |
| Catalog number | C227B |
| UPC | 722856050557 |
| Product line | XRI® General Purpose |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
