Marathon Electric Close-Coupled Pump Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254JMV Frame, DP
Regular price
$2,338.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

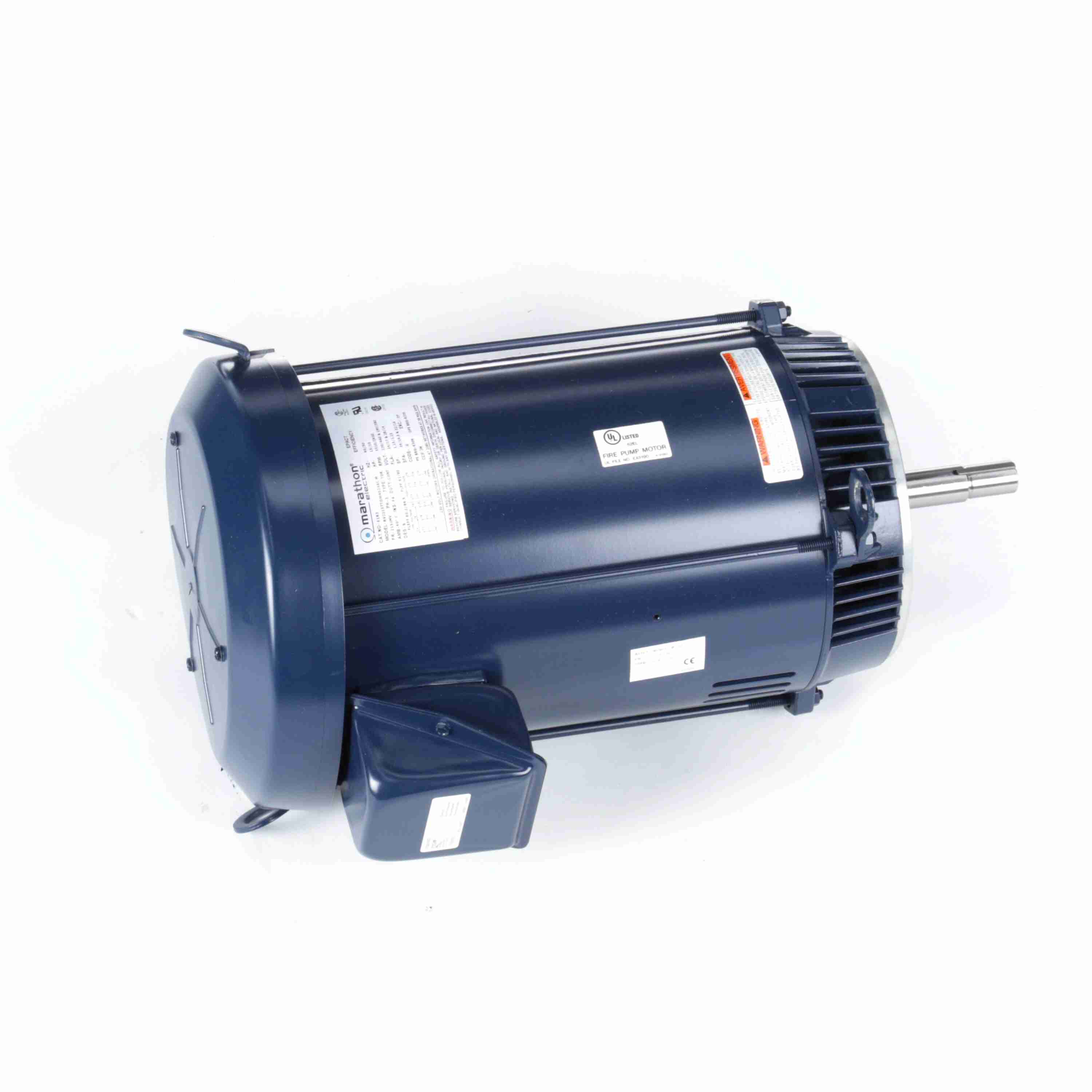

Close-Coupled Pump Motor, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254JMV Frame, DP
Features
- NEMA JM pump shaft dimensions
- JMV frame includes drip cover for vertical mount without base
- JM frame has rigid base, drip cover included
- Mechanically locked on shaft end
- Continuous duty
- Class B insulation
Specifications
| Performance & Electrical | |
| Power | 15 HP |
| Power (dual rating) | 15 & 10 HP |
| Power | 11.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1768 RPM |
| Speed (dual) | 1768 & 1470 RPM |
| Full-load current | 38.0/18.9 A |
| Current (dual) | 38/18.9 & 33/16.5 A |
| Nominal efficiency | 93% |
| Power factor | 79.9% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | .515 Ω |
| Frame & Mechanical | |
| Frame | 254JMV |
| Frame size | 254 |
| Frame suffix | JMV |
| Frame material | Rolled Steel |
| Enclosure | Drip Proof |
| IP rating | IP12 |
| Insulation class | B |
| Mounting | Round |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Shaft Down |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 5.28 in |
| Shaft type | JM |
| C dimension | 25.05 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6207 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308K |
| Outline drawing | 610-0014-1300 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.50 × 16.81 × 14.75 in |
| Weight | 284.00 lb |
| Identification | |
| Manufacturer part / model | 254TTDR16027 |
| Catalog number | E188A |
| UPC | 722856051011 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Substitute part | 254TTDBD6044 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
