Marathon Electric Inverter (Vector) Duty Motor
Regular price
$5,573.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

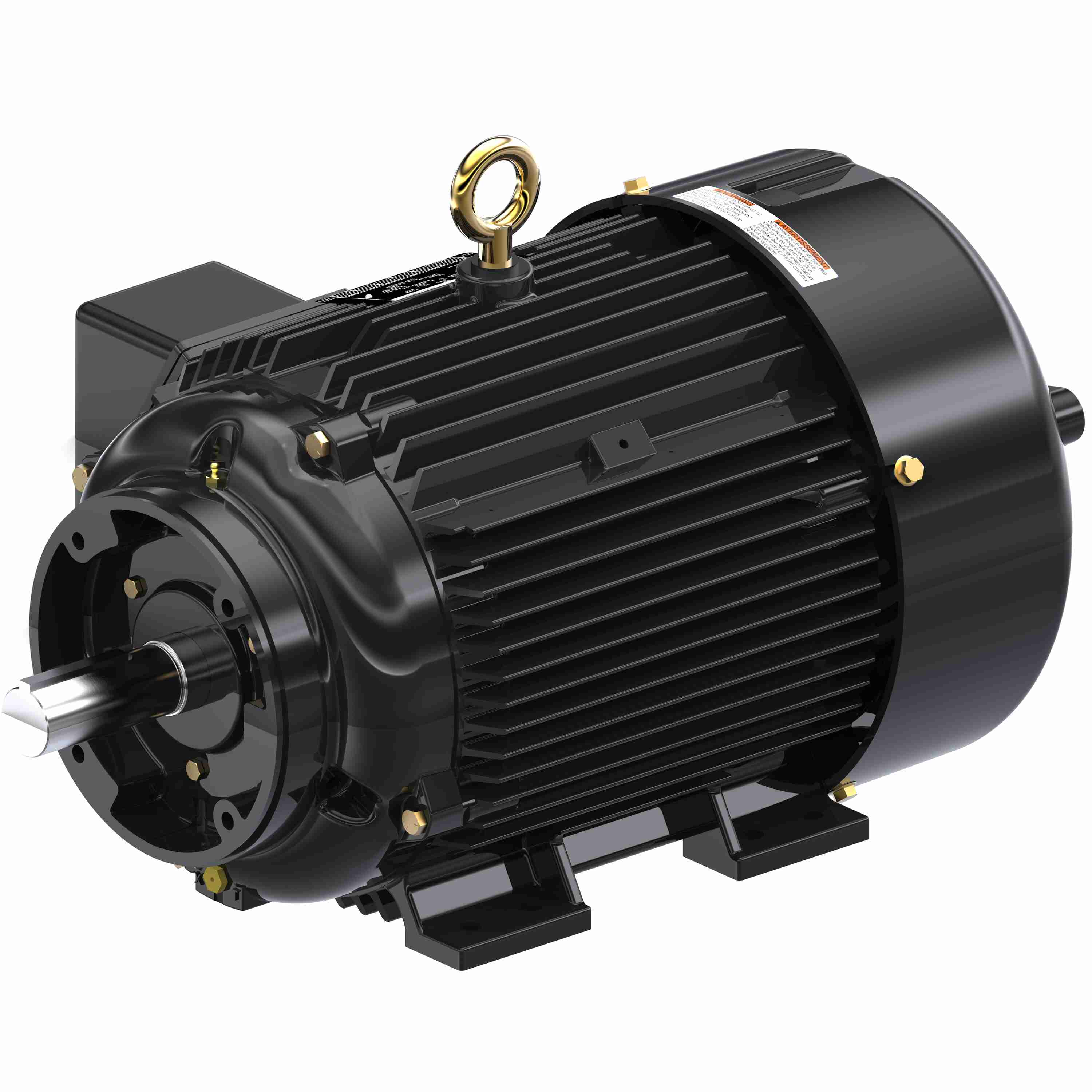

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- Ultra Efficient™ Premium-Plus exceeds NEMA Premium® (IE4)
- Class H MAX GUARD® insulation system
- Cast iron construction for rigidity and reduced vibration
- IP54 ingress protection (IP55 or IP56 available)
- Premium Severe Duty, TEFC
- Normally closed thermostats (one per phase, Class F)
- High power density, low weight design, Optional terminal block shown
- Provisions for optional “BCP” (Bearing Current Protection)
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.75 × 21.75 × 18.00 in |
| Weight | 392.00 lb |
| Identification | |
| Manufacturer part / model | 254TPFSA10088 |
| Catalog number | SY010 |
| UPC | 722856025784 |
| Product line | Black Max®-PM |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.4000 |
| Substitute part | 825201.00 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
