TXT325ET FLANGE MOUNT REDUCER
Regular price
$3,259.80 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

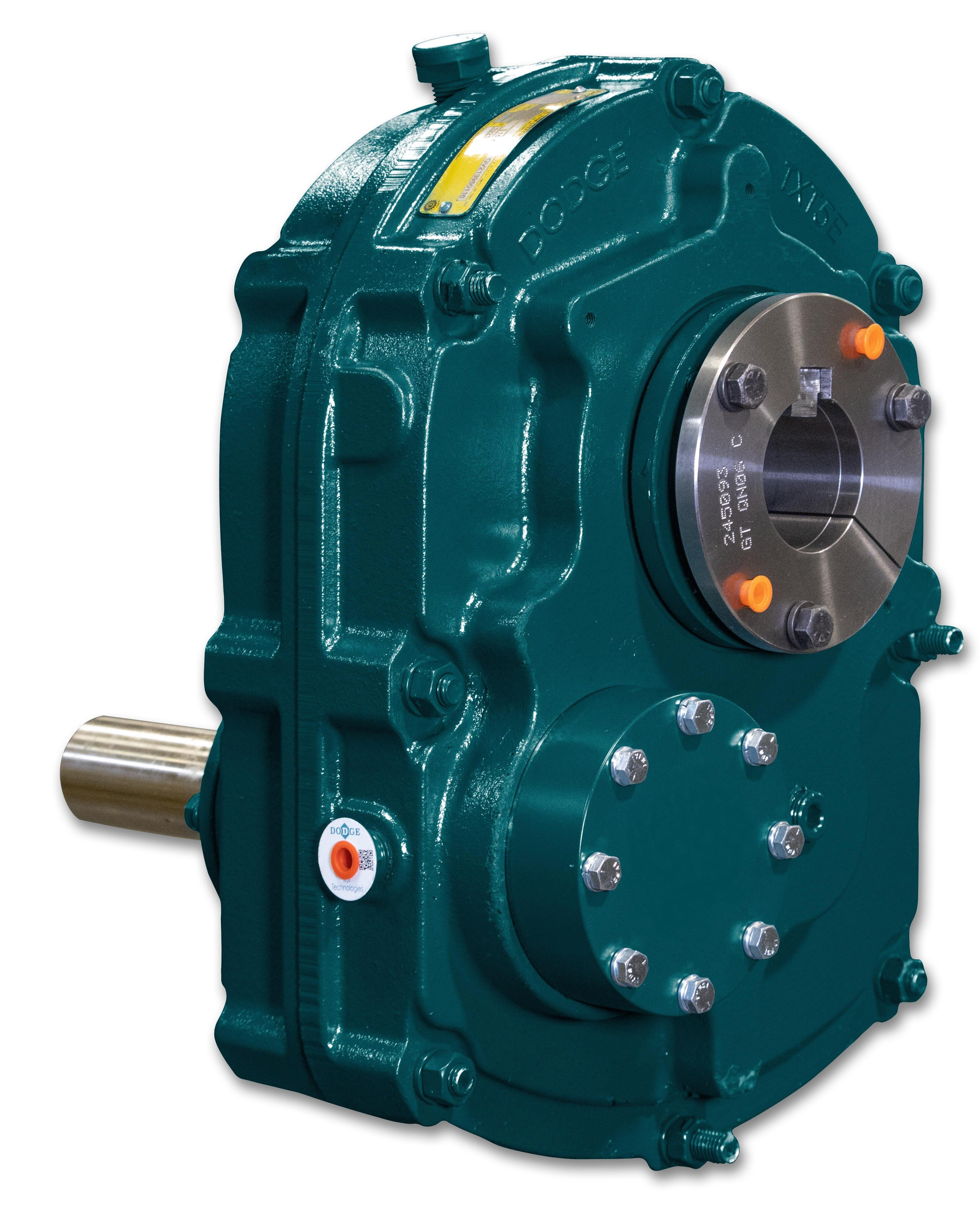

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TXT325ET FLANGE MOUNT REDUCER
| Specifications | |
|---|---|
| AGMA Size | 203 |
| Bore Diameter (Maximum) | 2.1875 in |
| Bore Length Output | 9.21 in |
| Bushing Required | Yes |
| Case Size | 3 |
| Depth | 11.55 in |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.25 in |
| Maximum Speed Input | 2100 RPM |
| Output Style | Hollow Bore |
| Reduction Type | Double Stage |
| Screw Conveyor Compatible | No |
| Seal Type | Double-Lip Contact |
| Sheave Diameter Minimum | 4 in |
| Suitable For Washdown | No |
| Actual Ratio | 24.71 |
| Nominal Ratio | 25 |
