Marathon Electric Close-Coupled Pump Motor, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215JMV Frame, DP
Regular price
$1,597.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

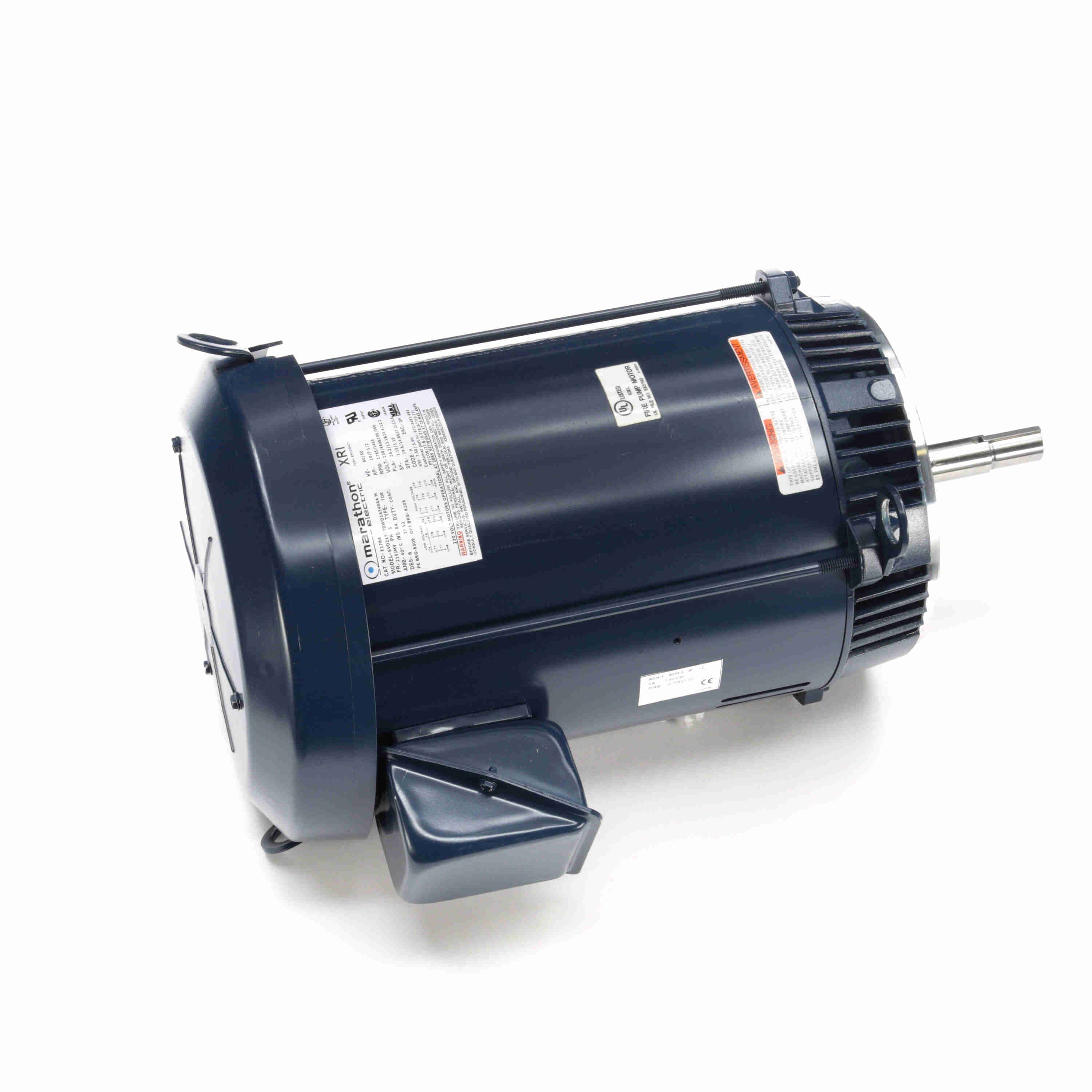

Close-Coupled Pump Motor, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215JMV Frame, DP
Features
- NEMA JM pump shaft dimensions
- JMV frame includes drip cover for vertical mount without base
- JM frame has rigid base, drip cover included
- Mechanically locked on shaft end
- Continuous duty
- Class B insulation
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 & 7.50 HP |
| Power | 7.5 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1765 RPM |
| Speed (dual) | 1765 & 1465 RPM |
| Full-load current | 26.2/13.1 A |
| Current (dual) | 26.2/13.1 & 24.4/12.2 A |
| Nominal efficiency | 91.7% |
| Power factor | 77.8% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | H |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | 1.022 Ω |
| Frame & Mechanical | |
| Frame | 215JMV |
| Frame size | 215 |
| Frame suffix | JMV |
| Frame material | Rolled Steel |
| Frame length | 11.15 in |
| Enclosure | Drip Proof |
| IP rating | IP12 |
| Insulation class | B |
| Mounting | Round |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Shaft Down |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 4.25 in |
| Shaft type | JM |
| C dimension | 20.44 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | SS86596-1115 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.50 × 16.81 × 14.75 in |
| Weight | 134.00 lb |
| Identification | |
| Manufacturer part / model | 215TTDWD16349 |
| Catalog number | E178A |
| UPC | 722856051004 |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
