Marathon Electric Inverter (Vector) Duty Motor
Regular price
$4,464.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

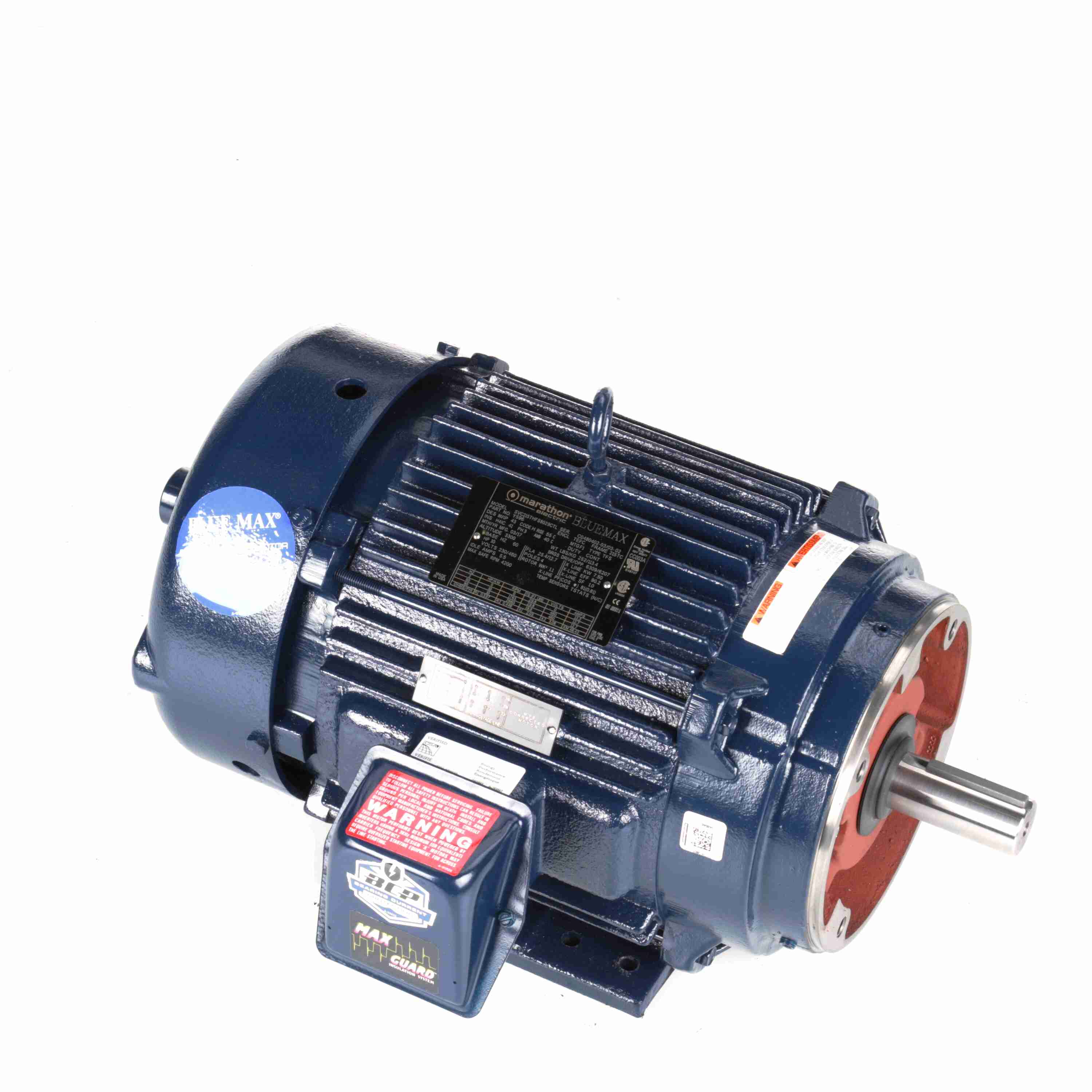

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor
Features
- Cast iron frame and brackets; Patented “fracket” design (TEBC enclosure)
- Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque
- Constant HP operation to twice base speed (143-256 frame); 1.5 times base (all others)
- MAX GUARD® Class H insulation system with CR200 corona resistant magnet wire; Continuous duty at 40° C ambient; Normally closed thermostats (one per phase, class F)
- Optimized for operation with IGBT inverter (NEMA Design A)
- Encoder provisions included on opposite drive end (see modification and/or accessory kits sections)
- Ball bearings (roller bearing available 360 frame & larger)
- Field reversible to F2; Encoder provisions included on opposite drive end (see modification and/or accessory kits sections)
- Bearing current protection (BCP), mounted internally
- UL® Recognized & CSA certified and CE® Mark
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.00 × 21.00 × 22.00 in |
| Weight | 325.00 lb |
| Identification | |
| Manufacturer part / model | 215THTCD8038 |
| Catalog number | Y566A |
| UPC | 722856214478 |
| Product line | Blue Max® |
| Country of origin | Mexico |
| Substitute part | 810140.00 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
