Marathon Electric General Purpose Farm Duty Motor, 7.50 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ Frame, TEFC
Regular price
$2,503.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

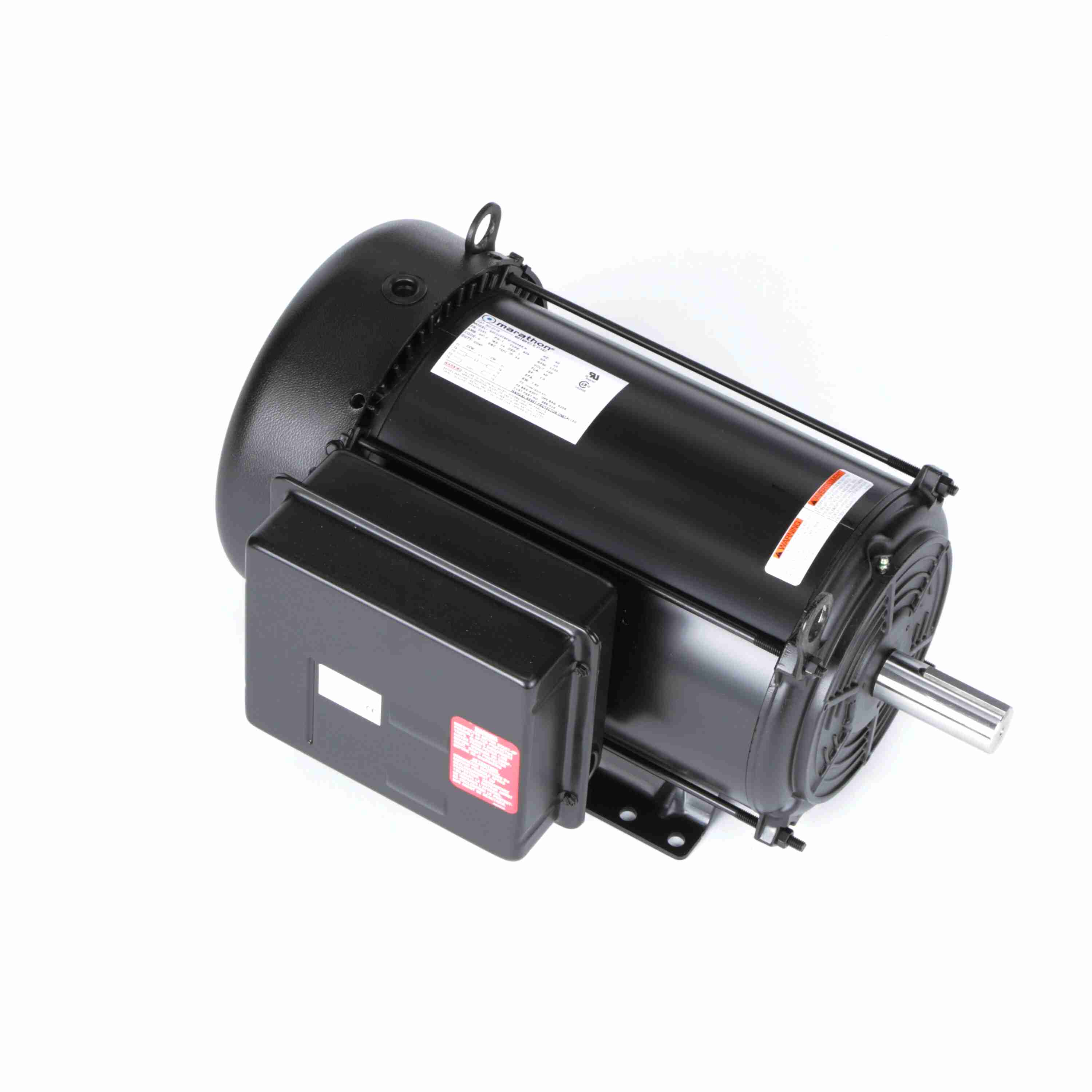

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Farm Duty Motor, 7.50 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ Frame, TEFC
Features
- 213/215TZ models have 1-1/8” shaft, 182TZ model has 7/8” shaft
- Manual reset thermal protector
- Condensate drains
- Capacitor start/capacitor run design for reduced amperage
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7.50 HP |
| Power | 5.6 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1750 RPM |
| Speed (dual) | 1750 RPM |
| Full-load current | 30.5 A |
| Current (dual) | 30.5 A |
| Nominal efficiency | 85.5% |
| Power factor | 95% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | .215 Ω |
| Frame & Mechanical | |
| Frame | 215TZ |
| Frame size | 215 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 12.4 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 3.5 in |
| Shaft type | Single Special Extension |
| C dimension | 21.09 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Manual |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized ( Not Protector) |
| Connection drawing | A-EE9048RC |
| Outline drawing | A-SS86671-1240 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.50 × 16.81 × 14.00 in |
| Weight | 155.00 lb |
| Identification | |
| Manufacturer part / model | 215TBFW7028 |
| Catalog number | Z115 |
| UPC | 722856261151 |
| Product line | Chore ® |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
