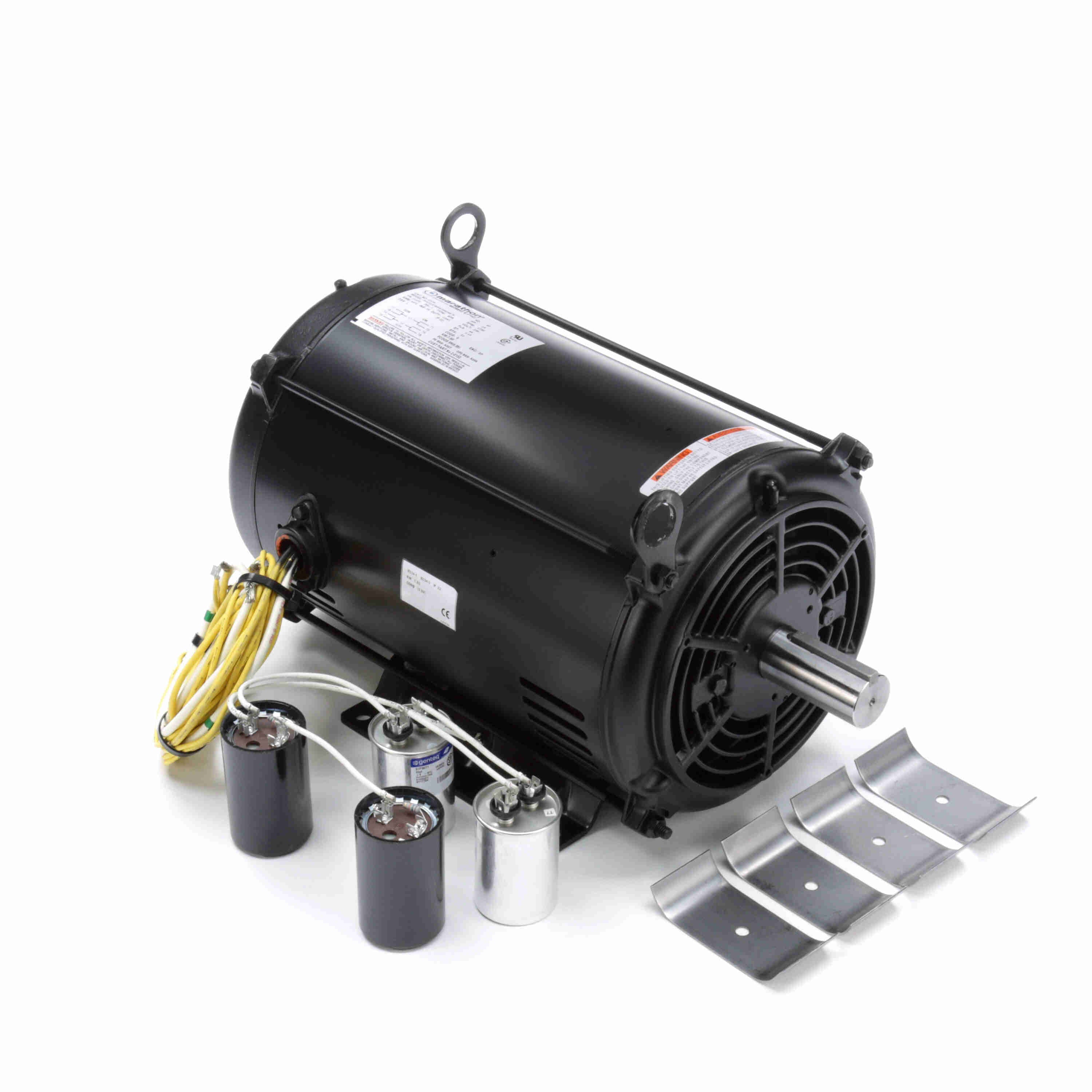

Marathon Electric Fan and Blower Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ Frame, DP
Regular price
$2,431.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Fan and Blower Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ Frame, DP
Features
- Capacitor start/capacitor run design for high starting torque and low amps
- Mechanically locked on shaft end
- 84” leads
- Heavy gauge steel frame and base
- Shafts are 1” longer than NEMA standard for extra clearance
- Rodent screens
- Thermostats for thermal overload protection
- UL recognized and CSA certified
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1730 RPM |
| Speed (dual) | 1730 RPM |
| Full-load current | 44.0 A |
| Current (dual) | 44.0 A |
| Nominal efficiency | 82.5% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 215TZ |
| Frame size | 215 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 12.4 in |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 Only |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.88 in |
| Shaft type | Single Special Extension |
| C dimension | 18.70 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE9048LP |
| Outline drawing | A-SS88464-1240 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.50 × 16.75 × 14.75 in |
| Weight | 158.00 lb |
| Identification | |
| Manufacturer part / model | 215TBDW7362 |
| Catalog number | Z126 |
| UPC | 722856037527 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
