Marathon Electric General Purpose Motor, 7.50 HP, 3 Ph, 60 Hz, 200 V, 1800 & 1800 RPM, 213T Frame, TEFC
Regular price
$1,377.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

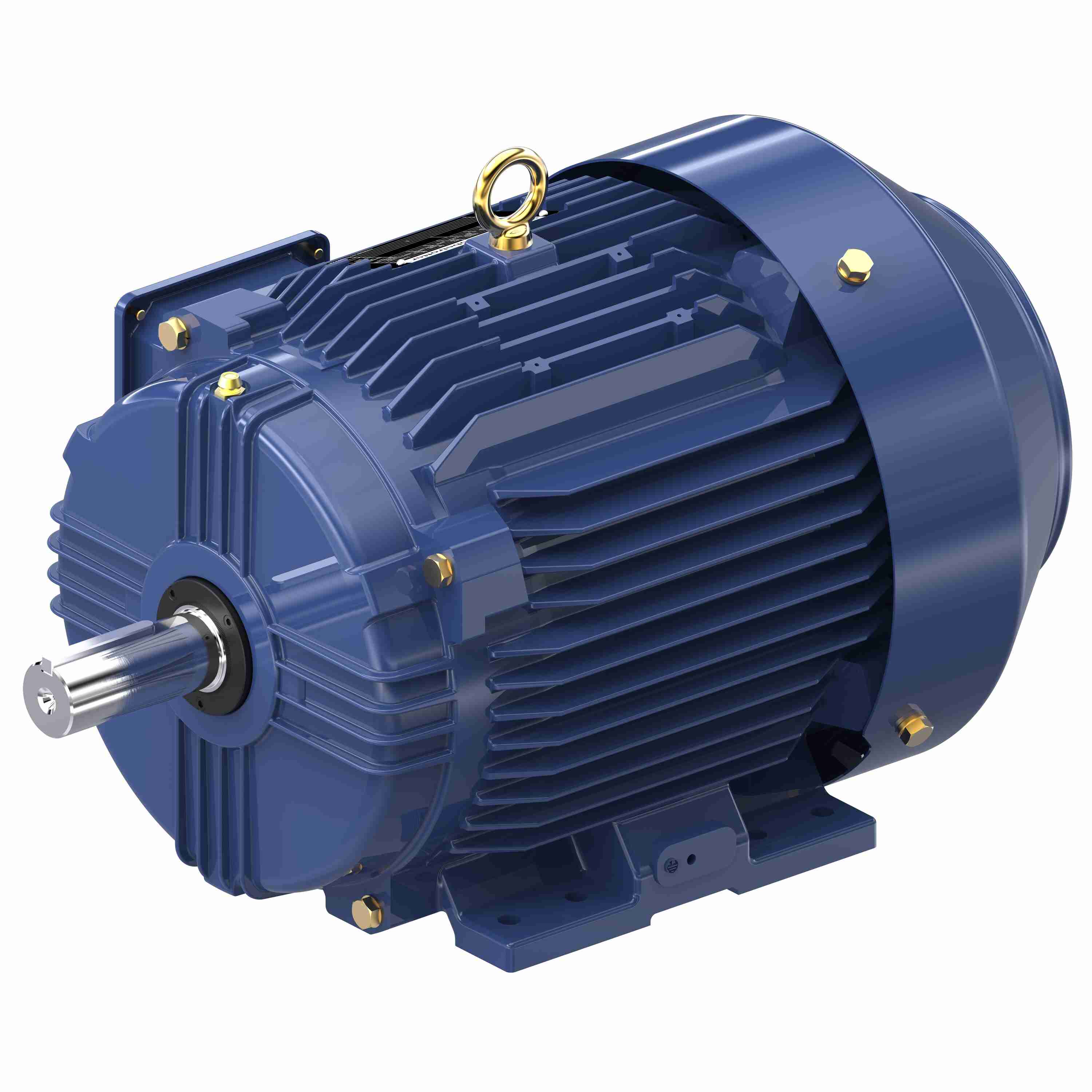

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 7.50 HP, 3 Ph, 60 Hz, 200 V, 1800 & 1800 RPM, 213T Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7.50 HP |
| Power | 5.6 kW |
| Voltage | 200 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1768 RPM |
| Speed (dual) | 1768 RPM |
| Full-load current | 21.9 A |
| Current (dual) | 21.9 A |
| Nominal efficiency | 91.7% |
| Power factor | 79.3% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | H |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 1.473 Ω |
| Frame & Mechanical | |
| Frame | 213T |
| Frame size | 213 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft type | T |
| Drive-end bearing | 6308 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6208 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Listed |
| Hazardous location | DIVISION 2 T2B |
| Connection drawing | EE7300 |
| Outline drawing | SS620702-100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 26.50 × 18.00 × 14.38 in |
| Weight | 194.00 lb |
| Identification | |
| Manufacturer part / model | 213TTFCD6039 |
| Catalog number | GT1816 |
| UPC | 722856181817 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| Substitute part | TE135 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
