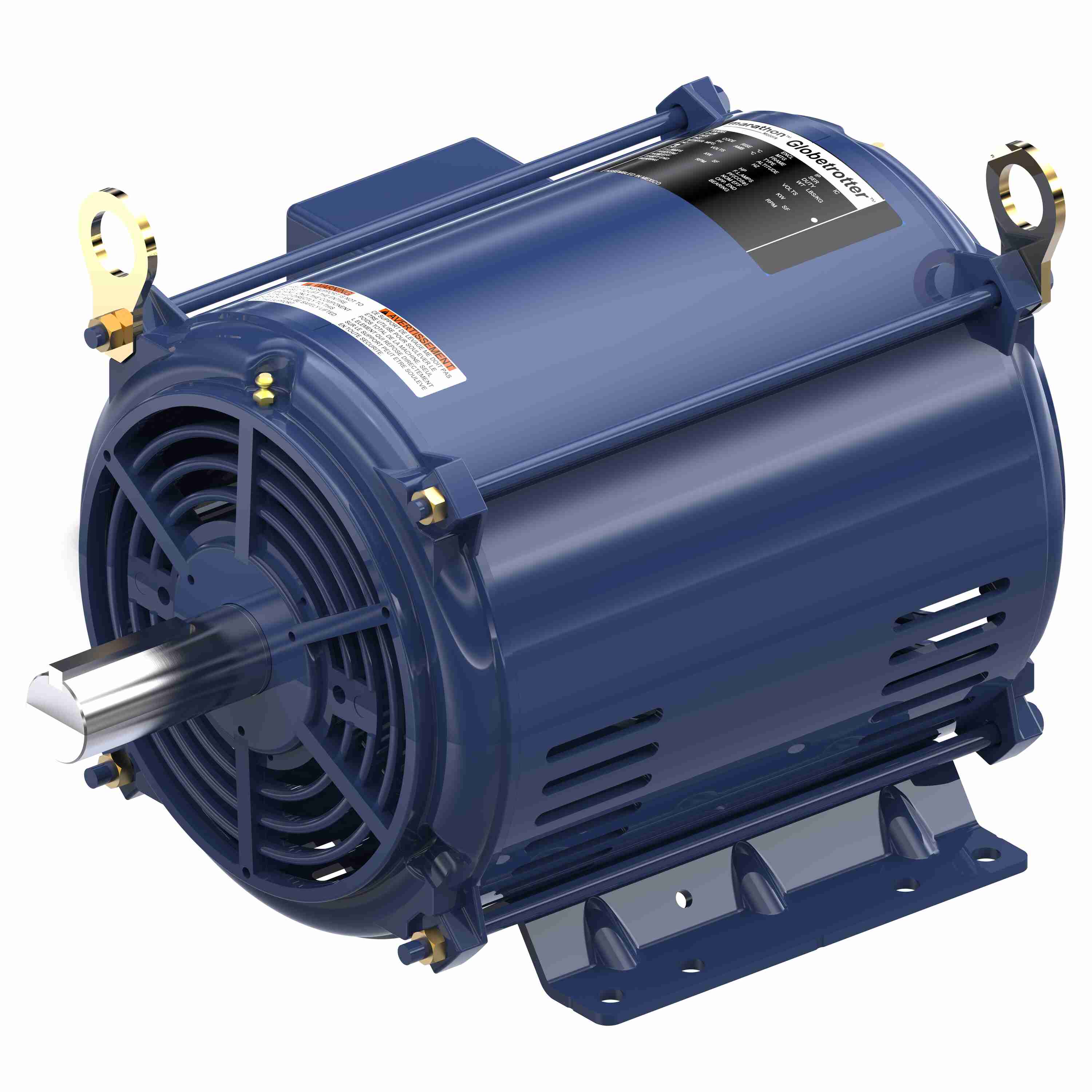

Marathon Electric 50 Hz Motor, 7.50 HP, 3 Ph, 50 Hz, 190-200-208/380-400-415 V, 1500 RPM, 213T Frame, DP
Regular price
$1,454.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
50 Hz Motor, 7.50 HP, 3 Ph, 50 Hz, 190-200-208/380-400-415 V, 1500 RPM, 213T Frame, DP
Features
- Nameplated 190-200-208/380-400-416
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7.50 HP |
| Power | 5.6 kW |
| Voltage | 190-200-208/380-400-415 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 1460 RPM |
| Speed (dual) | 1460 RPM |
| Full-load current | 23.2-23.0-22.6/11.6- A |
| Current (dual) | 23.2-23.0-22.6/11.6- A |
| Nominal efficiency | 87.7% |
| Power factor | 79% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | J |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Part Wdg Start Low Volt Only & Wye Start Delta Run |
| Main winding resistance | 1.39 Ω |
| Frame & Mechanical | |
| Frame | 213T |
| Frame size | 213 |
| Frame suffix | T |
| Frame material | Rolled Steel |
| Frame length | 11.15 in |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.47 in |
| Shaft type | T |
| C dimension | 17.30 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7358 |
| Outline drawing | A-SS86500-1115 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.50 × 16.81 × 14.75 in |
| Weight | 106.00 lb |
| Identification | |
| Manufacturer part / model | 213TTDW7053 |
| Catalog number | H955 |
| UPC | 722856043566 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
