20AZ25H14 TIGEAR-2 E-Z KLEEN REDUCER - Dodge
Regular price
$2,123.80 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

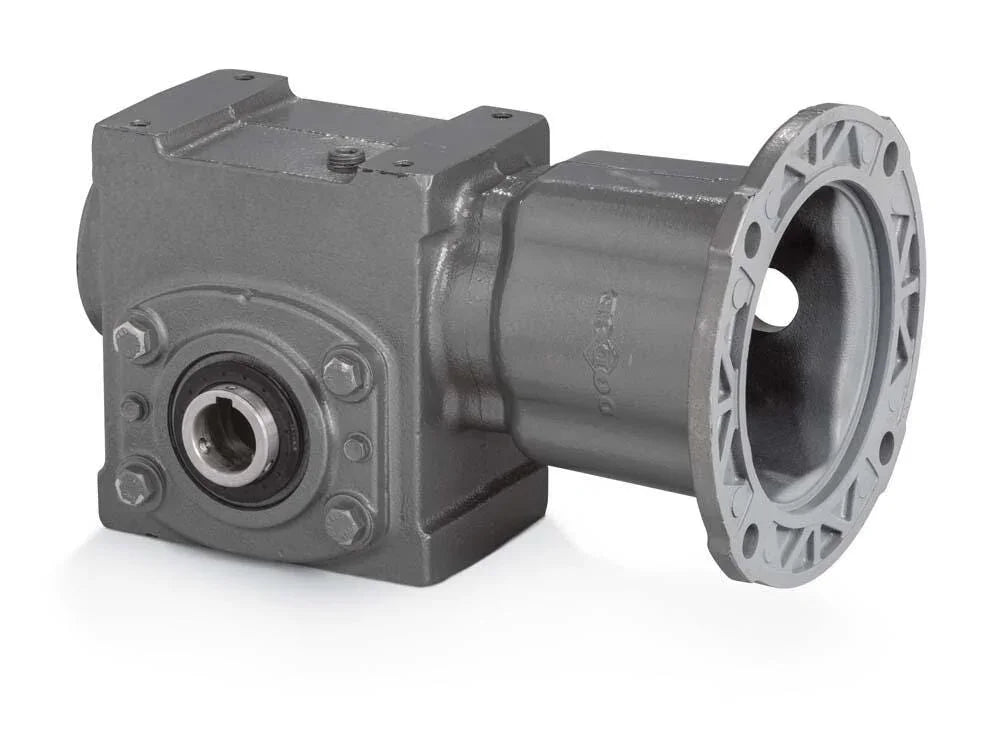

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 E-Z KLEEN REDUCER
| Specifications | |
|---|---|
| Base to Output Center Height | 2.24 in |
| Bore Diameter (Output) | 1.25 in |
| Bore Length | 5.7 in |
| Bushing Required | Optional |
| Case Size | 20 |
| Center Distance | 2 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 1.52 HP |
| Horsepower Rating Output | 1.21 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 5 in |
| Mounting Bolt Pattern Width | 2.88 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 7.83 in |
| Output Style | Hollow Bore |
| Overhung Load | 1560 lbf |
| Paint Type | Stainless Epoxy |
| Rated Torque Output | 1085 in-lb |
| Seal Type | Two-Piece Harsh Duty |
| Suitable For Washdown | Yes |
| Thermal Horsepower Rating | 2.82 HP |
| Actual Ratio | 25 |
| Nominal Ratio | 25 |
