202S30L TIGEAR-2 REDUCER W/EXT O/P SHAFT - Dodge
Regular price
$910.30 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

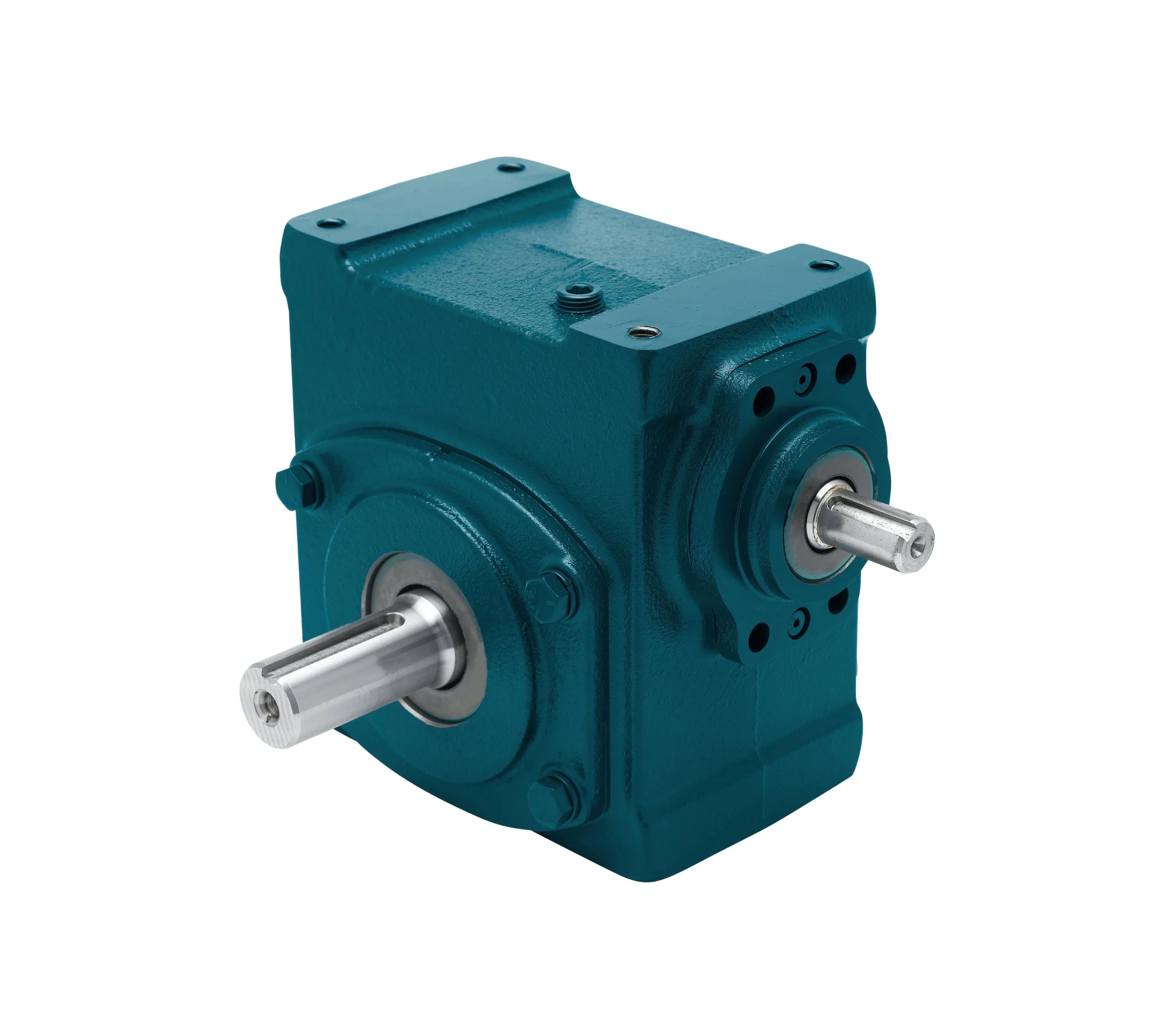

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER W/EXT O/P SHAFT
| Specifications | |
|---|---|
| Base to Output Center Height | 2.24 in |
| Case Size | 20 |
| Center Distance | 2 in |
| Center to End of Shaft Distance | 6.69 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 1.3 HP |
| Horsepower Rating Output | 1 HP |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 0.625 in |
| Input Shaft Length | 1.15 in |
| Lubrication | PAG, Standard Temperature |
| Mounting Bolt Pattern Length | 5 in |
| Mounting Bolt Pattern Width | 2.88 in |
| Output Orientation | Right-Angle |
| Output Shaft Location | Left |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 1 in |
| Output Shaft Length | 4.11 in |
| Overhung Load | 1560 lbf |
| Paint Type | Standard |
| Rated Torque Output | 1083 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 2.36 HP |
| Actual Ratio | 30 |
| Nominal Ratio | 30 |
