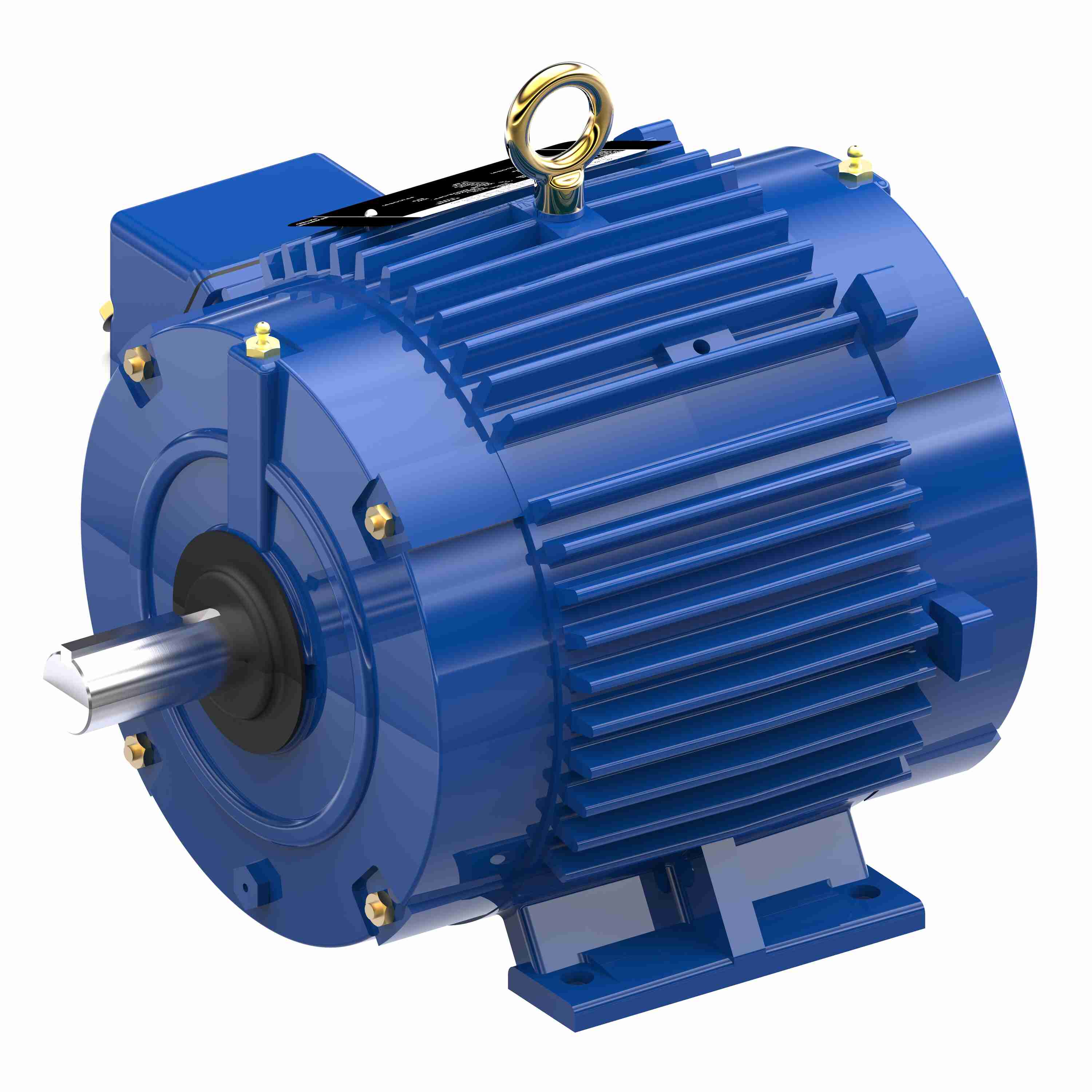

Marathon Electric Kiln Duty Motor, 2 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 184T Frame, TEAO
Regular price
$2,506.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Kiln Duty Motor, 2 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 184T Frame, TEAO
Features
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Internal and external epoxy paint
- CR200 Corona resistant magnet wire
- Class H insulation system
- Normally closed thermostats (one per phase, Class H)
- Heat stabilized ball bearings and high temperature grease
- Suitable for inverter use for 20:1 Variable Torque with 1.0 S.F. in 90°C ambient
- Suitable for 90OC ambient at 1.15 S.F. or 100OC ambient at 1.0 S.F.
- Extended grease tubes, Regreasable in service
- 8 Foot Leads
Specifications
| Performance & Electrical | |
| Power | 2 HP |
| Power (dual rating) | 2 HP |
| Power | 1.5 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1170 RPM |
| Speed (dual) | 1170 RPM |
| Full-load current | 3.0 A |
| Current (dual) | 3.0 A |
| Nominal efficiency | 87.5% |
| Power factor | 74% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | J |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 7.25 Ω |
| Frame & Mechanical | |
| Frame | 184T |
| Frame size | 184 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Frame length | 6.75 in |
| Enclosure | Totally Enclosed Air Over |
| IP rating | IP54 |
| Insulation class | H |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 90°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.81 in |
| Shaft type | T |
| C dimension | 13.74 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | Ball / Heat Stabilized |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball / Heat Stabilized |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7300T |
| Outline drawing | A-SS67889-675 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.50 × 16.75 × 14.75 in |
| Weight | 115.00 lb |
| Identification | |
| Manufacturer part / model | 184TTTS18577 |
| Catalog number | S504 |
| UPC | 722856042842 |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.4000 |
| Substitute part | 824574.00 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
