Marathon Electric Cooling Tower Motor, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 184TV Frame, TEAO
Regular price
$1,448.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

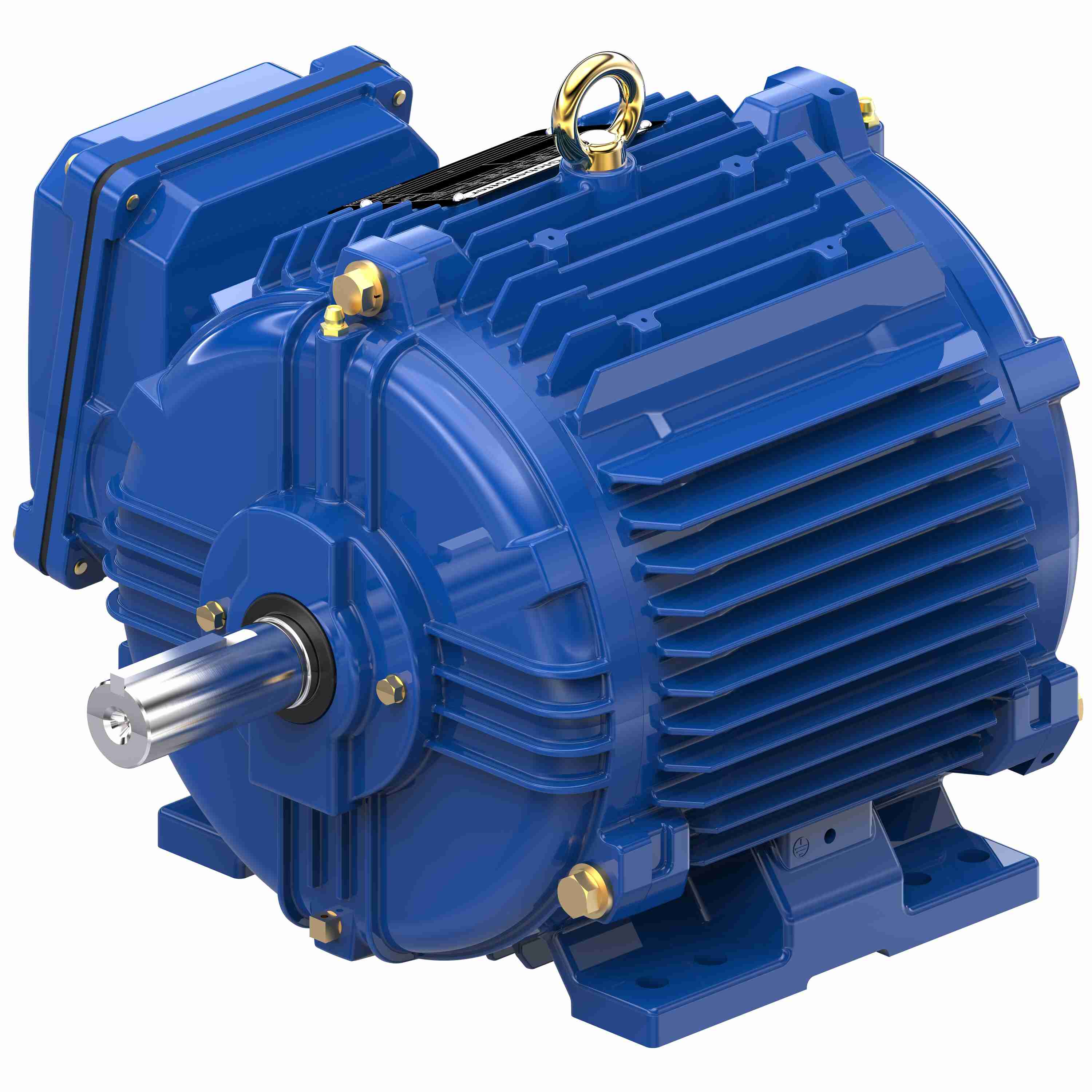

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cooling Tower Motor, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 184TV Frame, TEAO
Features
- IP-56 cast iron, Severe Duty, Meets or exceeds NEMA Premium®* efficiencies, NEMA Premium models are in compliance with EISA2008
- Class H Insulation System, Inverter duty 10:1 variable torque and 10:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
- F1/F2 capable, Dynamically balanced rotors, Cast Iron conduit box
- Dual Frame Mounting
- Modifications and Kits are available
- 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
- Plastic T Drains on both ends, Grease Fittings With Pipe Plugs on both ends
- Shaft Grounding Ring (SGR), Bearing Current Protection (BCP)™ Bearing caps, Precision balanced to .08”/sec
- Inpro/Seal® VBX® bearing isolators and slinger on drive end
- UL®* listed, UL certified for Canada and CE®* mark
Specifications
| Performance & Electrical | |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Nominal efficiency | 89.5% |
| Power factor | 80% |
| Service factor | 1.15 |
| Number of poles | 4 |
| NEMA design | B |
| KVA code | J |
| Duty | CONTINUOUS |
| Starting method | LINE OR INVERTER |
| Main winding resistance | 2.69 Ω |
| Frame & Mechanical | |
| Frame | 184TV |
| Frame material | CAST IRON |
| Enclosure | TEAO |
| IP rating | IP56 |
| Insulation class | H4 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL OR UP OR DOWN |
| Rotation | REV |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft type | T |
| Drive-end bearing | 6206 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | V - LI,ME-INS,CONST UL REC |
| Connection drawing | EE7308 |
| Outline drawing | SS600211-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.19 × 16.50 × 14.00 in |
| Weight | 102.00 lb |
| Identification | |
| Manufacturer part / model | 184TTTCD16545 |
| Catalog number | U1868A |
| UPC | 722856212047 |
| Product line | XRI®-SD |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
