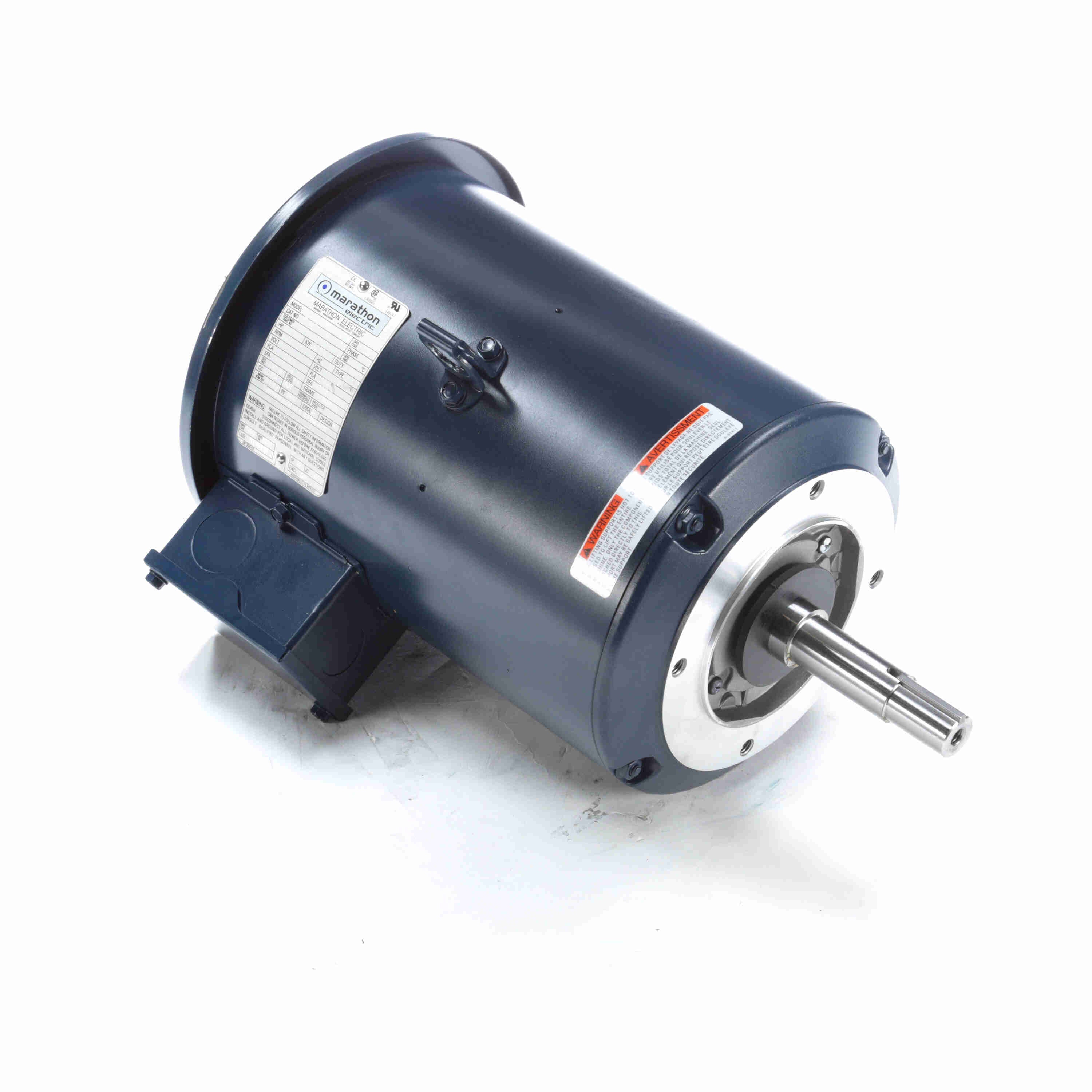

Marathon Electric Close-Coupled Pump Motor, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184JMV Frame, DP
Regular price
$1,271.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184JMV Frame, DP
Features
- NEMA JM pump shaft dimensions
- JMV frame includes drip cover for vertical mount without base
- JM frame has rigid base, drip cover included
- Mechanically locked on shaft end
- Continuous duty
- F1 mounting only, cannot reassemble to F2
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7.50 & 5 HP |
| Power | 5.6 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3490 RPM |
| Speed (dual) | 3490 & 2905 RPM |
| Full-load current | 17.8/8.9 A |
| Current (dual) | 17.8/8.9 & 15/7.5 A |
| Nominal efficiency | 88.5% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | A |
| KVA code | J |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 184JMV |
| Frame size | 184 |
| Frame suffix | JMV |
| Frame material | Rolled Steel |
| Frame length | 1.5 in |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | ROUND |
| Assembly / conduit box | F1 ONLY |
| Orientation | Shaft Down |
| Rotation | Selective Clockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 4.25 in |
| Shaft type | JM |
| C dimension | 17.12 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005010.01 |
| Outline drawing | 035568-1050 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 18.31 × 13.50 × 13.44 in |
| Weight | 90.00 lb |
| Identification | |
| Manufacturer part / model | 184TTDW16310 |
| Catalog number | E163B |
| UPC | 722856050960 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
