Marathon Electric General Purpose Motor, 5 & 4 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184T Frame, DP
Regular price
$1,159.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

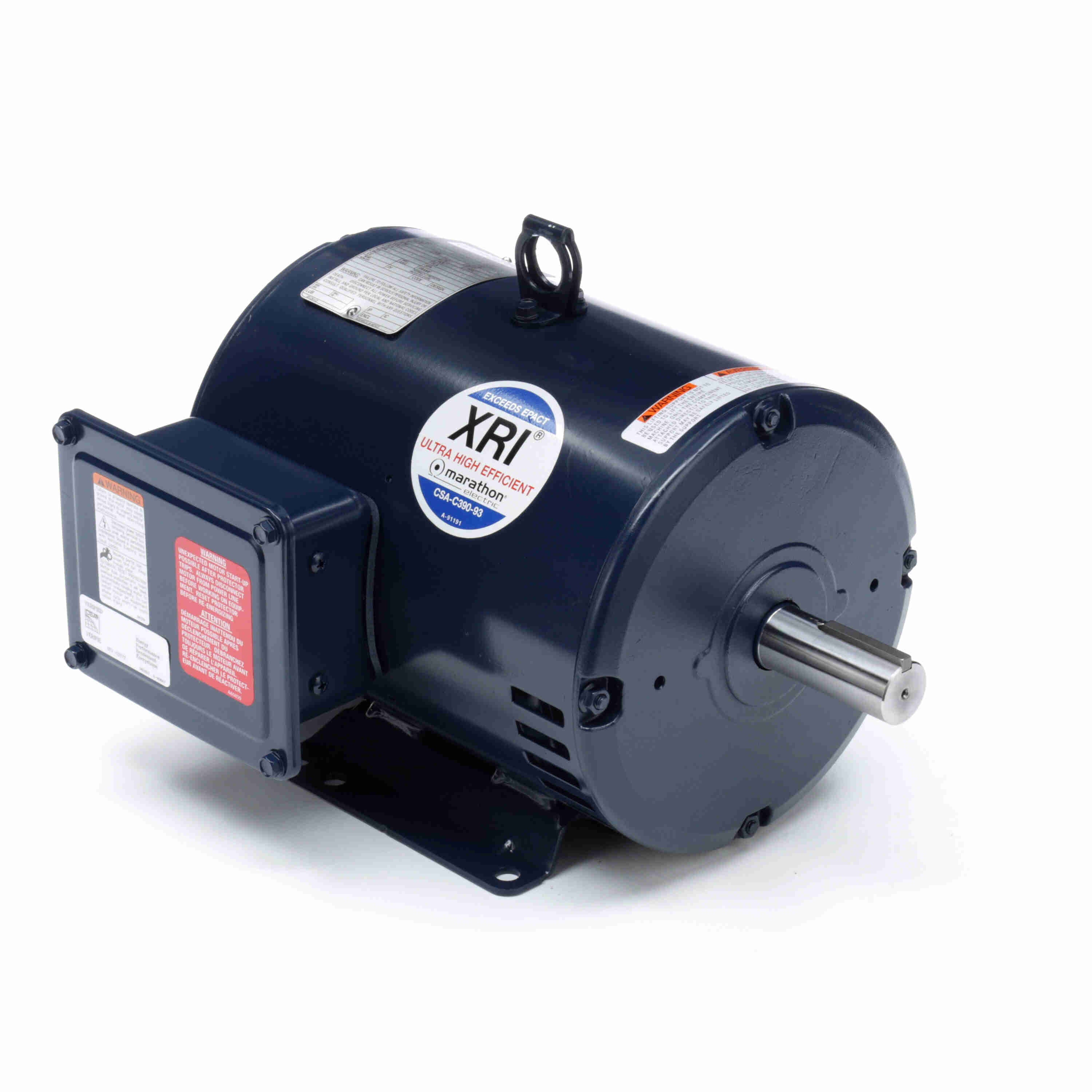

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 5 & 4 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184T Frame, DP
Features
- EISA compliant efficiency
- Motor will accept a C-face kit
- F1 mounting only, cannot reassemble to F2
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 & 4 HP |
| Power | 3.7 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1755 RPM |
| Speed (dual) | 1755 & 1460 RPM |
| Full-load current | 12.6/6.3 A |
| Current (dual) | 12.6/6.3 & 12.4/6.2 A |
| Nominal efficiency | 89.5% |
| Power factor | 83% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | J |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | ACROSS THE LINE |
| Frame & Mechanical | |
| Frame | 184T |
| Frame size | 184 |
| Frame suffix | T |
| Frame material | ROLLED STEEL |
| Frame length | 1 in |
| Enclosure | DP |
| IP rating | IP22 |
| Insulation class | F4 |
| Mounting | RIGID |
| Assembly / conduit box | F1 ONLY |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1 1/8 in |
| Shaft extension | 2.81 in |
| Shaft type | T |
| C dimension | 14.19 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | BALL |
| Overload protection | AUTOMATIC |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Q-INS, CONST, AUTO PRT UL REC |
| Connection drawing | 005020.02ME |
| Outline drawing | 035658-1000 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 17.94 × 13.06 × 12.88 in |
| Weight | 80.00 lb |
| Identification | |
| Manufacturer part / model | 184TTDW16038 |
| Catalog number | U428B |
| UPC | 722856011183 |
| Product line | XRI® General Purpose |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
