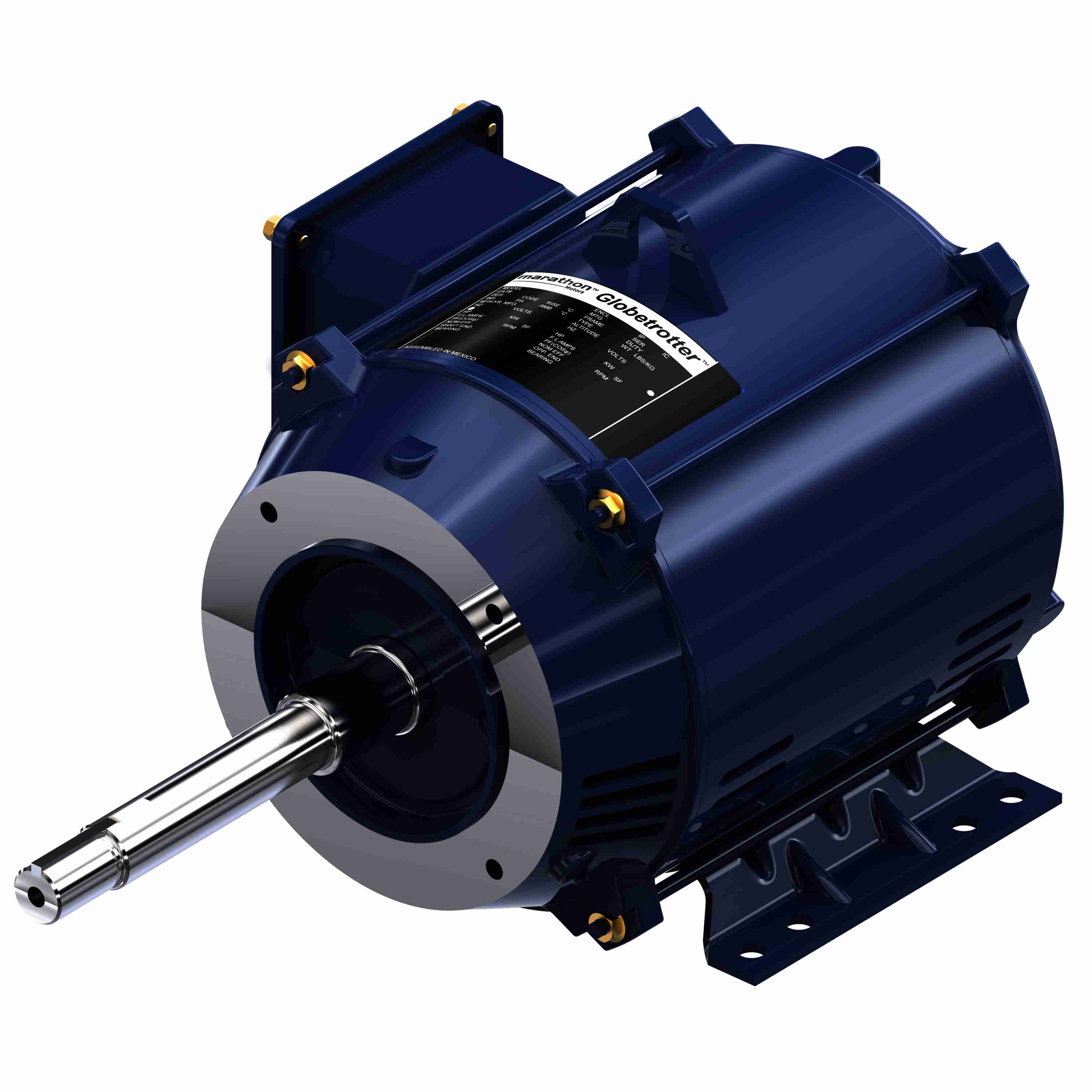

Marathon Electric Close-Coupled Pump Motor, 2 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 184JP Frame, DP
Regular price
$978.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 2 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 184JP Frame, DP
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Inverter Duty 20:1 Variable Torque and 4:1 Constant Torque
- Steel frame with Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
Specifications
| Performance & Electrical | |
| Power | 2 HP |
| Power (dual rating) | 2 HP |
| Power | 1.5 kW |
| Voltage | 575 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1175 RPM |
| Speed (dual) | 1175 RPM |
| Full-load current | 2.4 A |
| Current (dual) | 2.4 A |
| Nominal efficiency | 87.5% |
| Power factor | 70% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | L |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 5.9 Ω |
| Frame & Mechanical | |
| Frame | 184JP |
| Frame size | 184 |
| Frame suffix | JP |
| Frame material | Rolled Steel |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.25 in |
| Shaft type | JP |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7300 |
| Outline drawing | SS600205-200 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 21.70 × 14.37 × 12.83 in |
| Weight | 76.00 lb |
| Identification | |
| Manufacturer part / model | 184TTDBD6095 |
| Catalog number | GT2508A |
| UPC | 722856069030 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
