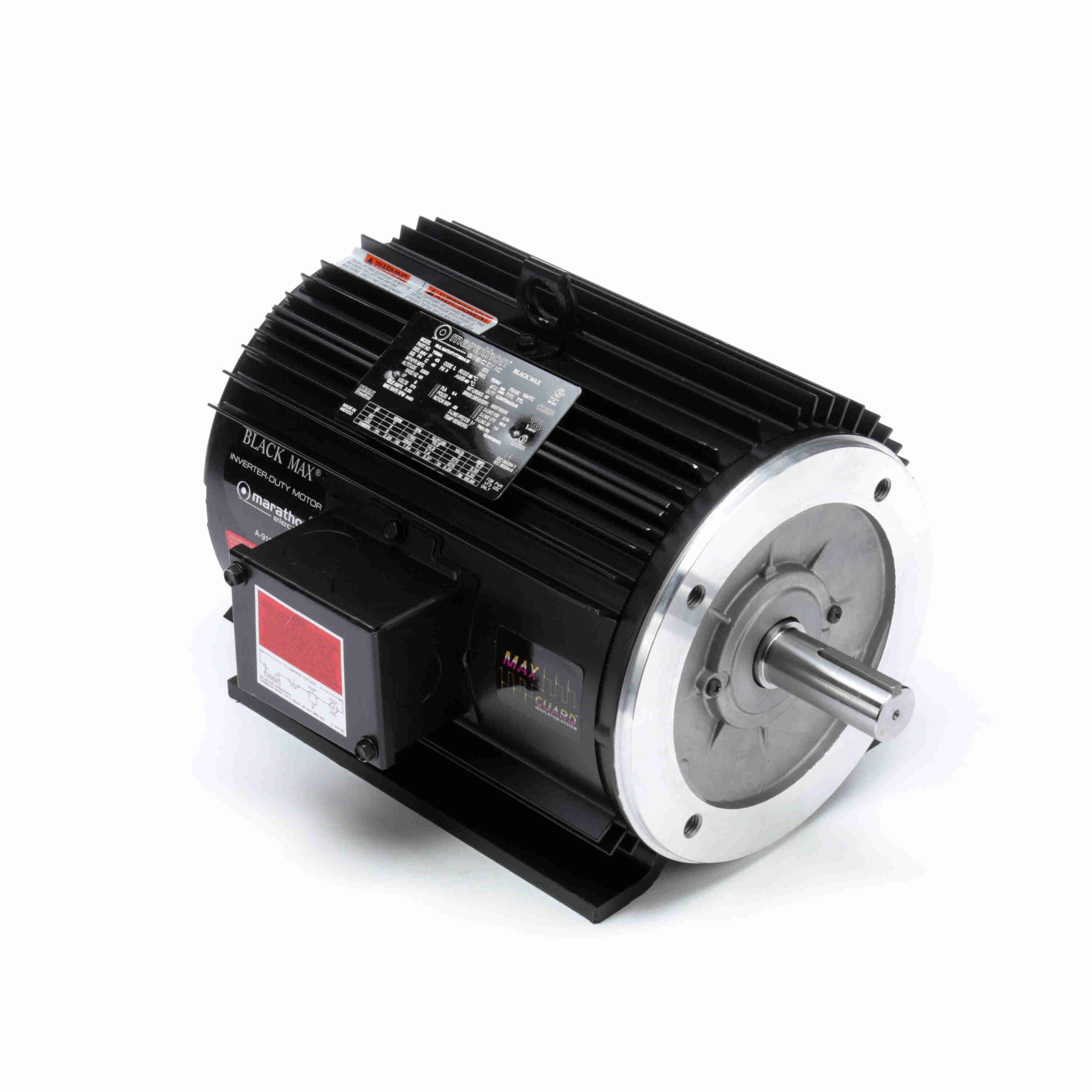

Marathon Electric Speed Ratio Motor, 5 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, 184TC Frame, TENV
Regular price
$2,754.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Speed Ratio Motor, 5 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, 184TC Frame, TENV
Features
- MAX GUARD® Class F insulation system
- Constant Torque operation from 0 to base speed on Vector Drive
- Constant Horsepower operation up to twice base RPM
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, Class F)
- Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections)
- Aluminum frame construction
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 HP |
| Power | 3.7 kW |
| Voltage | 575 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1760 RPM |
| Speed (dual) | 1760 RPM |
| Full-load current | 5.4 A |
| Current (dual) | 5.4 A |
| Nominal efficiency | 89.5% |
| Power factor | 79% |
| Service factor | 1 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | INV |
| KVA code | L |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Duty |
| Starting method | Inverter Only |
| Main winding resistance | 2.15 Ω |
| Frame & Mechanical | |
| Frame | 184TC |
| Frame size | 184 |
| Frame suffix | TC |
| Frame material | Aluminum |
| Frame length | 11. in |
| Enclosure | Totally Enclosed Non Ventilated |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.62 in |
| Shaft type | T |
| C dimension | 17.69 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005102.13ME |
| Outline drawing | 036109ME-1100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 20.44 × 13.00 × 14.94 in |
| Weight | 95.90 lb |
| Identification | |
| Manufacturer part / model | 184THTY7736 |
| Catalog number | Y559A |
| UPC | 722856132475 |
| Product line | Black Max® Inverter Duty |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
