Marathon Electric Crop Dryer Motor, 5 & 7 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 184TZ Frame, DPAO
Regular price
$1,459.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

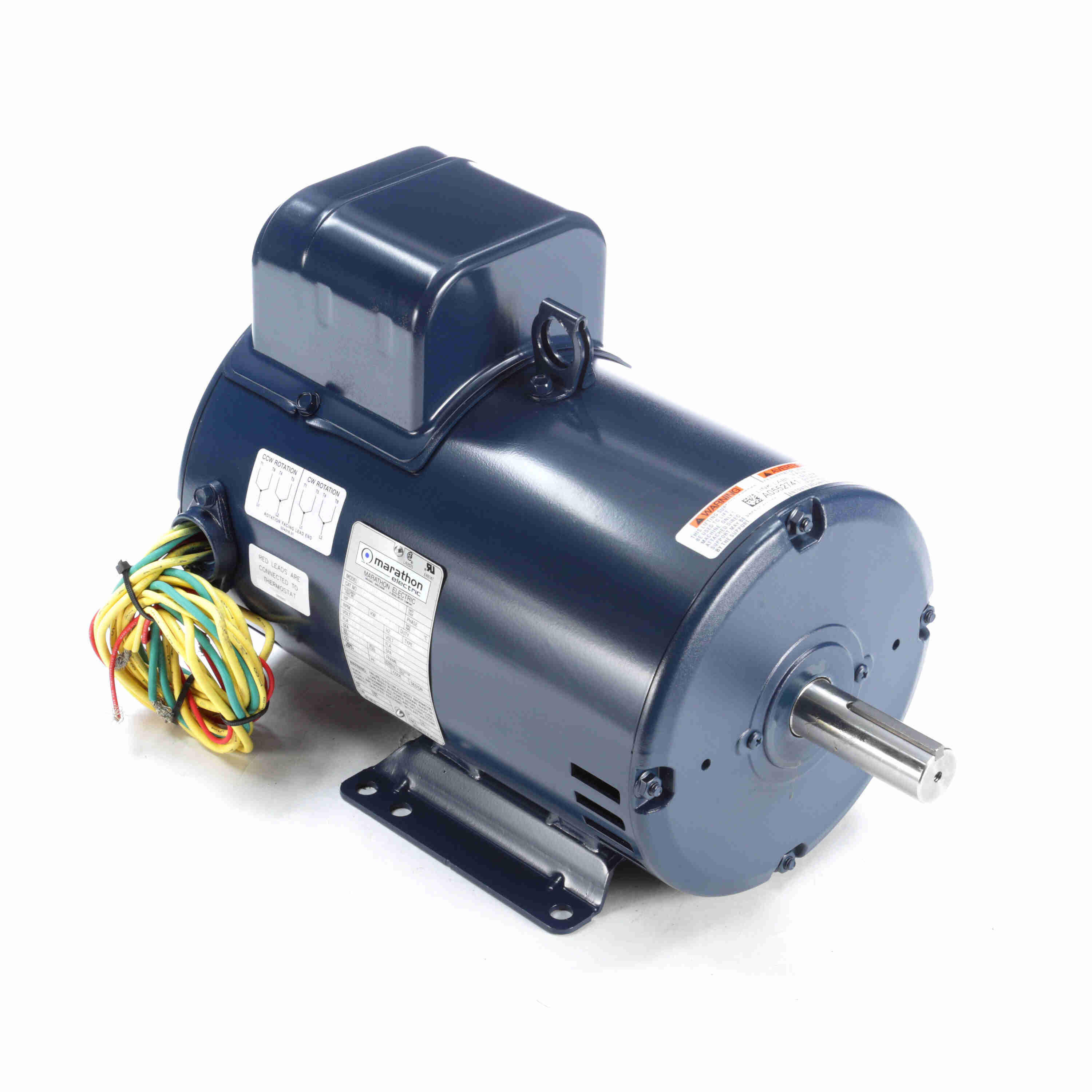

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crop Dryer Motor, 5 & 7 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 184TZ Frame, DPAO
Features
- Double sealed ball bearings
- Continuous duty
- Class F insulation
- Thermostats for thermal overload protection (auto reset protector on Z304)
- 34” long leads for ease of installation
- Keyed shafts with 1/4”-20 UNC tapped hole in end
- Capacitors included
- Extra nameplate included, loose, for remote mounting
- Capacitor start induction run design
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 & 7 HP |
| Power | 3.7 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3535 RPM |
| Speed (dual) | 3535 & 3505 RPM |
| Full-load current | 27.2 A |
| Current (dual) | 27.2 & 35 A |
| Nominal efficiency | 78.5% |
| Power factor | 76% |
| Service factor | 1.4 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | NO DESIGN CODE |
| KVA code | J |
| Duty | Continuous |
| Electrical type | Capacitor Start Induction Run |
| Starting method | Across The Line |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 184TZ |
| Frame size | 184 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 11.5 in |
| Enclosure | Drip Proof Air Over |
| IP rating | IP12 |
| Insulation class | F |
| Mounting | RIGID |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 3 in |
| Shaft type | Single Special Extension |
| C dimension | 15.88 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005033.09ME |
| Outline drawing | 035613-1250 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 17.94 × 13.06 × 12.88 in |
| Weight | 98.00 lb |
| Identification | |
| Manufacturer part / model | 184TCDW7615 |
| Catalog number | Z305A |
| UPC | 722856028440 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
