Marathon Electric Close-Coupled Pump Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182JM Frame, TEFC
Regular price
$1,247.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

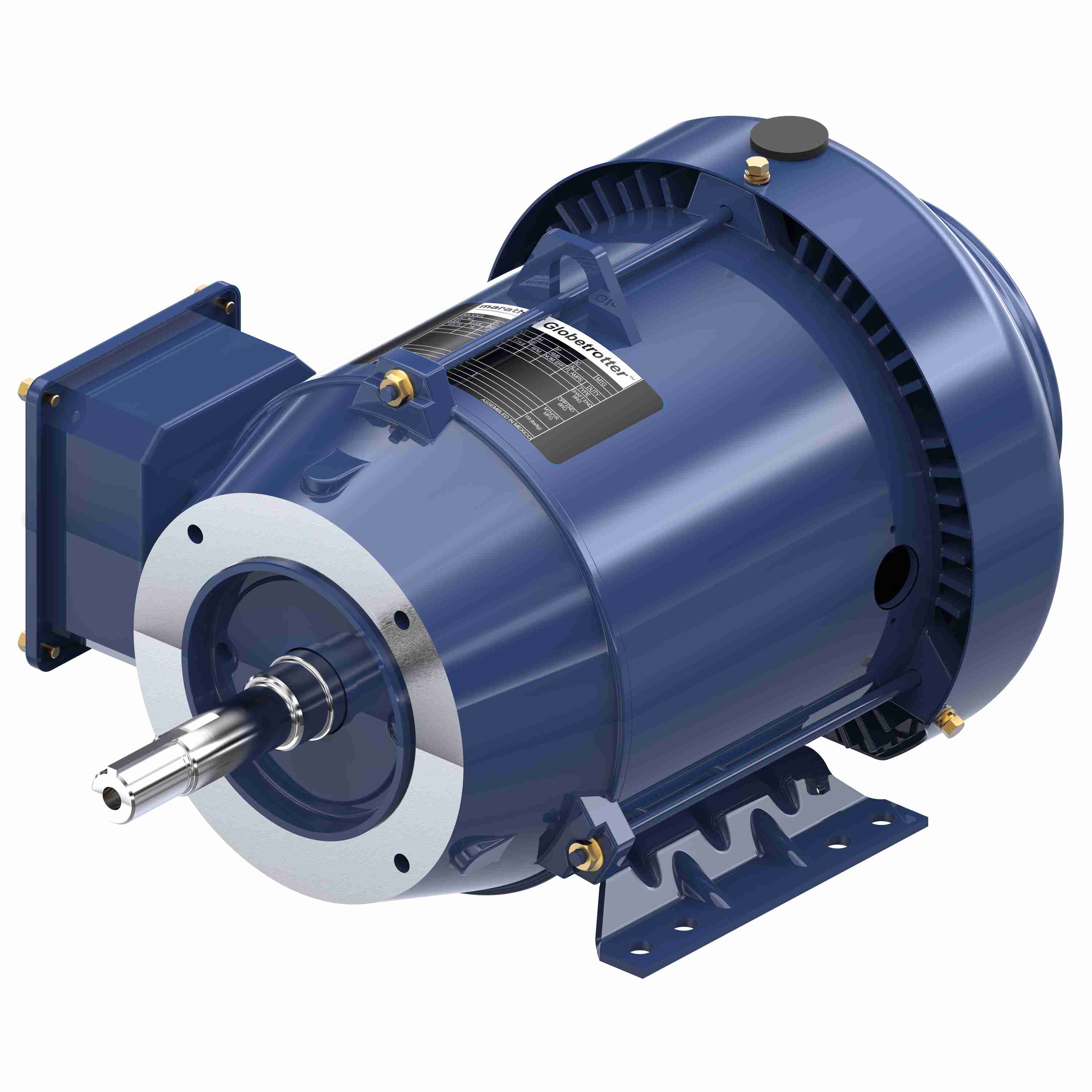

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182JM Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- IP55 enclosure on cast iron frames
- Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
Specifications
| Performance & Electrical | |
| Power | 3 HP |
| Power (dual rating) | 3 & 2 HP |
| Power | 2.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1765 RPM |
| Speed (dual) | 1765 & 1472 RPM |
| Full-load current | 8.6/4.3 A |
| Current (dual) | 8.6/4.3 & 7.6/3.8 A |
| Nominal efficiency | 89.5% |
| Power factor | 74.2% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | A |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 4.473 Ω |
| Frame & Mechanical | |
| Frame | 182JM |
| Frame size | 182 |
| Frame suffix | JM |
| Frame material | Rolled Steel |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.25 in |
| Shaft type | JM |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Listed |
| Hazardous location | DIVISION 2 T2B |
| Connection drawing | EE7308 |
| Outline drawing | SS600202-100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 20.40 × 15.75 × 12.83 in |
| Weight | 75.00 lb |
| Identification | |
| Manufacturer part / model | 182TTFBD6031 |
| Catalog number | GT3110A |
| UPC | 722856069115 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
