Marathon Electric General Purpose Motor, 2 & 1.50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 145T Frame, TEFC
Regular price
$774.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

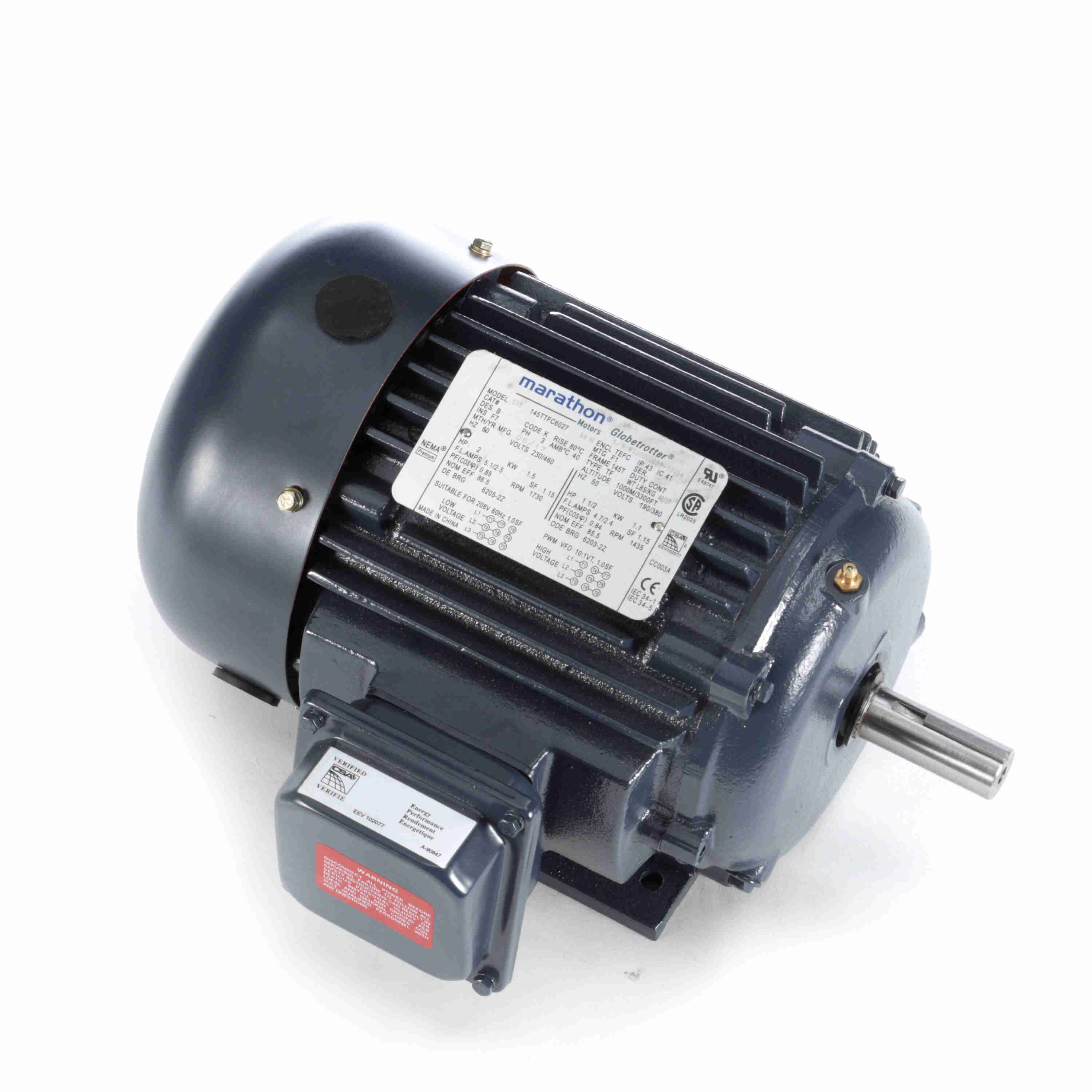

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 2 & 1.50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 145T Frame, TEFC
Features
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
- C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Specifications
| Performance & Electrical | |
| Power | 2 HP |
| Power (dual rating) | 2 & 1.50 HP |
| Power | 1.5 kW |
| Voltage | 208-230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1730 RPM |
| Speed (dual) | 1730 & 1435 RPM |
| Full-load current | 5.5-5.0/2.5 A |
| Current (dual) | 5.5-5/2.5 & 4.8/2.4 A |
| Nominal efficiency | 86.5% |
| Power factor | 85% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | K |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | ACROSS THE LINE |
| Frame & Mechanical | |
| Frame | 145T |
| Frame size | 145 |
| Frame suffix | T |
| Frame material | CAST IRON |
| Enclosure | TEFC |
| IP rating | IP43 |
| Insulation class | F7 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 7/8 in |
| Shaft extension | 2.25 in |
| Shaft type | T |
| C dimension | 14.2 in |
| Drive-end bearing | 6205 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6203 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | A-EE7308 |
| Outline drawing | SS620599-145T |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 14.96 × 12.79 × 9.80 in |
| Weight | 60.00 lb |
| Identification | |
| Manufacturer part / model | 145TTFC6027 |
| Catalog number | GT1007 |
| UPC | 722856049629 |
| Product line | Globetrotter® |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
