Marathon Electric Crop Dryer Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 & 1800 RPM, 215JM Frame, DP
Regular price
$2,712.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

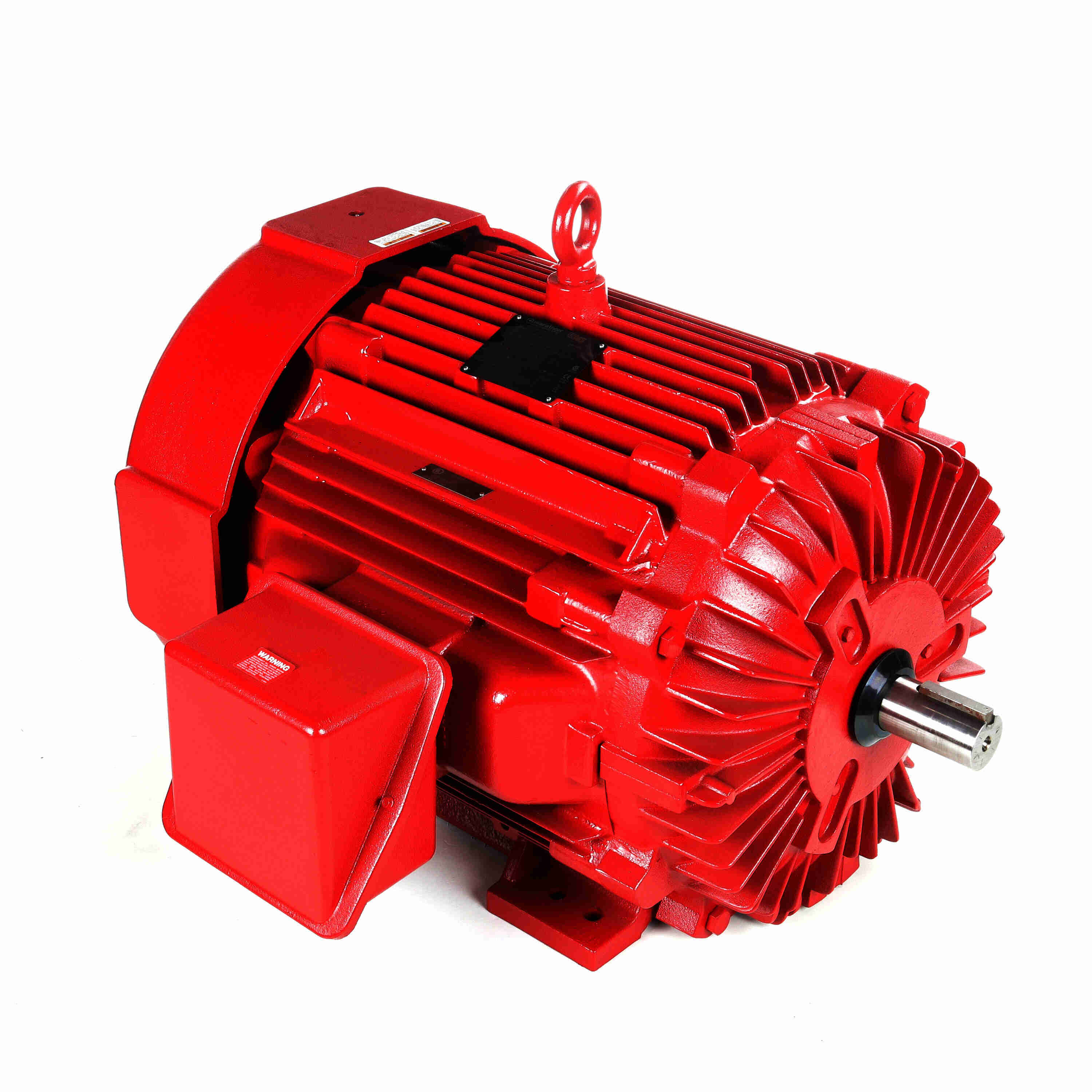

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crop Dryer Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 & 1800 RPM, 215JM Frame, DP
Features
- Cooling air exhausts at shaft end for maximum cooling
- Locked bearing shaft end
- Drip Cover kits available
- High efficiency copper windings
- Class F insulation
- UL and CSA recognized
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1745 RPM |
| Speed (dual) | 1745 RPM |
| Full-load current | 39.0 A |
| Current (dual) | 39.0 A |
| Nominal efficiency | 86.5% |
| Power factor | 96.4% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 215JM |
| Frame size | 215 |
| Frame suffix | JM |
| Frame material | Rolled Steel |
| Frame length | 12.4 in |
| Enclosure | Drip Proof |
| IP rating | IP12 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 4.5 in |
| Shaft type | JM |
| C dimension | 21.17 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005528.01 |
| Outline drawing | OL141431-1240 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.63 × 16.13 × 14.25 in |
| Weight | 147.00 lb |
| Identification | |
| Manufacturer part / model | 141431.00 |
| Catalog number | 141431.00 |
| UPC | 691720108338 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
