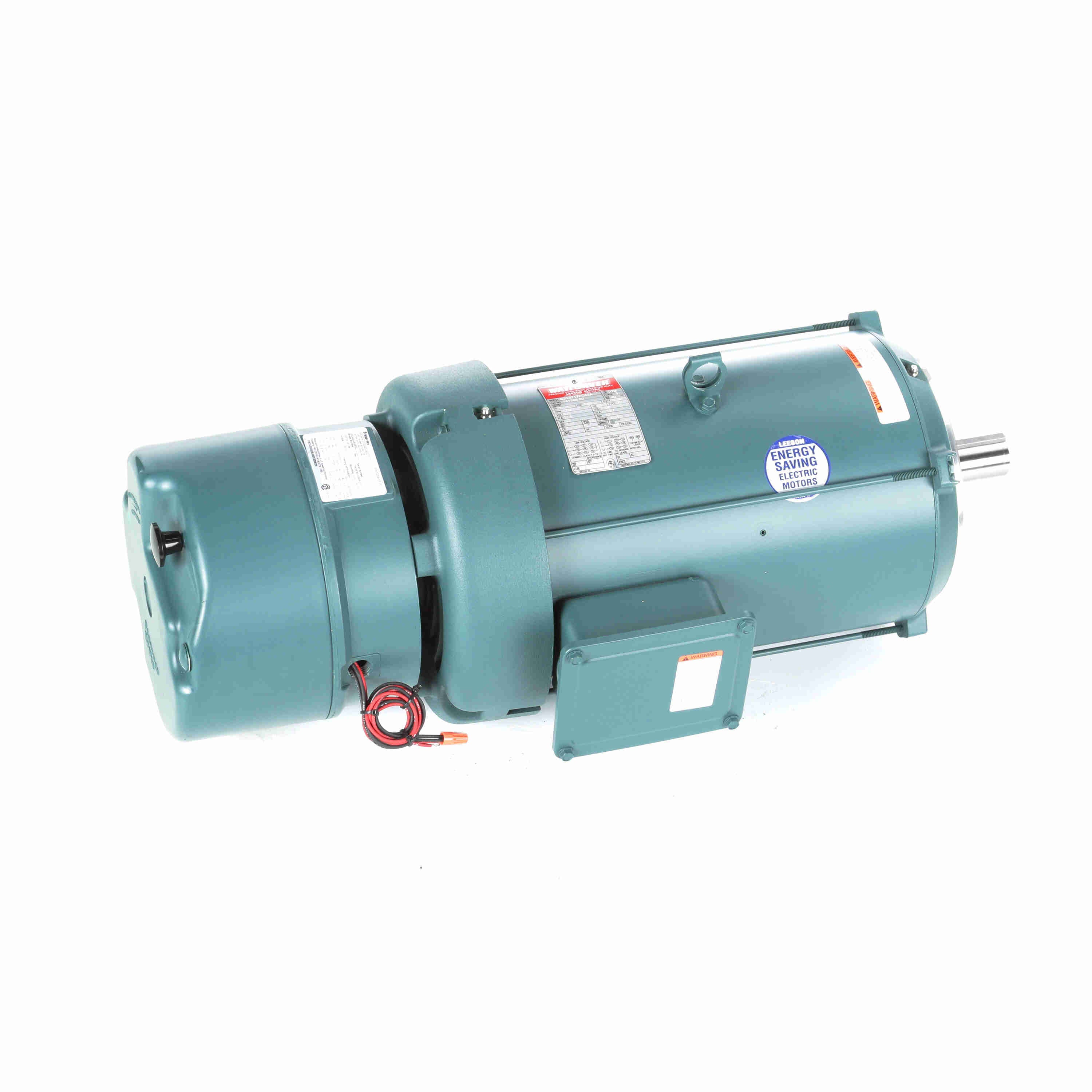

Marathon Electric Brake Motor, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 213TC Frame, TEFC
Regular price
$4,368.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Brake Motor, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 213TC Frame, TEFC
Features
- Fail-safe positive stop and holding brakes
- Load stops automatically when power is turned off
- Manual brake release designs
- Dual voltage brake coils
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7.50 HP |
| Power | 5.6 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1774 RPM |
| Speed (dual) | 1774 RPM |
| Full-load current | 21.4/10.7 A |
| Current (dual) | 21.4/10.7 A |
| Nominal efficiency | 91.7% |
| Power factor | 71.7% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | A |
| KVA code | H |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | .755 Ω |
| Frame & Mechanical | |
| Frame | 213TC |
| Frame size | 213 |
| Frame suffix | TC |
| Frame material | Rolled Steel |
| Frame length | 13. in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Round |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.38 in |
| Shaft type | T |
| C dimension | 29.00 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005010.15 |
| Outline drawing | 037631-1300 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 34.62 × 15.00 × 12.27 in |
| Weight | 205.00 lb |
| Identification | |
| Manufacturer part / model | 141308.00 |
| Catalog number | 141308.00 |
| UPC | 691720098936 |
| Product line | Globetrotter® |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
