Marathon Electric Crop Dryer Motor, 10 & 15 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 215TZ Frame, TEAO
Regular price
$2,812.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

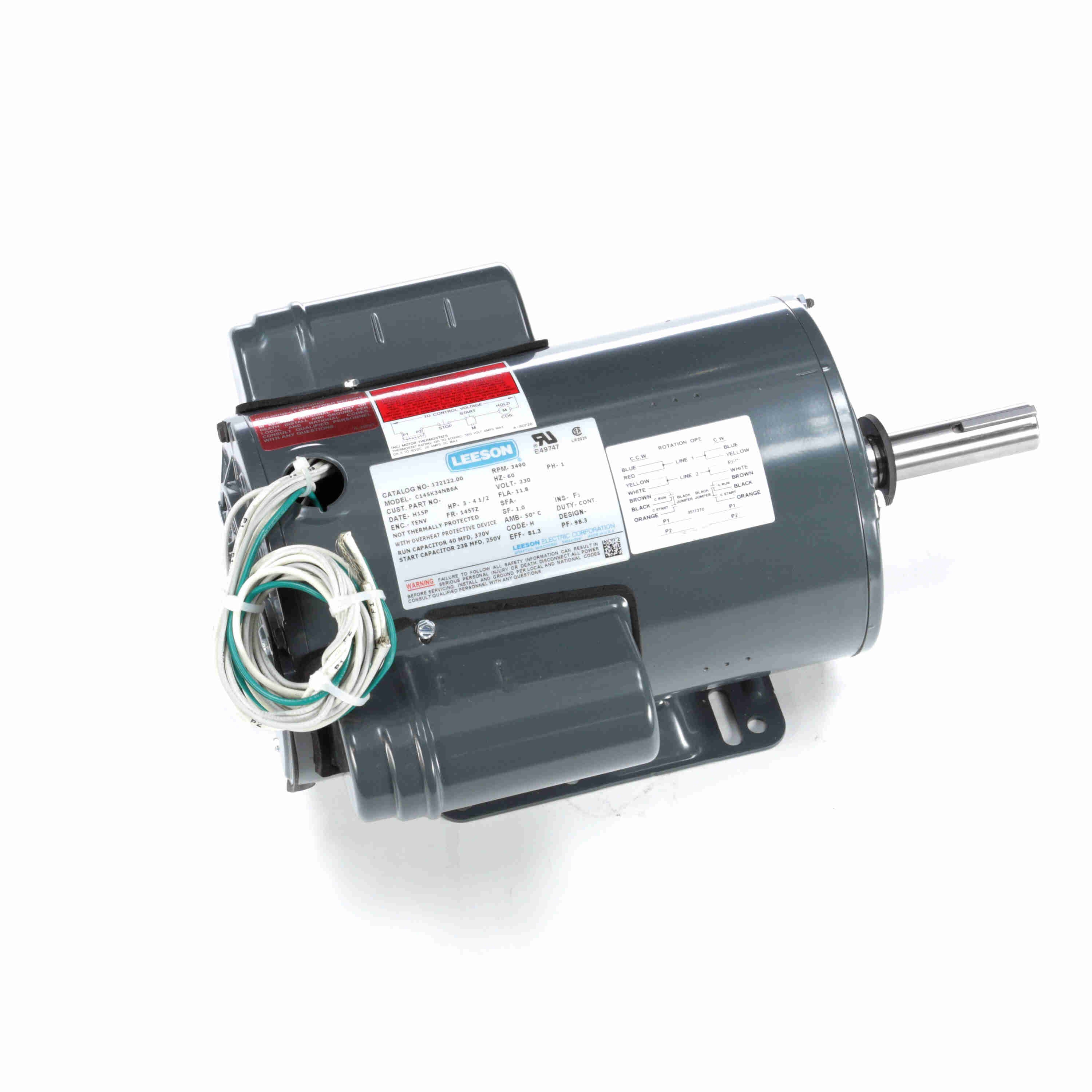

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crop Dryer Motor, 10 & 15 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 215TZ Frame, TEAO
Features
- Rolled steel construction
- Oversized sealed bearings
- Normally closed thermostat protected
- 50 degree C ambient temperature
- Grease fitting with relief
- Epoxy paint
- Double sealed ball bearings
- 1" longer shaft than NEMA
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 & 15 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3475 RPM |
| Speed (dual) | 3475 & 3475 RPM |
| Full-load current | 45.8 A |
| Current (dual) | 45.8 & 68.5 A |
| Nominal efficiency | 82.5% |
| Power factor | 87.8% |
| Service factor | 1.5 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | NO DESIGN CODE |
| KVA code | D |
| Duty | Continuous |
| Electrical type | Capacitor Start Induction Run |
| Starting method | Across The Line |
| Main winding resistance | .151 Ω |
| Frame & Mechanical | |
| Frame | 215TZ |
| Frame size | 215 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 11.15 in |
| Enclosure | Totally Enclosed Air Over |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F3 |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 3.75 in |
| Shaft type | Single Special Extension |
| C dimension | 18.17 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7090KL |
| Outline drawing | 038026-1115 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.19 × 16.50 × 14.00 in |
| Weight | 136.00 lb |
| Identification | |
| Manufacturer part / model | 141220.00 |
| Catalog number | 141220.00 |
| UPC | 691720103777 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
